SGMICRODatasheet (PDF)

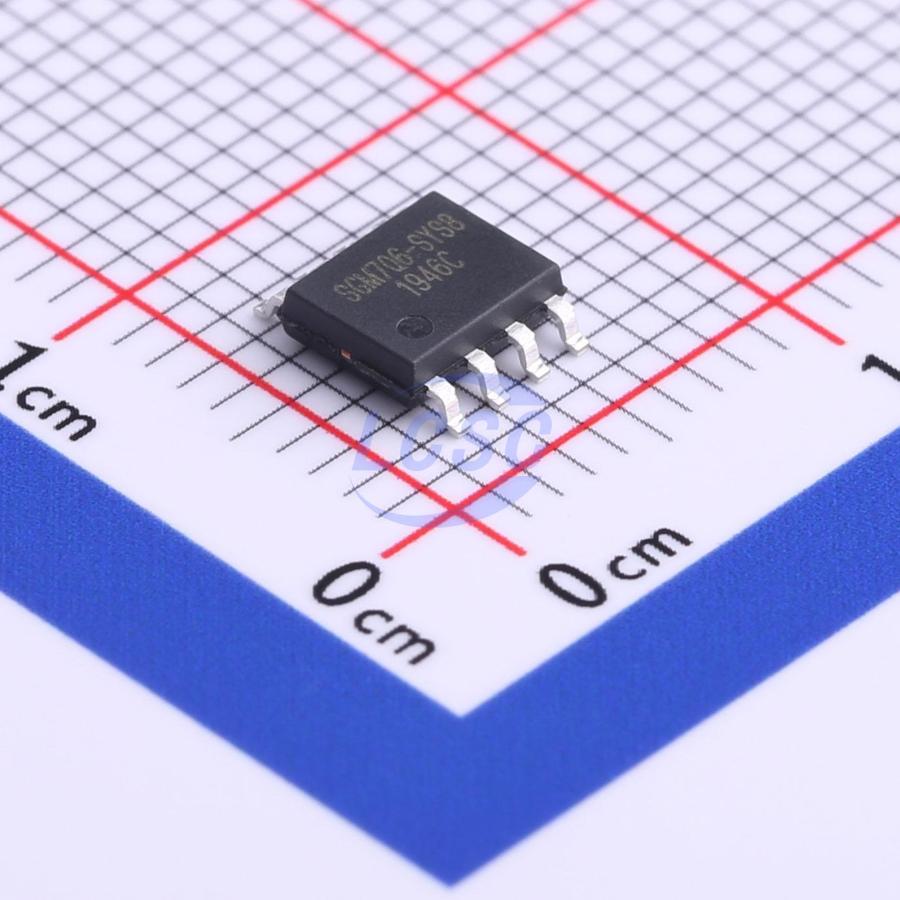

SGM706-SYS8G/TR
200ms Active Low 1V~5.5V 2 SOIC-8 Supervisors
SOIC-8RoHSActive
Low-Cost, Microprocessor Supervisory Circuit
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM706-SYS8G/TR
- Store part #
- C80062
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,682 in stock
#C80062
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.97 | ₹80.97 |
| 10+ | ₹62.26 | ₹622.60 |
| 30+ | ₹52.89 | ₹1,586.70 |
| 100+ | ₹43.54 | ₹4,354.00 |
1 × ₹80.97
₹80.97
excl. GST
₹95.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SGM706-SYS8G/TR
₹80.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Timeout
- 200ms
- output type
- Open-drain
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 50uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.197 g
Overview
The SGM706 microprocessor supervisory circuit reduces the complexity and number of components required to monitor power-supply and monitor microprocessor activity. It significantly improves system reliability and accuracy compared to separate ICs or discrete components.
Applications
- Computers
- Controllers
- Intelligent Instruments
- Automotive Systems
- Critical μP Power Monitoring
Key features
- The SGM706 provides power-supply monitoring circuitry that generates a reset output during power-up, power-down and brownout conditions.
- The reset output remains operational with VCC as low as 1V.
- Independent watchdog monitoring circuitry is also provided. This is activated if the watchdog input has not been toggled within 1.6 seconds.
- There is a 1.25V threshold detector for power-fail warning, low-battery detection, or monitoring an additional power supply.
- An active-low manual-reset input (MR) is also included.
- The SGM706 is available in Green SOIC-8 package.
- It operates over an ambient temperature range of -40°C to +85°C.
- Guaranteed RESET Valid at VCC = 1V
- 200ms Reset Pulse Width
- Debounced TTL/CMOS-Compatible Manual-Reset Input
- Independent Watchdog Timer (1.6sec) Timeout
- Voltage Monitor for Power-Fail or Low-Battery Warning
- -40°C to ±85°C Operating Temperature Range
- Green SOIC-8 Package
