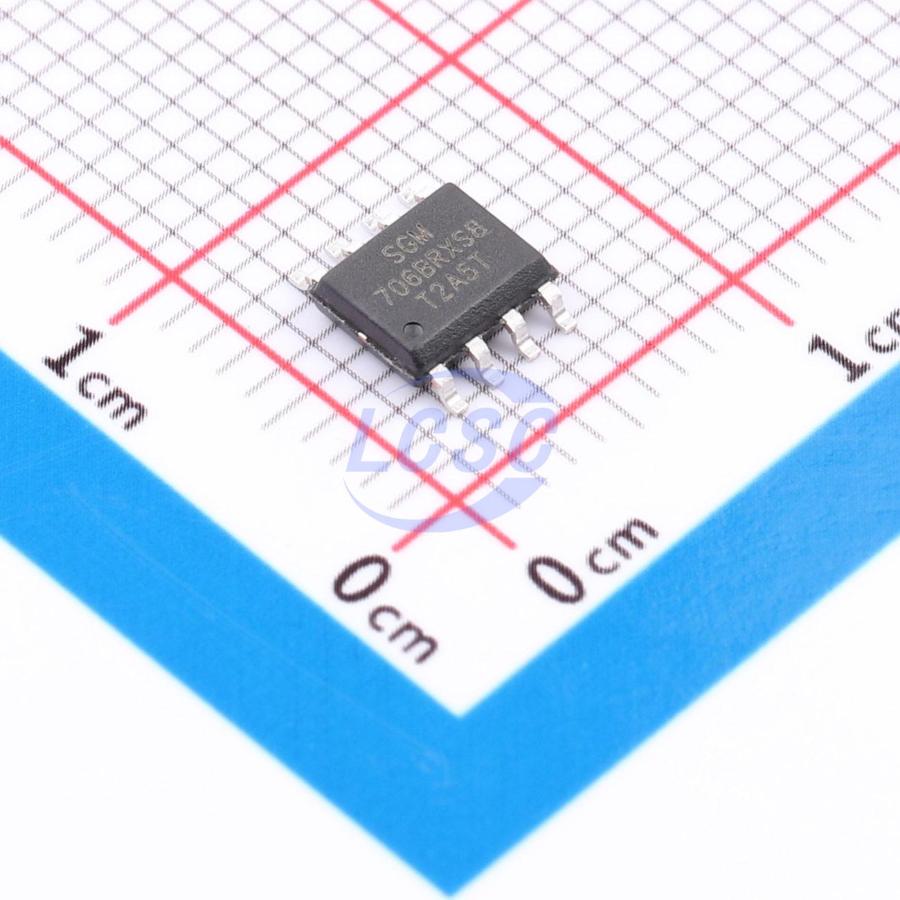

SGM706B-RXS8G/TR
1.6s Active Low 1V~5.5V 2 SOIC-8 Supervisors
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM706B-RXS8G/TR
- Store part #
- C699568
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,497 in stock
#C699568
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.39 | ₹96.39 |
| 10+ | ₹74.13 | ₹741.30 |
| 30+ | ₹62.90 | ₹1,887.00 |
| 100+ | ₹51.87 | ₹5,187.00 |
1 × ₹96.39
₹96.39
excl. GST
₹113.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SGM706B-RXS8G/TR
₹96.39 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Push-pull
- Reset Timeout
- 1.6s
- Reset Active Level
- Active Low
- standby current
- 600nA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
The SGM706B is an integrated microprocessor supervisory device. Compared to designs using discrete components or individual ICs, this integrated approach offers improved system reliability and accuracy. The SGM706B asserts a reset during power-up, power-down, and brownout conditions. The reset output remains valid even when VCC drops as low as 1V. It also features an active-low manual reset input (nMR). The SGM706B includes an independent watchdog circuit that triggers when the WDI input is not toggled within 1.6 seconds. Power failure detection, low battery monitoring, or additional supply supervision can be implemented using the SGM706B's 1.25V threshold detector. The SGM706B is available in Green UTDFN-1.5×1.5-8L, SOIC-8, and MSOP-8 packages, with an operating junction temperature range of -40°C to +125°C.
Applications
- Computers
- Battery-powered applications
- Portable devices
- Automotive equipment
- Security systems
Key features
- Ultra-low supply current: typical < 1μA
- Precision supply voltage monitoring: SGM706B-L at 4.63V; SGM706B-M at 4.38V; SGM706B-J at 4.0V; SGM706B-T at 3.08V; SGM706B-S at 2.93V; SGM706B-R at 2.63V
- Guaranteed nRESET assertion at VCC = 1V
- 200ms reset pulse width
- Debounced TTL/CMOS compatible
- Manual reset input
- 1.6s timeout watchdog timer
- Voltage monitoring for power failure or low battery warning
- Operating temperature range: -40℃ to +125℃
- Available in green UTDFN-1.5×1.5-8L, SOIC-8, and MSOP-8 packages
