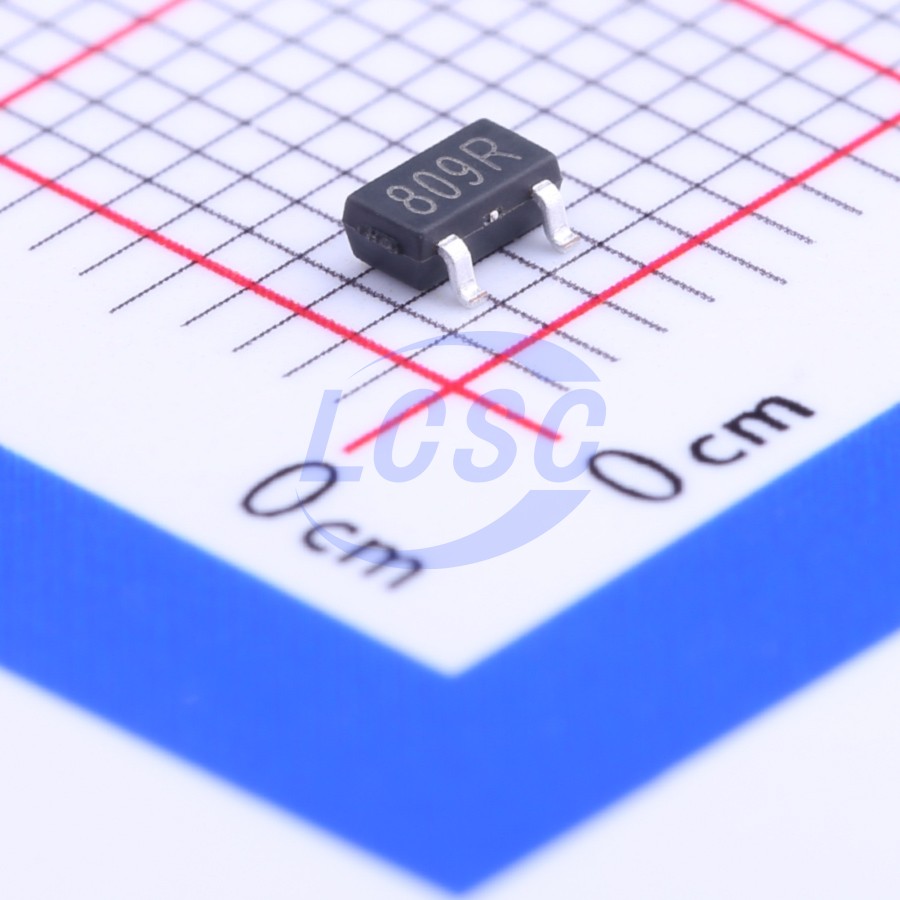

SGM809-RXN3/TR
240ms Active Low 1.2V~5.5V 1 SOT-23 Supervisors RoHS
Microprocessor Supervisory Circuit in 3-Pin SOT-23
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM809-RXN3/TR
- Store part #
- C125149
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,245 in stock
#C125149
Stock & price checked 15 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.32 | ₹171.60 |
| 50+ | ₹25.63 | ₹1,281.50 |
| 150+ | ₹21.90 | ₹3,285.00 |
| 500+ | ₹17.25 | ₹8,625.00 |
5 × ₹34.32
₹171.60
excl. GST
₹202.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM809-RXN3/TR
₹171.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 13uA
- Voltage - Supply
- 1.2V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The SGM803/SGM809/SGM810 supervisory circuits monitor the power supply voltage in microprocessor and digital systems. They provide a reset output during power-up, power-down and brownout conditions. On power-up, an internal timer holds reset asserted for 240ms. This holds the microprocessor in a reset state until conditions have stabilized. The RESET output remains operational with VCC as low as 1V. The SGM803/ SGM809 provides an active low reset signal (RESET ) while the SGM810 provides an active high signal (RESET) output. The SGM809/SGM810 has push-pull outputs, whereas the SGM803 has an open-drain output, which requires an external pull-up resistor. Eight reset threshold voltage options are available suitable for monitoring 1.8V, 2.5V, 3V, 3.3V and 5V supply voltages. The reset comparator features built-in glitch immunity, making it immune to fast transients on VCC. The low supply current of typically 13μA makes the SGM803/SGM809/SGM810 ideal for use in portable, battery operated equipment. All are specified over the extended -40°C to +125°C temperature range.
Applications
- Microprocessor Systems
- Controllers
- Intelligent Instruments
- Automotive Systems
- Safety Systems
- Portable Instruments
Key features
- Precision Voltage Monitor: 1.8V, 2.5V, 3V, 3.3V, 5V Options
- Superior Upgrade for MAX803/MAX809/MAX810 and ADM803/ADM809/ADM810
- Fully Specified over Temperature
- Low Power Consumption (13μA TYP)
- Reset Assertion Down to 1VCC 150ms Min Power-On Reset
- Open-Drain RESET Output (SGM803)
- Push-Pull RESET Output (SGM809)
- Push-Pull RESET Output (SGM810)
- -40°C to +125°C Operating Temperature Range
- Small Packaging
- SGM803 Available in SOT-23-3 and SOT-23
- SGM809 Available in SOT-23-3 and SOT-23
- SGM810 Available in SOT-23-3 and SOT-23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGM803-RXN3L/TR#C5152590SGMICRO · SOT-23 | SGMICRO | SOT-23 | 3,985 | ₹27.54 · 3,985 in stock | View |
 | SGM809B-RXN3LG/TR#C699615SGMICRO · SOT-23 | SGMICRO | SOT-23 | 3,045 | ₹27.54 · 3,045 in stock | View |
| SGM803B-RXN3LG/TR#C699595SGMICRO · SOT-23 | SGMICRO | SOT-23 | On request | Price on request | Quote | |
