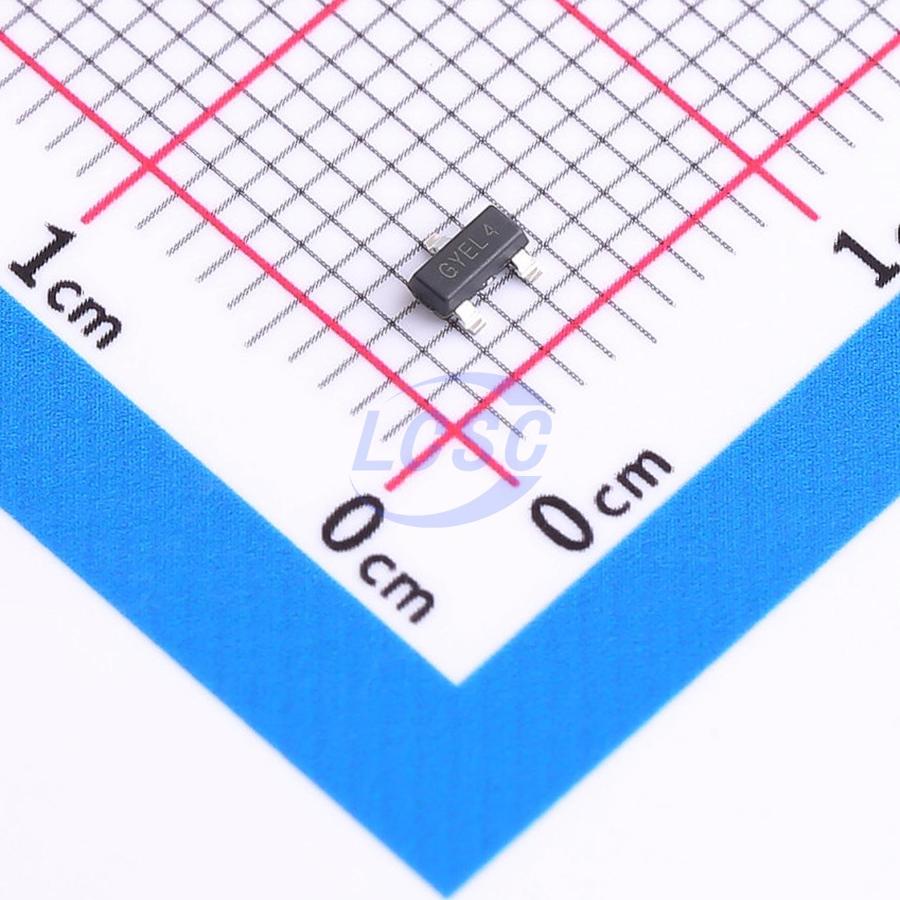

SGM809B-SXN3LG/TR
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
Low Power Microprocessor Supervisory Circuit in 3-Pin SOT-23
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM809B-SXN3LG/TR
- Store part #
- C699617
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
915 in stock
#C699617
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.54 | ₹137.70 |
| 50+ | ₹20.56 | ₹1,028.00 |
| 150+ | ₹17.58 | ₹2,637.00 |
| 500+ | ₹13.85 | ₹6,925.00 |
5 × ₹27.54
₹137.70
excl. GST
₹162.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM809B-SXN3LG/TR
₹137.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 300nA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The SGM803B/SGM809B/SGM810B supervisory circuits monitor the power supply voltage in microprocessor and digital systems. They provide a reset output during power-up, power-down and brownout conditions. On power-up, an internal timer holds reset asserted for 240ms. This holds the microprocessor in a reset state until conditions have stabilized. The nRESET output remains operational with VCC as low as 1V. The SGM803B and SGM809B provide an active low reset signal (nRESET) while the SGM810B provides an active high signal (RESET) output. The SGM809B/ SGM810B have push-pull outputs, whereas the SGM803B has an open-drain output, which requires an external pull-up resistor. Five reset threshold voltage options are available, suitable for monitoring 3V, 3.3V and 5V supply voltages. The reset comparator features built-in glitch immunity, making it immune to fast transients on VCC. The low supply current of typically 300nA makes the SGM803B/SGM809B/SGM810B ideal for use in portable, battery operated equipment. All are specified over the extended -40°C to +125°C temperature range.
Applications
- Microprocessor Systems
- Controllers
- Intelligent Instruments
- Automotive Systems
- Safety Systems
- Portable Instruments
Key features
- Precision Voltage Monitor: 3V, 3.3V and 5V Options
- Superior Upgrade for MAX803/MAX809/MAX810 and ADM803/ADM809/ADM810
- Fully Specified over Temperature
- VCC Transient Immunity
- Low Power Consumption: 300nA (TYP)
- Reset Assertion Down to 1V VCC
- 150ms Power-On Reset (MIN)
- Open-Drain nRESET Output (SGM803B)
- Push-Pull nRESET Output (SGM809B)
- Push-Pull RESET Output (SGM810B)
- -40°C to +125°C Operating Temperature Range
- Small Packaging
- SGM803B Available in SOT-23-3 and SOT-23
- SGM809B Available in SOT-23-3 and SOT-23
- SGM810B Available in SOT-23-3 and SOT-23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGM809-SXN3L/TR#C49651SGMICRO · SOT-23 | SGMICRO | SOT-23 | 7,235 | ₹27.58 · 7,235 in stock | View |
