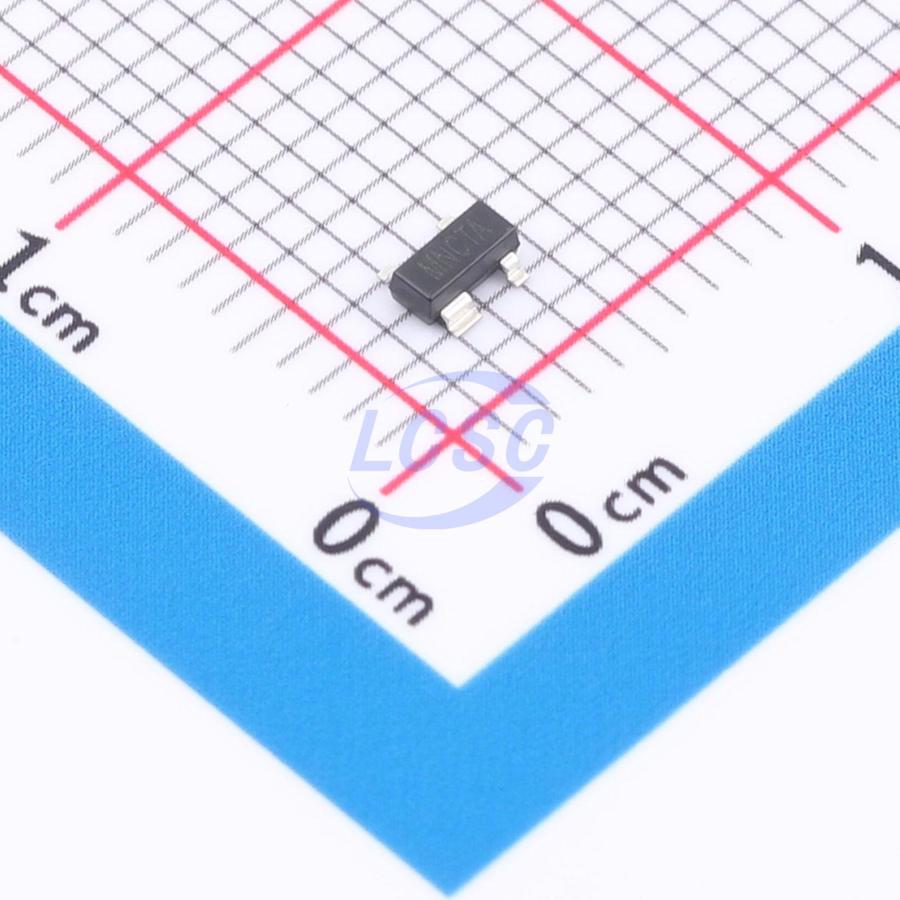

SGM811B-RXKA4G/TR
200ms Manual reset input Active Low 1V~5.5V 1 SOT-143 Supervisors
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM811B-RXKA4G/TR
- Store part #
- C5152327
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,330 in stock
#C5152327
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.36 | ₹241.80 |
| 50+ | ₹36.00 | ₹1,800.00 |
| 150+ | ₹30.80 | ₹4,620.00 |
| 500+ | ₹24.29 | ₹12,145.00 |
5 × ₹48.36
₹241.80
excl. GST
₹285.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM811B-RXKA4G/TR
₹241.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- output type
- Open-drain
- Function
- Manual reset input
- Reset Active Level
- Active Low
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
SGM811B and SGM812B are integrated microprocessor supervisory devices that assert reset during power-up, power-down, and brownout conditions. The reset output remains functional with VCC as low as 1V. During power-up, an internal timer holds reset asserted for 200ms, keeping the microprocessor in reset until conditions stabilize. The SGM811B features an active-low nRESET output, while the SGM812B features an active-high RESET output. These devices offer three reset threshold voltage options for 3V and 3.3V voltage monitoring. A manual reset (nMR) input is also provided to minimize damage when the device loses control or becomes locked up. The SGM811B and SGM812B are available in a green SOT-143 package and operate over a junction temperature range of -40°C to +125°C.
Applications
- Computers
- Battery-powered applications
- Portable devices
- Automotive equipment
- Security systems
Key features
- Superior upgrade to MAX811/MAX812 and ADM811/ADM812
- High-accuracy fixed threshold options: 3V and 3.3V
- Low supply current: < 1μA (typical)
- 200ms (typical) power-on reset pulse width
- Reset output options:
- Active-low nRESET output: SGM811B
- Active-high RESET output: SGM812B
- Manual reset input
- Reset valid down to Vcc = 1V
- -40°C to +125°C operating temperature range
- Green SOT-143 package
