VISHAYDatasheet (PDF)

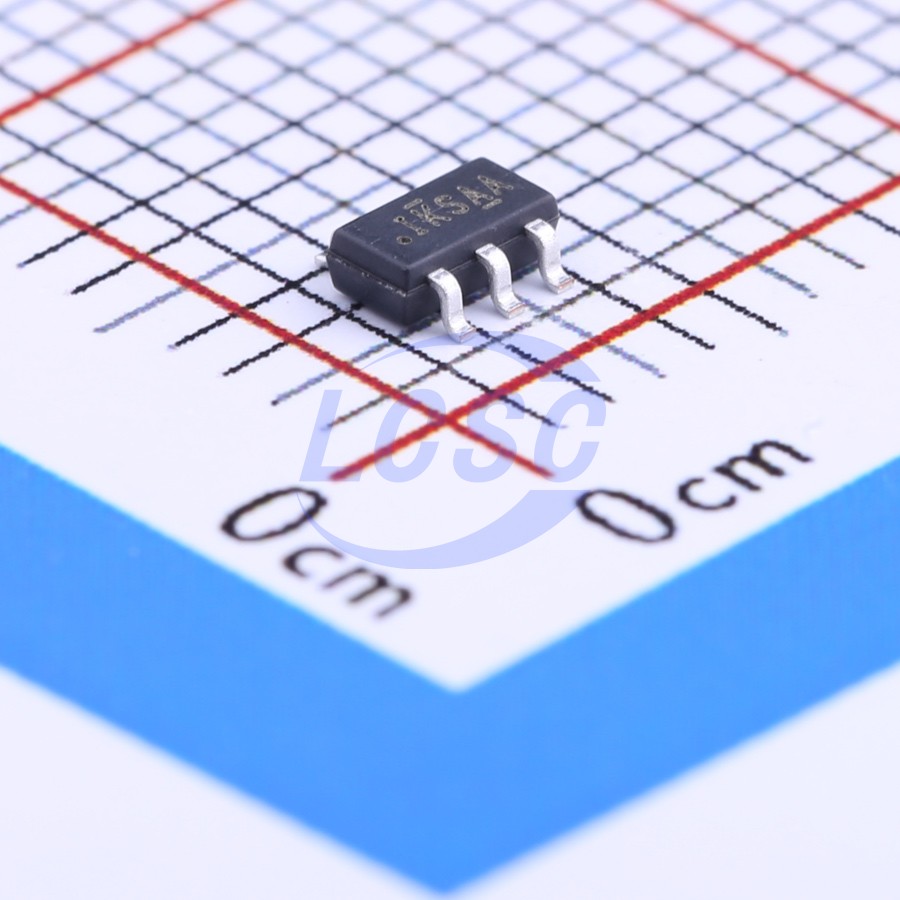

SI3865DDV-T1-GE3
1 2.8A Active High High Side Switch TSOP-6-1.5mm Power Distribution Switches, Load Drivers RoHS
TSOP-6-1.5mmROHS3 CompliantActive
Load Switch with Level-Shift
- Manufacturer
- VISHAY
- Manufacturer part #
- SI3865DDV-T1-GE3
- Store part #
- C141534
- Package / case
- TSOP-6-1.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C141534
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.06 | ₹98.06 |
| 10+ | ₹72.69 | ₹726.90 |
| 30+ | ₹61.84 | ₹1,855.20 |
| 100+ | ₹48.17 | ₹4,817.00 |
| 500+ | ₹42.31 | ₹21,155.00 |
| 1,000+ | ₹38.62 | ₹38,620.00 |
1 × ₹98.06
₹98.06
excl. GST
₹115.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI3865DDV-T1-GE3
₹98.06 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Features
- ESD protection
- number of channels
- 1
- Maximum Continuous Current
- 2.8A
- Control Input Logic
- Active High
- RDS(on)
- 45mΩ
- Operating Voltage
- 1.5V~12V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The Si3865DDV includes a p- and n-channel MOSFET in a single TSOP-6 package. The low on-resistance p -channel TrenchFET is tailored for use as a load switch. The n-channel, with an external resistor, can be used as a level-shift to drive the p-channel load-switch. The n-channel MOSFET has internal ESD protection and can be driven by logic signals as low as 1.8 V. The Si3865DDV operates on supply lines from 1.5 V to 12 V, and can drive loads up to 2.8 A.
Applications
- Load switch with level-shift gate drive
- Slew-rate control
- Portable / consumer devices
Key features
- Low RDS(on) TrenchFET: 1.5 V rated
- 1.5 V to 12 V input
- 1.8 V to 8 V logic level control
- RoHS COMPLIANT
- Low profile, small footprint TSOP-6 package
- 2100 V ESD protection on input switch, VON/OFF FREE
- Adjustable slew-rate
