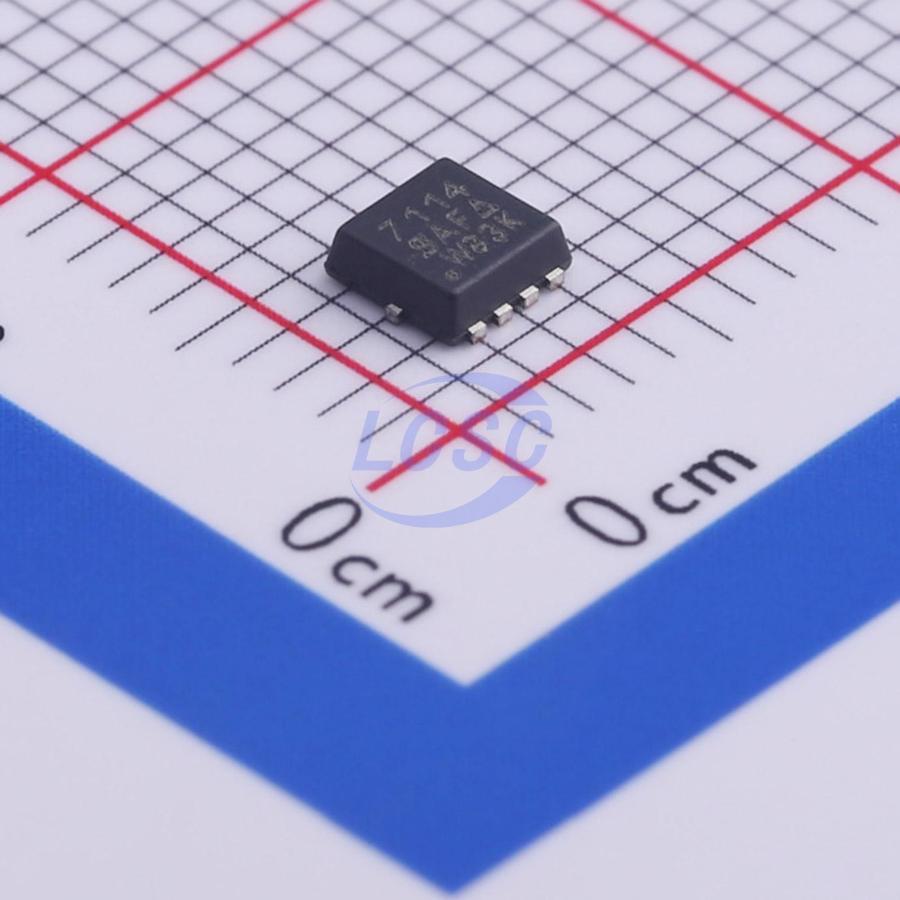

SI7114DN-T1-E3
N-Channel 30V 11.7A 1.5W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 30V 11.7A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7114DN-T1-E3
- Store part #
- C467907
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
920 in stock
#C467907
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹204.48 | ₹204.48 |
| 10+ | ₹169.83 | ₹1,698.30 |
| 30+ | ₹150.89 | ₹4,526.70 |
| 100+ | ₹129.36 | ₹12,936.00 |
| 500+ | ₹119.89 | ₹59,945.00 |
| 1,000+ | ₹115.59 | ₹1,15,590.00 |
1 × ₹204.48
₹204.48
excl. GST
₹241.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7114DN-T1-E3
₹204.48 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 11.7A
- Pd - Power Dissipation
- 1.5W
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
N-Channel 30-V (D-S) Fast Switching MOSFET
Applications
- Synchronous Rectification
Key features
- Halogen-free Option Available
- TrenchFET Gen II Power MOSFET
- New Low Thermal Resistance PowerPAK Package with Low 1.07 mm Profile
- 100 % Rg Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBB3058#C701037HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 15 | ₹21.62 · 15 in stock | View |
 | FDMC7678-L701#C3288672onsemi · MLP-8(3.3x3.3) | onsemi | MLP-8(3.3x3.3) | 19 | ₹259.65 · 19 in stock | View |
 | MX4007ALR#C22468155Wuxi Maxinmicro · PDFN3333-8L | Wuxi Maxinmicro | PDFN3333-8L | 4,485 | ₹14.58 · 4,485 in stock | View |
 | FH3040G6#C2929017XIN FEI HONG · PDFN3.3x3.3-8L | XIN FEI HONG | PDFN3.3x3.3-8L | 5,155 | ₹10.20 · 5,155 in stock | View |
 | HKTQ50N03#C5364300Guangdong Hottech · PDFN3333-8 | Guangdong Hottech | PDFN3333-8 | 4,325 | ₹17.73 · 4,325 in stock | View |
