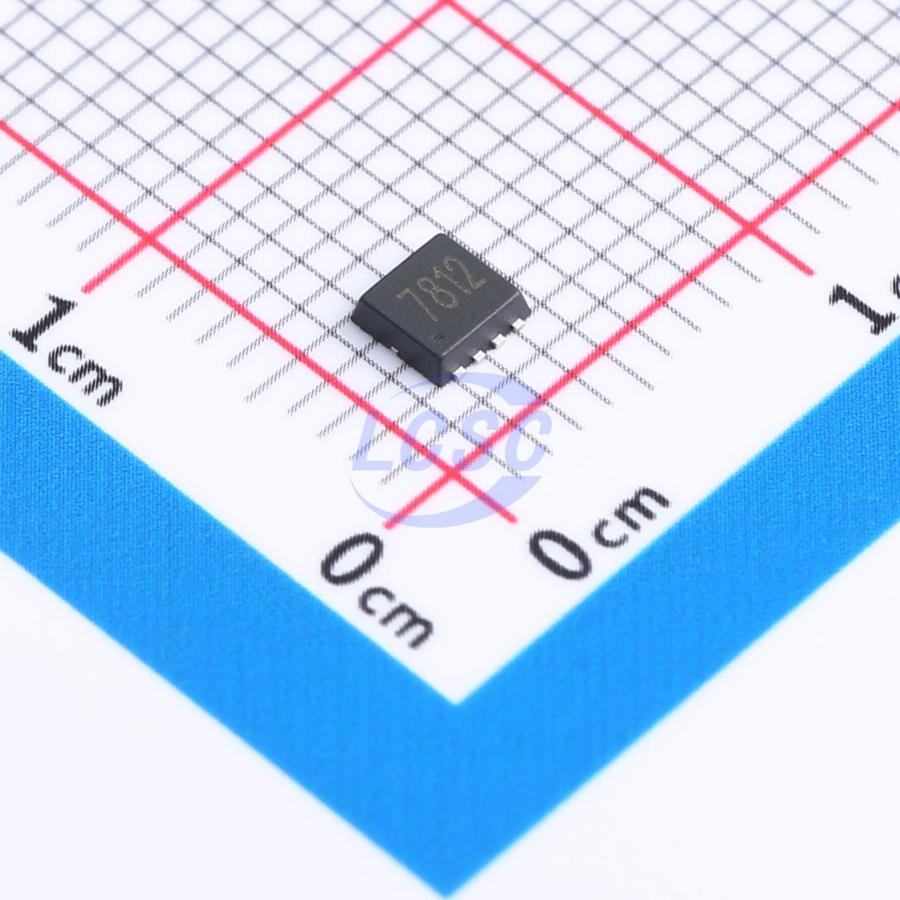

SI7812DN-VB
N-Channel 100V 35.3A 52W Surface Mount QFN-8L(3x3)
QFN-8L(3x3)RoHSActive
MOSFET N-CH 100V 35.3A QFN-8L(3x3)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI7812DN-VB
- Store part #
- C19711377
- Package / case
- QFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C19711377
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.36 | ₹164.36 |
| 10+ | ₹135.82 | ₹1,358.20 |
| 30+ | ₹120.38 | ₹3,611.40 |
| 100+ | ₹102.56 | ₹10,256.00 |
| 500+ | ₹94.85 | ₹47,425.00 |
| 1,000+ | ₹91.19 | ₹91,190.00 |
1 × ₹164.36
₹164.36
excl. GST
₹193.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SI7812DN-VB
₹164.36 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 132pF
- Current - Continuous Drain(Id)
- 35.3A
- Ciss-Input Capacitance
- 1.47nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 11.2pF
- RDS(on)
- 17.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Applications
- Synchronous Rectification
- Primary-Side Switch
- DC/DC Converter
- Motor Drive Switch
- Battery and Load Switch
- Industrial Applications
Key features
- Trench 4th generation power MOSFET
- Ultra-low RDS - Qg figure of merit (FOM)
- Optimized for lowest RDS - Qoss FOM
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIS890DN-T1-GE3-VB#C22396009VBsemi Elec · QFN-8(3x3) | VBsemi Elec | QFN-8(3x3) | 10 | ₹167.84 · 10 in stock | View |
