VBsemi ElecDatasheet (PDF)

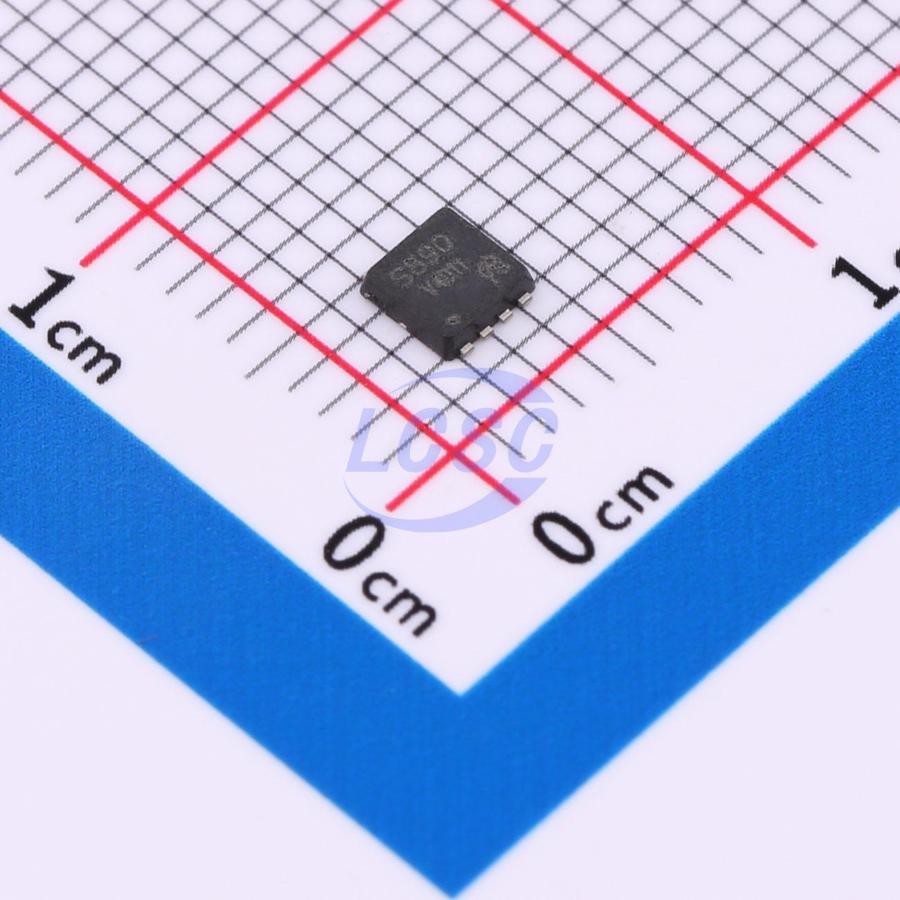

SIS890DN-T1-GE3-VB
N-Channel 100V 35.3A 52W Surface Mount QFN-8(3x3)
QFN-8(3x3)RoHSActive
MOSFET N-CH 100V 35.3A QFN-8(3x3)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SIS890DN-T1-GE3-VB
- Store part #
- C22396009
- Package / case
- QFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22396009
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.84 | ₹167.84 |
| 10+ | ₹140.11 | ₹1,401.10 |
| 30+ | ₹124.77 | ₹3,743.10 |
| 100+ | ₹107.55 | ₹10,755.00 |
| 500+ | ₹99.78 | ₹49,890.00 |
| 1,000+ | ₹96.42 | ₹96,420.00 |
1 × ₹167.84
₹167.84
excl. GST
₹198.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIS890DN-T1-GE3-VB
₹167.84 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 132pF
- Current - Continuous Drain(Id)
- 35.3A
- Pd - Power Dissipation
- 52W
- RDS(on)
- 20.5mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converter
- Motor drive switch
- Battery and load switch
- Industrial
Key features
- TrenchFET Gen IV power MOSFET
- Very low RDS - Qg figure - of - merit (FOM)
- Tuned for the lowest RDS - Qoss FOM
- 100% Rg and UIS tested
- RoHS COMPLIANT
- HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7812DN-VB#C19711377VBsemi Elec · QFN-8L(3x3) | VBsemi Elec | QFN-8L(3x3) | 48 | ₹164.36 · 48 in stock | View |
