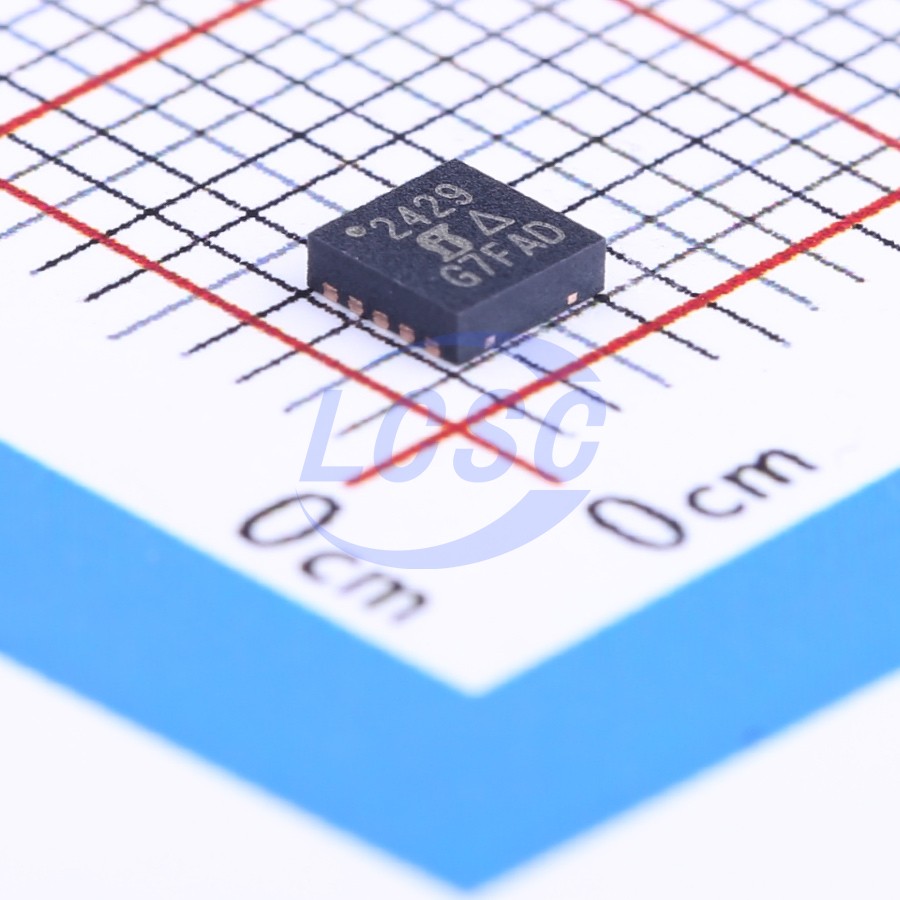

SIP32429DN-T1-GE4

SiP32419 and SiP32429 are load switches that integrate multiple control features that simplify the design and increase the reliability of the circuitry connected to the switch. Both devices are 56 mΩ switches designed to operate in the 6V to 28V range. An internally generated gate drive voltage ensures good RON linearity over the input voltage operating range. The SiP32419 and SiP32429 have a slew rate control circuit that controls the switch turn-on time to the value set by an external capacitor. After soft start, an over-current protection circuit (OCP) continuously monitors the current through the load switch, and controls the switch impedance to limit the current to the level programmed by an external resistor. If the over-current condition persists for more than 7 ms, the switch shuts off automatically. The SiP32419 and SiP32429 has an over temperature protection circuit (OTP) which will shut the switch off if the junction temperature exceeds about 135 °C. The OTP circuit will release the switch when the temperature has decreased by about 40 °C of hysteresis. When an OCP or an OTP fault condition is detected the FLG pin is pulled low. For the SiP32429, the fault flag will release 150 ms after the fault condition is cleared, and the switch will automatically turn on at the programmed slew rate. For the SiP32419, the switch will remain off and the fault flag will remain on. The switch will be reset by toggling either control signal on EN pin or the input power if it is not under over temperature fault condition. SiP32419 and SiP32429 are available in a space efficient DFN10 3 mm×3 mm package.

Applications

• Personal computers
• Lighting
• Flat panel displays
• Game consoles
• Industrial
• Network communication
• Data storage

Key features

• 6 V to 28V operation
• Programmable soft start
• RoHS COMPLIANT
• Programmable current limit
• Over temperature protection
• HALOGEN FREE
• ON resistance 56 mΩ
• Power good, when VOUT reaches 90% of VIN
• Fault flag
• Under voltage lockout: 4.8 V / 5.4 V (typ. / max.)
• Package: DFN10 3 mm x 3 mm
• SiP32429 will turn OFF the switch under fault conditions, and re-try to turn on through the full soft start procedure 150 ms after the switch is off if there is no OT fault.
• SiP32419 will turn OFF the switch under fault conditions and remain OFF. The switch can be reset by toggling either signal on EN pin or the input power if it is not under over temperature fault condition.
