VISHAY

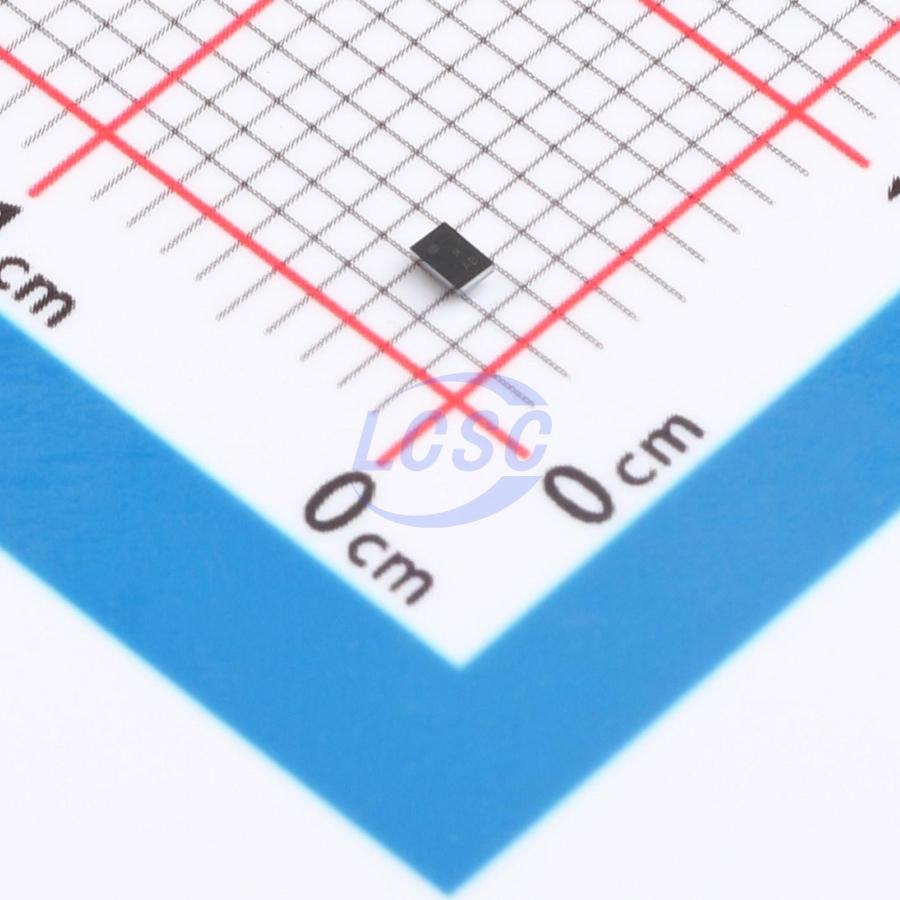

SIP32459DB-T2-GE1

1 Active Low 3A High Side Switch WLCSP-6(1x1.5) Power Distribution Switches, Load Drivers RoHS

WLCSP-6(1x1.5)ROHS3 CompliantActive

20 mΩ, Slew Rate Controlled High Side Load Switch

Manufacturer: VISHAY
Manufacturer part #: SIP32459DB-T2-GE1
Store part #: C727471
Package / case: WLCSP-6(1x1.5)
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,105 in stock

#C727471

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹123.82	₹123.82
10+	₹99.49	₹994.90
30+	₹87.54	₹2,626.20
100+	₹75.38	₹7,538.00
500+	₹68.21	₹34,105.00
1,000+	₹64.52	₹64,520.00

Quantity (min 1)

1 × ₹123.82

₹123.82

excl. GST

₹146.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SIP32459DB-T2-GE1

₹123.82 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Features: Soft-start;Output discharge function;Integrated charge pump
number of channels: 1
Control Input Logic: Active Low
Maximum Continuous Current: 3A
RDS(on): 20mΩ
Operating Voltage: 1.5V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.052 g

Overview

SiP32458 and SiP32459 are slew rate controlled integrated high side load switches that operate in the input voltage range from 1.5 V to 5.5 V. SiP32458 and SiP32459 are of p-channel MOSFET switching element with integrated gate pump that provides 20 mΩ switch on resistance over a wide input voltage range. These devices have low voltage logic control threshold that can interface with low voltage control I/O directly without extra level shift or driver. A 2.8 MΩ pulldown resistor is integrated at logic control EN pin. The slow slew rate of SiP32458 and SiP32459 in the range of 3 ms limits the in-rush current and minimized the switching noise. The SiP32458 features a reverse current blocking capability while the SiP32459 features an integrated output discharge switch. Both SiP32458 and SiP32459 are available in compact wafer level WCSP package, WCSP6 1 mm x 1.5 mm with 0.5 mm pitch. SiP32458 and SiP32459 are p-channel power MOSFET designed as high side load switches. They incorporate a negative charge pump at the gate to keep the gate to source voltage high when turned on therefore keep the on resistance low at lower input voltage range. SiP32458 and SiP32459 are designed with slow slew rate to minimize the inrush current during turn on. The SiP32458 has a reverse blocking circuit to prevent the current from going back to the input in case the output voltage is higher than the input voltage. The SiP32459 has an output pulldown resistor to discharge the output capacitance when the device is off.

Applications

Battery operated devices
Smart phones
GPS and PMP
Computer
Medical and healthcare equipment
Industrial and instrument
Cellular phones and portable media players
Game console

Key features

Low input voltage, 1.5 V to 5.5 V
Low Rₒₙ, 20 mΩ typical at 5 V
Slew rate control
RoHS COMPLIANT
Compatible with 1.2 V logic
HALOGEN FREE
Reverse current blocking when disabled Available (SiP32458, without output discharge switch)
Integrated output discharge switch (SiP32459 only)
Integrated pull down resistor at EN pin
6 bumps WCSP package
