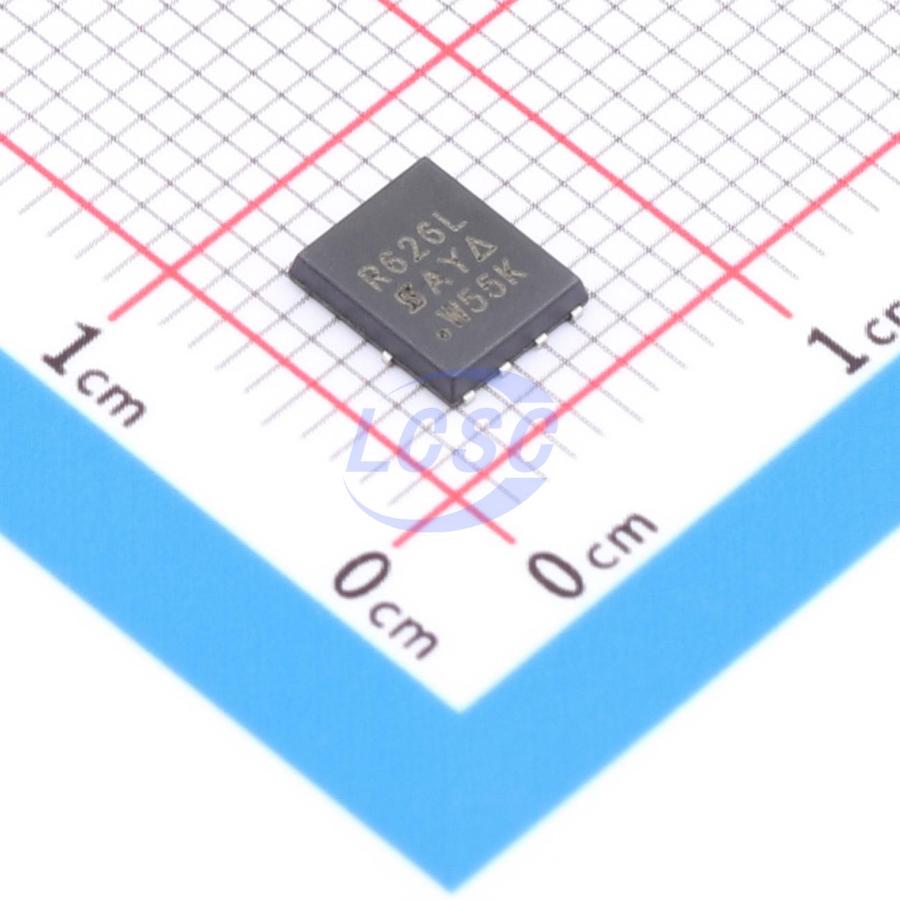

SIR626LDP-T1-RE3
N-Channel 60V 186A 6.25W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 60V 186A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR626LDP-T1-RE3
- Store part #
- C6228287
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C6228287
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹405.27 | ₹405.27 |
| 10+ | ₹339.88 | ₹3,398.80 |
| 30+ | ₹299.10 | ₹8,973.00 |
| 100+ | ₹257.24 | ₹25,724.00 |
| 500+ | ₹238.29 | ₹1,19,145.00 |
| 1,000+ | ₹230.00 | ₹2,30,000.00 |
1 × ₹405.27
₹405.27
excl. GST
₹478.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR626LDP-T1-RE3
₹405.27 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 186A
- Ciss-Input Capacitance
- 5.9nF
- Pd - Power Dissipation
- 6.25W
- Reverse Transfer Capacitance (Crss)
- 89pF
- RDS(on)
- 1.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 41nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converter
- Solar micro inverter
- Motor drive switch
- Battery and load switch
- Industrial
Key features
- RoHS COMPLIANT HALOGEN FREE
- TrenchFET Gen IV power MOSFET
- Very low RDS - Qg figure-of-merit (FOM)
- Tuned for the lowest RDS - Qoss FOM
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA6074B#C45385122HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 102 | ₹139.72 · 102 in stock | View |
 | YJG210G06AR#C20605772YANGJIE · PDFN5060-8L | YANGJIE | PDFN5060-8L | 4,843 | ₹144.45 · 4,843 in stock | View |
 | SIDR626LEP-T1-RE3#C3289538VISHAY · PowerPAK-SO-8DC | VISHAY | PowerPAK-SO-8DC | 4,148 | ₹328.65 · 4,148 in stock | View |
 | NVMFSC1D6N06CL#C894169onsemi · DFN-8(5x6.2) | onsemi | DFN-8(5x6.2) | 3 | ₹1,053.68 · 3 in stock | View |
 | SIDR626LDP-T1-RE3#C3279576VISHAY · PowerPAK-SO-8DC | VISHAY | PowerPAK-SO-8DC | 192 | ₹227.42 · 192 in stock | View |
