VISHAYDatasheet (PDF)

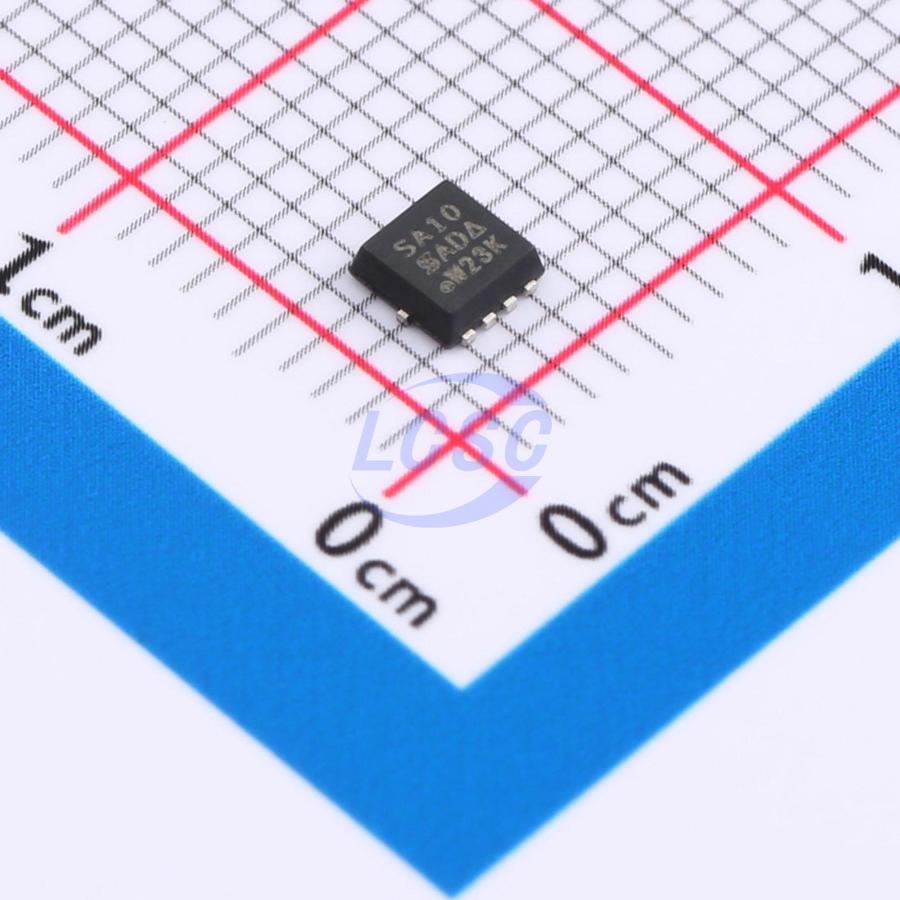

SISA10DN-T1-GE3
N-Channel 30V 3.6W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantDiscontinued
MOSFET N-CH 30V PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SISA10DN-T1-GE3
- Store part #
- C727608
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C727608
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.39 | ₹126.39 |
| 10+ | ₹124.45 | ₹1,244.50 |
| 30+ | ₹123.17 | ₹3,695.10 |
| 100+ | ₹121.66 | ₹12,166.00 |
1 × ₹126.39
₹126.39
excl. GST
₹149.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SISA10DN-T1-GE3
₹126.39 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 730pF
- Ciss-Input Capacitance
- 2.425nF
- Pd - Power Dissipation
- 3.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 65pF
- RDS(on)
- 3.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The PowerPAK 1212-8 package is a derivative of PowerPAK SO-8. It utilizes the same packaging technology, maximizing the die area. The bottom of the die attach pad is exposed to provide a direct, low resistance thermal path to the substrate the device is mounted on. The PowerPAK 1212-8 thus translates the benefits of the PowerPAK SO-8 into a smaller package, with the same level of thermal performance.
Applications
- High power density DC/DC
- Synchronous rectification
- VRMs and embedded DC/DC
Key features
- TrenchFET Gen IV power MOSFET
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SISHA10DN-T1-GE3#C3289437VISHAY · PowerPAK1212-8SH | VISHAY | PowerPAK1212-8SH | 10 | ₹71.36 · 10 in stock | View |
 | SISA72ADN-T1-GE3#C5754032VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 1 | ₹76.65 · 1 in stock | View |
| SQS174ELNW-T1-GE3#C27162878VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 35 | ₹181.41 · 35 in stock | View | |
 | SI7114ADN-T1-GE3#C727562VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 8 | ₹257.93 · 8 in stock | View |
 | NCEP4065QU#C502974NCE · DFN3.3x3.3-8L | NCE | DFN3.3x3.3-8L | 575 | ₹83.61 · 575 in stock | View |
