VISHAYDatasheet (PDF)

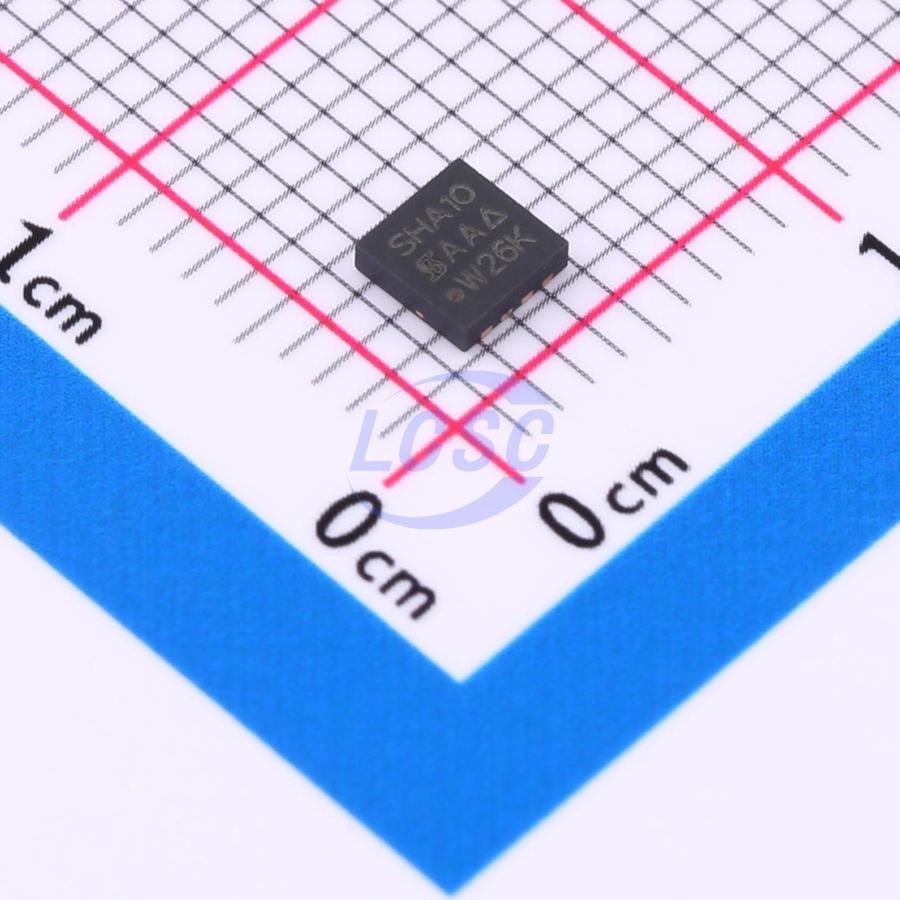

SISHA10DN-T1-GE3
N-Channel 30V 30A 39W Surface Mount PowerPAK1212-8SH
PowerPAK1212-8SHROHS3 CompliantActive
MOSFET N-CH 30V 30A PowerPAK1212-8SH
- Manufacturer
- VISHAY
- Manufacturer part #
- SISHA10DN-T1-GE3
- Store part #
- C3289437
- Package / case
- PowerPAK1212-8SH
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3289437
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.36 | ₹71.36 |
| 10+ | ₹69.74 | ₹697.40 |
| 30+ | ₹68.73 | ₹2,061.90 |
| 100+ | ₹67.71 | ₹6,771.00 |
1 × ₹71.36
₹71.36
excl. GST
₹84.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SISHA10DN-T1-GE3
₹71.36 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 730pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 2.425nF
- Pd - Power Dissipation
- 39W
- Reverse Transfer Capacitance (Crss)
- 65pF
- RDS(on)
- 3.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 23.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with AEC-Q101 and supports PPAP, making it ideal for: motor control, DC-DC converters, load switching
Applications
- High power density DC/DC
- Synchronous rectification
- VRMs and embedded DC/DC
Key features
- TrenchFET Gen IV power MOSFET
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMSC044N03#C45385347Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 125 | ₹28.15 · 125 in stock | View |
 | SISA10DN-T1-GE3#C727608VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 33 | ₹126.39 · 33 in stock | View |
 | NVTFS4C05NWFTAG#C604634onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 2 | ₹170.42 · 2 in stock | View |
 | CSD17578Q3A#C205986TI · VSONP-8(3.3x3.3) | TI | VSONP-8(3.3x3.3) | 3,774 | ₹56.48 · 3,774 in stock | View |
 | WNM3057-8/TR#C2939851WILLSEMI · PDFN3333-8L | WILLSEMI | PDFN3333-8L | 2,088 | ₹72.42 · 2,088 in stock | View |
