VISHAYDatasheet (PDF)

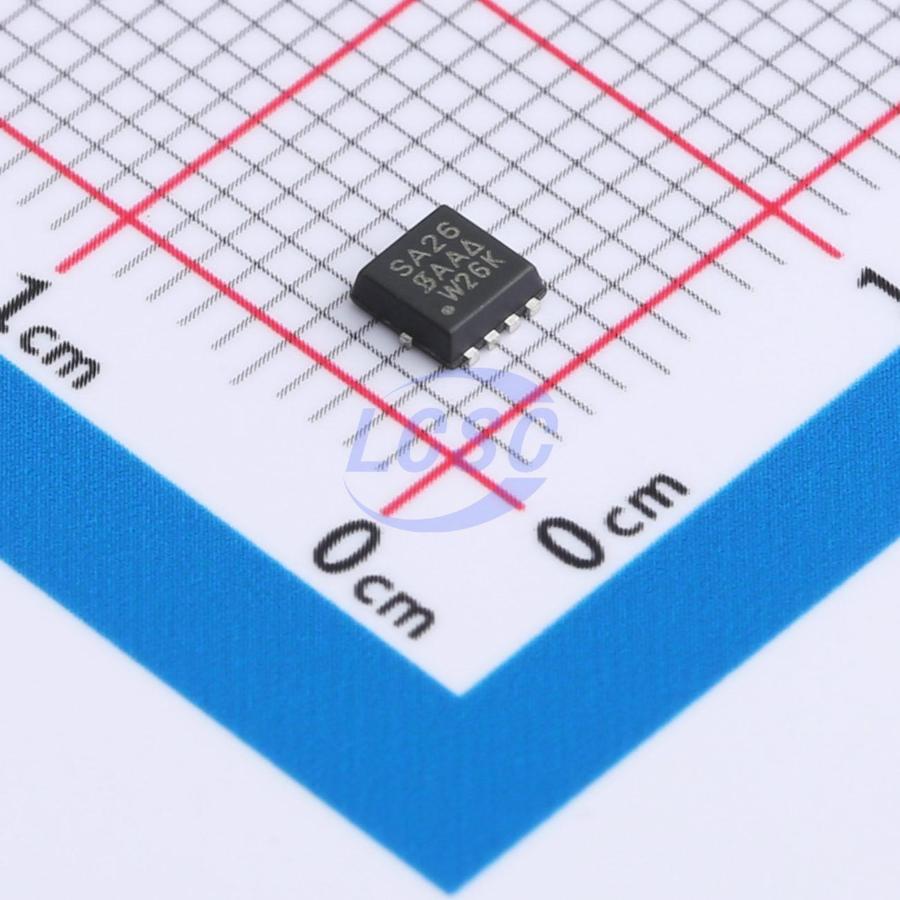

SISA26DN-T1-GE3
N-Channel 25V 29.1A 3.6W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 25V 29.1A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SISA26DN-T1-GE3
- Store part #
- C5221773
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C5221773
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.12 | ₹143.12 |
| 10+ | ₹140.12 | ₹1,401.20 |
| 30+ | ₹138.13 | ₹4,143.90 |
| 100+ | ₹135.94 | ₹13,594.00 |
1 × ₹143.12
₹143.12
excl. GST
₹168.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SISA26DN-T1-GE3
₹143.12 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 730pF
- Ciss-Input Capacitance
- 2.247nF
- Pd - Power Dissipation
- 3.6W
- Drain to Source Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 29.1A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 2.65mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29nC
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.295 g
Overview
Applications
- Synchronous rectification
- High power density DC/DC
- Synchronous buck converter
- Load switching
Key features
- TrenchFET Gen IV power MOSFET
- Optimized Q₉, Qgd, and Ω₉d/Q₉s ratio reduces switching related power loss
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WSD3070DN33#C148387Winsok Semicon · DFN-8(3.3x3.3) | Winsok Semicon | DFN-8(3.3x3.3) | 1,917 | ₹55.59 · 1,917 in stock | View |
 | SISA72ADN-T1-GE3#C5754032VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 1 | ₹76.65 · 1 in stock | View |
 | SISA10DN-T1-GE3#C727608VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 33 | ₹126.39 · 33 in stock | View |
 | RH6G040BGTB1#C7049321ROHM · HSMT-8(3x3.2) | ROHM | HSMT-8(3x3.2) | 71 | ₹185.82 · 71 in stock | View |
 | CMSC055N06#C45385348Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 50 | ₹52.52 · 50 in stock | View |
