SITDatasheet (PDF)

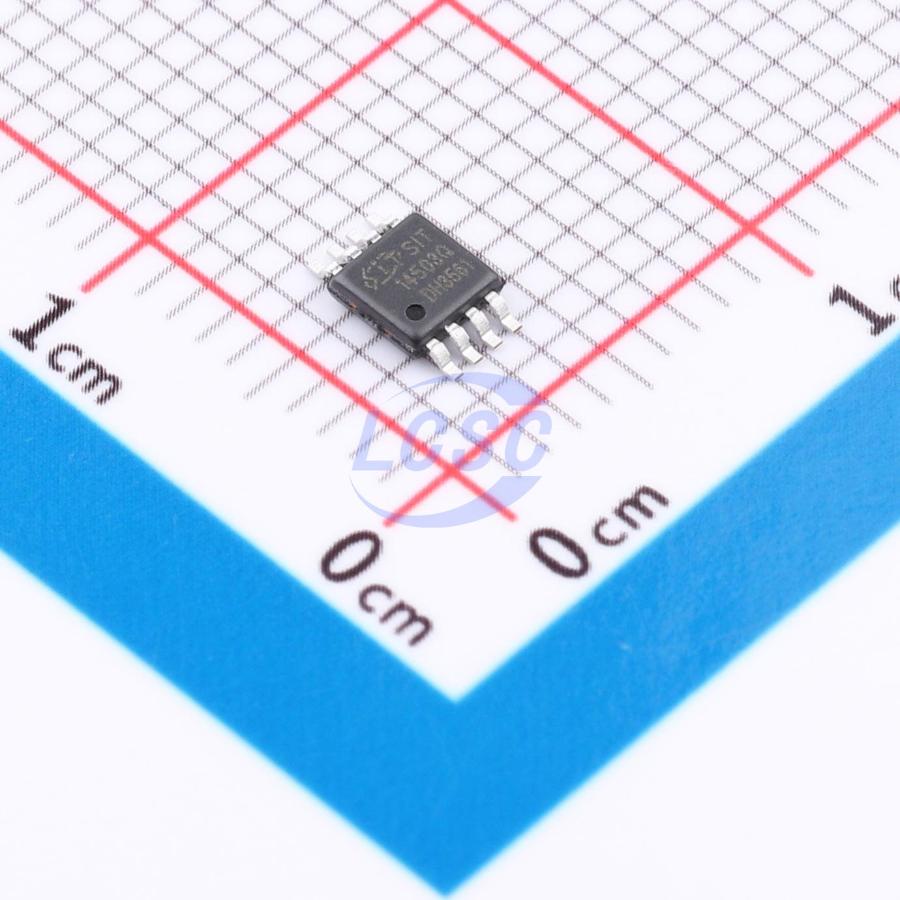

SIT14503QU
5V Positive Fixed EMSOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
EMSOP-8RoHSActive
IC REG LINEAR 5V 300mA EMSOP-8
- Manufacturer
- SIT
- Manufacturer part #
- SIT14503QU
- Store part #
- C42375526
- Package / case
- EMSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,495 in stock
#C42375526
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.63 | ₹218.15 |
| 50+ | ₹34.83 | ₹1,741.50 |
| 150+ | ₹31.08 | ₹4,662.00 |
| 500+ | ₹26.37 | ₹13,185.00 |
| 2,500+ | ₹24.28 | ₹60,700.00 |
| 5,000+ | ₹23.02 | ₹1,15,100.00 |
5 × ₹43.63
₹218.15
excl. GST
₹257.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT14503QU
₹218.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Built-in soft-start
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The SIT14503Q series is an ultra-low quiescent current, low-dropout linear regulator with a wide input voltage range of 3V to 40V. The series offers fixed output voltages of 3.3V and 5V, or an adjustable output voltage from 0.65V to 24V via external resistor feedback, with a typical feedback voltage of 0.65V. The device can deliver a load current of up to 300mA. In shutdown mode, the quiescent current is less than 1μA; under no-load conditions, the quiescent operating current is less than 6μA. The series integrates overcurrent protection, short-circuit protection, over-temperature shutdown, and auto-restart functions, along with a built-in soft-start circuit. The operating temperature range is -40°C to 150°C, available in EMSOP8 and SOT89-5 packages.
Key features
- Wide input voltage range: 3V to 40V
- AEC-Q100 qualified
- Ultra-low quiescent current: < 6μA
- Low dropout: 200mV@100mA
- Output current up to 300mA with ultra-low power sleep mode
- Shutdown current: < 1μA
- High PSRR: 60dB@100Hz
- 40V-rated enable pin with overcurrent and short-circuit protection
- Operating temperature range: -40°C ~ 150°C
- Overtemperature shutdown with auto-restart recovery
- Integrated soft-start
- Available in EMSOP8 and SOT89-5 packages
