JSCJDatasheet (PDF)

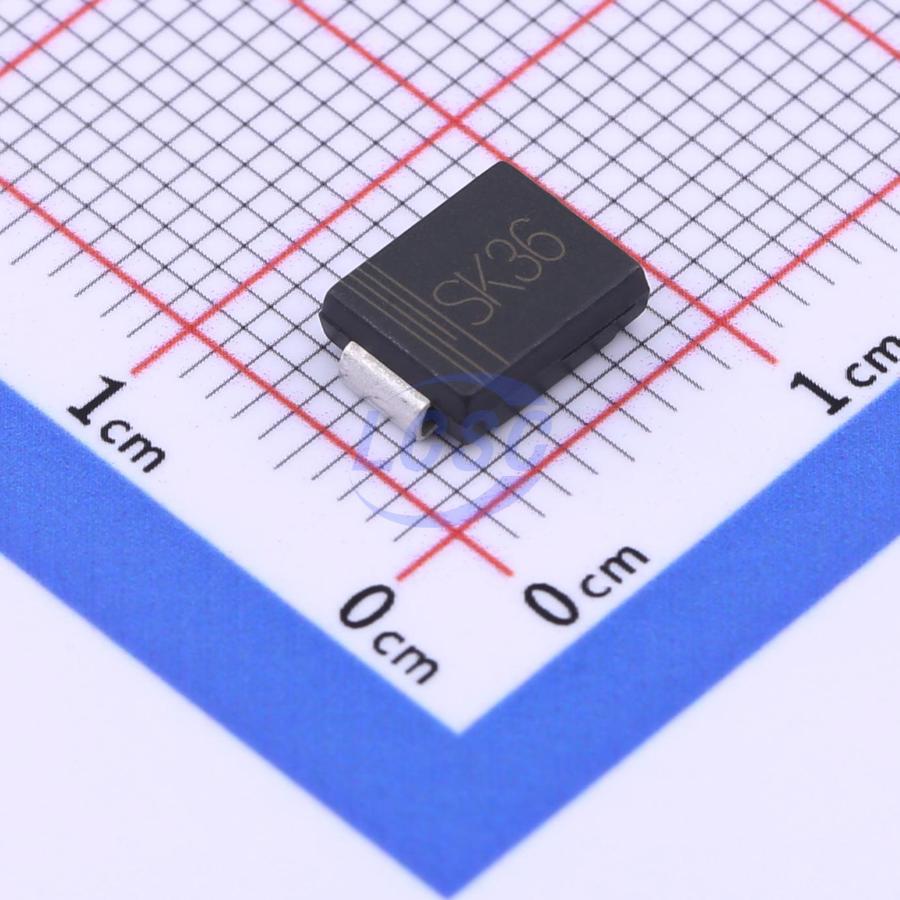

SK36
Diode 60V 3A SMCG
SMCGROHS CompliantActive
DIODE SCHOTTKY 60V SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- SK36
- Store part #
- C2924117
- Package / case
- SMCG
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,315 in stock
#C2924117
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.65 | ₹73.25 |
| 50+ | ₹12.42 | ₹621.00 |
| 150+ | ₹11.31 | ₹1,696.50 |
| 500+ | ₹10.48 | ₹5,240.00 |
| 3,000+ | ₹9.34 | ₹28,020.00 |
| 6,000+ | ₹9.01 | ₹54,060.00 |
5 × ₹14.65
₹73.25
excl. GST
₹86.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK36
₹73.25 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 850mV@3A
- Reverse Leakage Current (Ir)
- 500uA@60V
- Current - Rectified
- 3A
- Non-Repetitive Peak Forward Surge Current
- 100A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- Rectifier
Key features
- IF(AV) 3A
- VRRM 20V - 200V
- High surge current capability
- Polarity: Color band denotes cathode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK106#C5295552JSCJ · SMCG | JSCJ | SMCG | 2,745 | ₹27.98 · 2,745 in stock | View |
 | SK315#C5295556JSCJ · SMCG | JSCJ | SMCG | 495 | ₹10.73 · 495 in stock | View |
 | SK310(SMCG)#C5356752JSCJ · SMCG | JSCJ | SMCG | 2,280 | ₹12.04 · 2,280 in stock | View |
 | SK86#C5295567JSCJ · SMCG | JSCJ | SMCG | 2,950 | ₹30.11 · 2,950 in stock | View |
 | SK810#C5295564JSCJ · SMCG | JSCJ | SMCG | 2,870 | ₹26.72 · 2,870 in stock | View |
