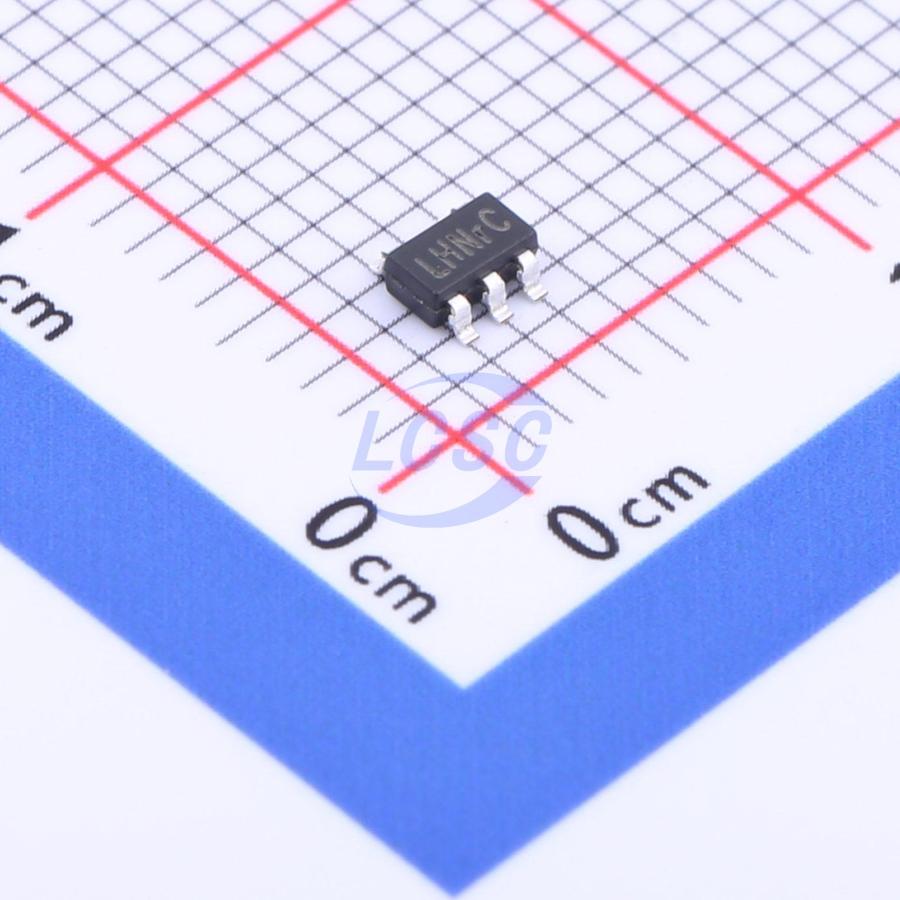

SuntekDatasheet (PDF)
SK6013BS5-15
1.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low Noise, High PSRR, High Speed, CMOS LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6013BS5-15
- Store part #
- C2682743
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,105 in stock
#C2682743
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.07 | ₹55.35 |
| 50+ | ₹8.80 | ₹440.00 |
| 150+ | ₹7.66 | ₹1,149.00 |
| 500+ | ₹6.80 | ₹3,400.00 |
| 3,000+ | ₹6.13 | ₹18,390.00 |
| 6,000+ | ₹5.78 | ₹34,680.00 |
5 × ₹11.07
₹55.35
excl. GST
₹65.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6013BS5-15
₹55.35 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
The SK6013 is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection and fast discharge function. The device offers a new level of cost effective 63 devices. SK6013 can provide product selections of output value in the range of 1.0V~3.6V by every 0.1V step. The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. The SK6013 regulators are available in standard SOT23-5L and DFN1x1-4L packages. Standard products are Pb-free and Halogen-free.
Applications
- Digital cameras
- Cellphones
- Bluetooth and wireless handsets
- Other portable electronic devices
Key features
- Input voltage: 2.5V~6.5V
- Output range: 1.0V~3.6V (customized by every 0.1V step)
- Maximum output current: 400mA@ VIN - VOUT = 0.5V
- PSRR: 75dB @1KHz
- Dropout voltage: 220mV @IOUT = 200mA
- Quiescent current: 35μA Typ.
- Shut-down current: <1μA
- Recommend capacitor: 1μF
- Ultra-low output noise: 20μVRMS
