SuntekDatasheet (PDF)

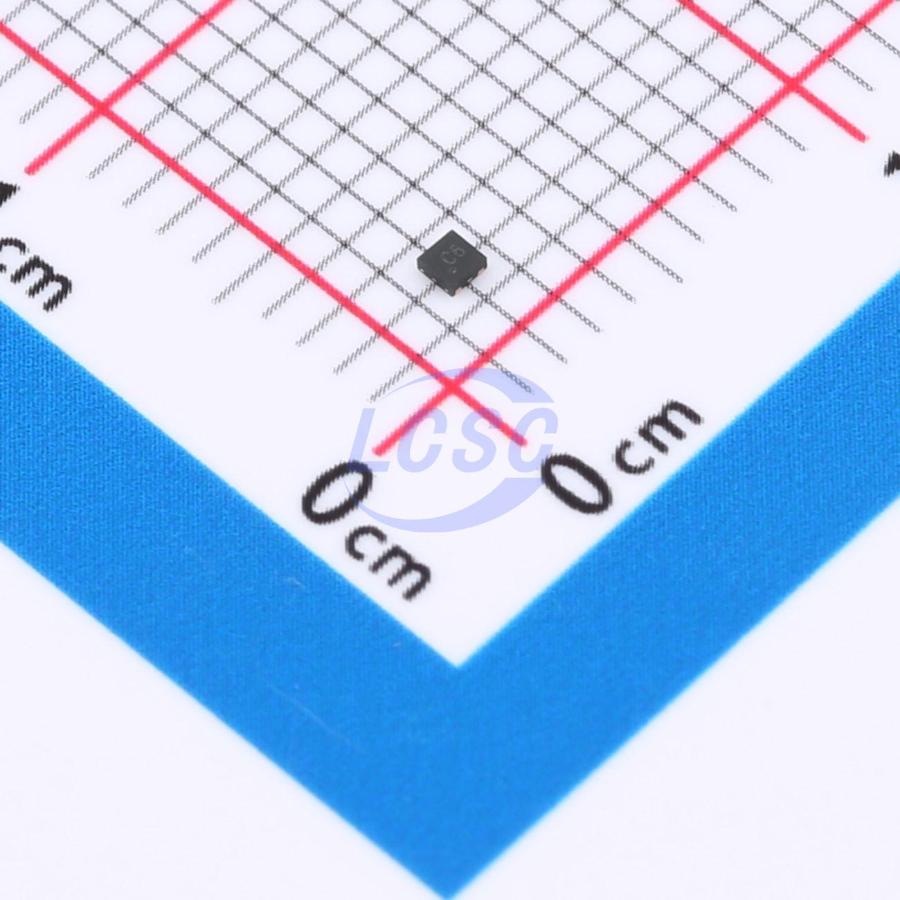

SK6013SD4-18
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA DFN-4-EP(1x1)
DFN-4-EP(1x1)RoHSActive
High PSRR Low Noise 300mA RF LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6013SD4-18
- Store part #
- C47325470
- Package / case
- DFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C47325470
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.59 | ₹67.95 |
| 50+ | ₹10.80 | ₹540.00 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.35 | ₹4,175.00 |
| 2,500+ | ₹7.51 | ₹18,775.00 |
| 5,000+ | ₹7.09 | ₹35,450.00 |
5 × ₹13.59
₹67.95
excl. GST
₹80.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SK6013SD4-18
₹67.95 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
SK6013S is a low-dropout, low-power linear regulator that delivers an exceptionally high power supply rejection ratio while maintaining an ultra-low 40μA ground current, making it ideal for RF applications and portable devices such as wireless handsets and PDAs. The device employs advanced CMOS process technology and a PMOSFET pass element to achieve fast startup, ultra-low noise, and excellent transient response. The SK6013S remains stable with a 1μF ceramic output capacitor, and incorporates a precision voltage reference with a feedback loop for high accuracy. The device is available in DFN1×1-4, SOT23-5, and SC70-5 packages.
Applications
- Smart Phones and Cellular Phones
- PDAs
- MP3/MP4 Player
- Digital Still Cameras
- Portable instruments
Key features
- Wide input voltage range: 2.0V to 6.0V
- Maximum load current: 300mA
- Standard fixed output voltage options: 1.05V ~ 3.45V
- Ultra-low dropout: 250mV @ IOUT=300mA
- High PSRR: 75dB @1KHz
- Low noise: 45µVRMS
- Low quiescent current: 40uA
- Ultra-fast startup time: 25µs
- Excellent load/line transient response
- Line regulation: 0.03% (typical)
- Auto-discharge function
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6013AD4-18#C2682738Suntek · XDFN-4-EP(1x1) | Suntek | XDFN-4-EP(1x1) | 3,820 | ₹9.05 · 3,820 in stock | View |
| SK6018SD4-18#C52034490Suntek · DFN-4L(1x1) | Suntek | DFN-4L(1x1) | 215 | ₹13.16 · 215 in stock | View | |
 | SK6019AD4-18#C2682759Suntek · XDFN-4-EP(1x1) | Suntek | XDFN-4-EP(1x1) | 1,255 | ₹14.09 · 1,255 in stock | View |
 | SK6011D4-18#C20612131Suntek · DFN-4L-EP(1x1) | Suntek | DFN-4L-EP(1x1) | 60 | ₹19.62 · 60 in stock | View |
 | SK6018D4-18#C2682756Suntek · UTDFN-4-EP(1x1) | Suntek | UTDFN-4-EP(1x1) | 410 | ₹13.90 · 410 in stock | View |
