SuntekDatasheet (PDF)

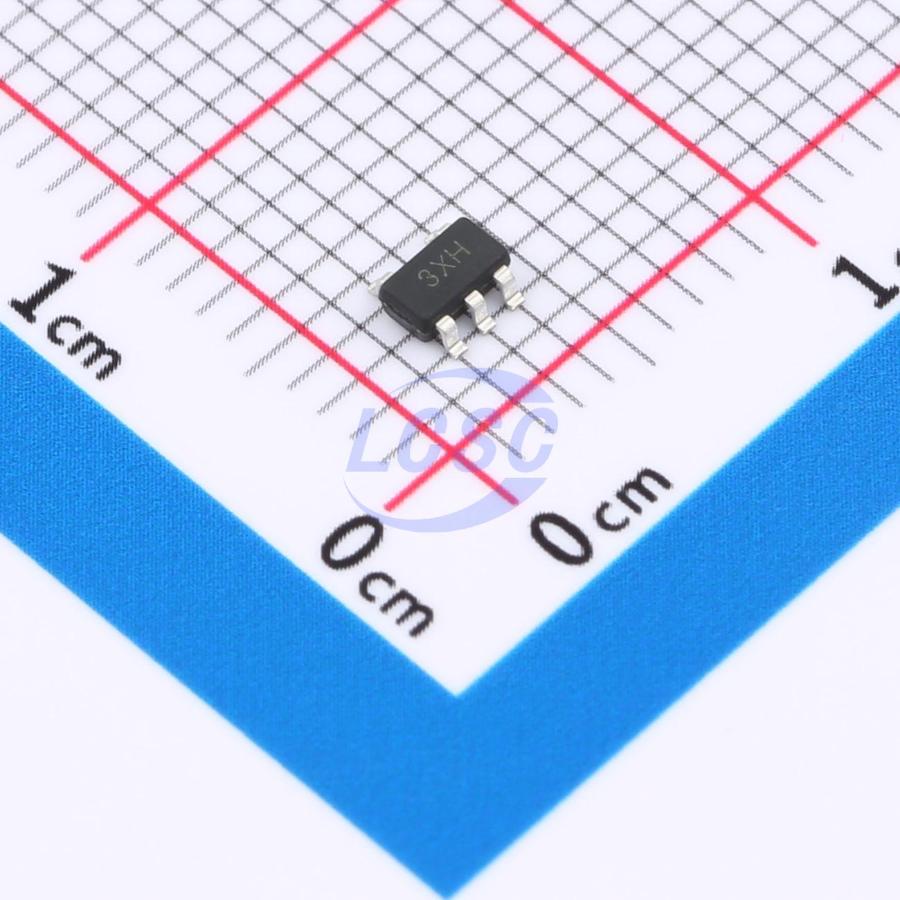

SK6013SS5-33
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LRoHSActive
High PSRR Low Noise 300mA RF LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6013SS5-33
- Store part #
- C47325478
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,005 in stock
#C47325478
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.84 | ₹59.20 |
| 50+ | ₹9.37 | ₹468.50 |
| 150+ | ₹8.12 | ₹1,218.00 |
| 500+ | ₹7.20 | ₹3,600.00 |
| 3,000+ | ₹6.46 | ₹19,380.00 |
| 6,000+ | ₹6.07 | ₹36,420.00 |
5 × ₹11.84
₹59.20
excl. GST
₹69.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6013SS5-33
₹59.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
SK6013S is a low-dropout, low-power linear regulator that delivers an exceptionally high power supply rejection ratio while maintaining an ultra-low 40μA ground current, making it ideal for RF applications and portable devices such as wireless handsets and PDAs. The device employs advanced CMOS process technology and a PMOSFET pass element to achieve fast startup, ultra-low noise, and excellent transient response. The SK6013S remains stable with a 1μF ceramic output capacitor, and incorporates a precision voltage reference with a feedback loop for high accuracy. The device is available in DFN1×1-4, SOT23-5, and SC70-5 packages.
Applications
- Smart Phones and Cellular Phones
- PDAs
- MP3/MP4 Player
- Digital Still Cameras
- Portable instruments
Key features
- Wide input voltage range: 2.0V to 6.0V
- Maximum load current: 300mA
- Standard fixed output voltage options: 1.05V ~ 3.45V
- Ultra-low dropout: 250mV @ IOUT=300mA
- High PSRR: 75dB @1KHz
- Low noise: 45µVRMS
- Low quiescent current: 40uA
- Ultra-fast startup time: 25µs
- Excellent load/line transient response
- Line regulation: 0.03% (typical)
- Auto-discharge function
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6013BS5-33#C2682747Suntek · SOT-23-5 | Suntek | SOT-23-5 | 3,170 | ₹11.06 · 3,170 in stock | View |
| SK6215ES5-33#C52034529Suntek · SOT-23-5L | Suntek | SOT-23-5L | 945 | ₹19.02 · 945 in stock | View | |
 | SK6014AS5-33#C2682751Suntek · SOT-23-5 | Suntek | SOT-23-5 | 2,035 | ₹12.54 · 2,035 in stock | View |
 | SK6017S5-33#C2682755Suntek · SOT-23-5 | Suntek | SOT-23-5 | 2,780 | ₹12.36 · 2,780 in stock | View |
 | SK6012AS5-33#C52034518Suntek · SOT-23-5L | Suntek | SOT-23-5L | 720 | ₹8.78 · 720 in stock | View |
