SuntekDatasheet (PDF)

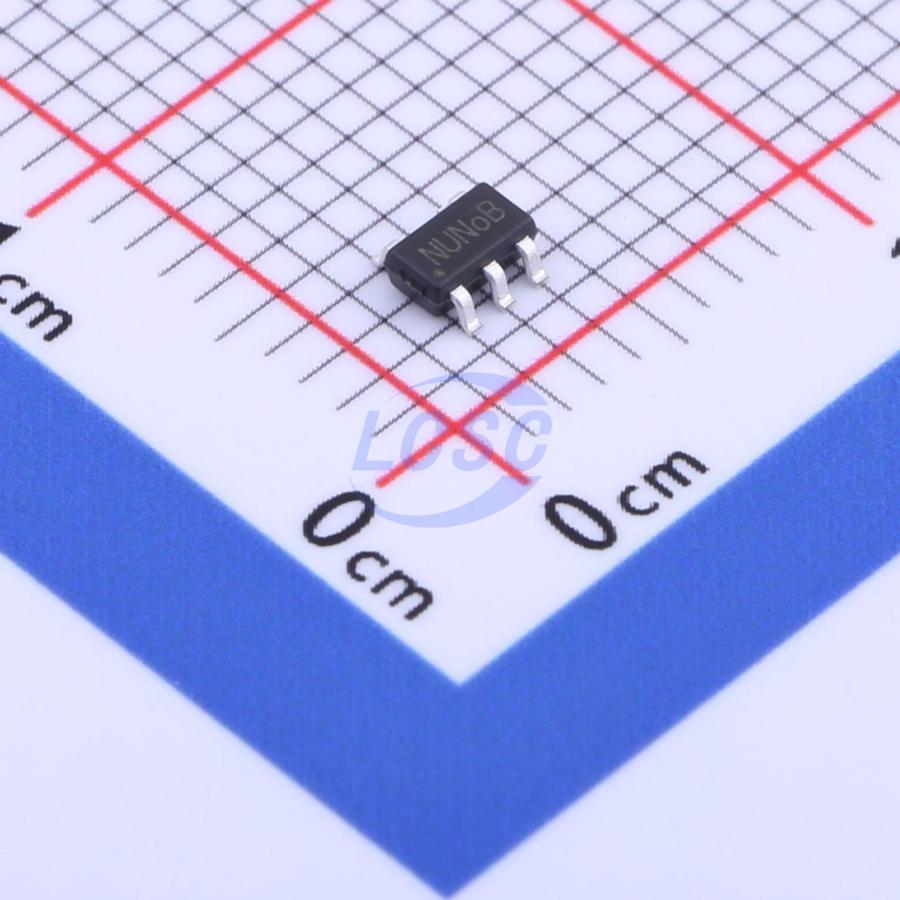

SK6014AS5-12
1.2V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5LRoHSActive
Low Noise, High PSRR, High Speed, CMOS LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6014AS5-12
- Store part #
- C2682748
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C2682748
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.58 | ₹62.90 |
| 50+ | ₹9.99 | ₹499.50 |
| 150+ | ₹8.71 | ₹1,306.50 |
| 500+ | ₹7.73 | ₹3,865.00 |
| 3,000+ | ₹6.96 | ₹20,880.00 |
| 6,000+ | ₹6.58 | ₹39,480.00 |
5 × ₹12.58
₹62.90
excl. GST
₹74.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6014AS5-12
₹62.90 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 45uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Output discharge;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The SK6014 is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection and fast discharge function. The device offers a new level of cost effective performance in cellular phones, surveillance system, Bluetooth, wireless and other portable electronic devices. SK6014 can provide product selections of output value in the range of 1.0V~3.6V by every 0.1V step. SK6014 offer over temperature protection to ensure the device working in well conditions. The SK6014 regulators are available in standard SOT23-5L, SOT89-3L packages. Standard products are Pb-free and Halogen-free.
Applications
- Digital cameras
- Cellphones
- Bluetooth and wireless handsets
- Other portable electronic devices
Key features
- Input voltage: 2.5V~6.5V
- Output range: 1.0V~3.6V (customized by every 0.1V step)
- Maximum output current: 750mA@ VIN - VOUT = 0.5V
- PSRR: 75dB @1KHz 55dB@1MHz
- Dropout voltage: 110mV @IOUT = 200mA
- Quiescent current: 45μA Typ.
- Shut-down current: <1μA
- Recommend capacitor: 1μF
- Ultra-low output noise: 20μVRMS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6013BS5-12#C2682742Suntek · SOT-23-5 | Suntek | SOT-23-5 | 2,085 | ₹11.01 · 2,085 in stock | View |
