SuntekDatasheet (PDF)

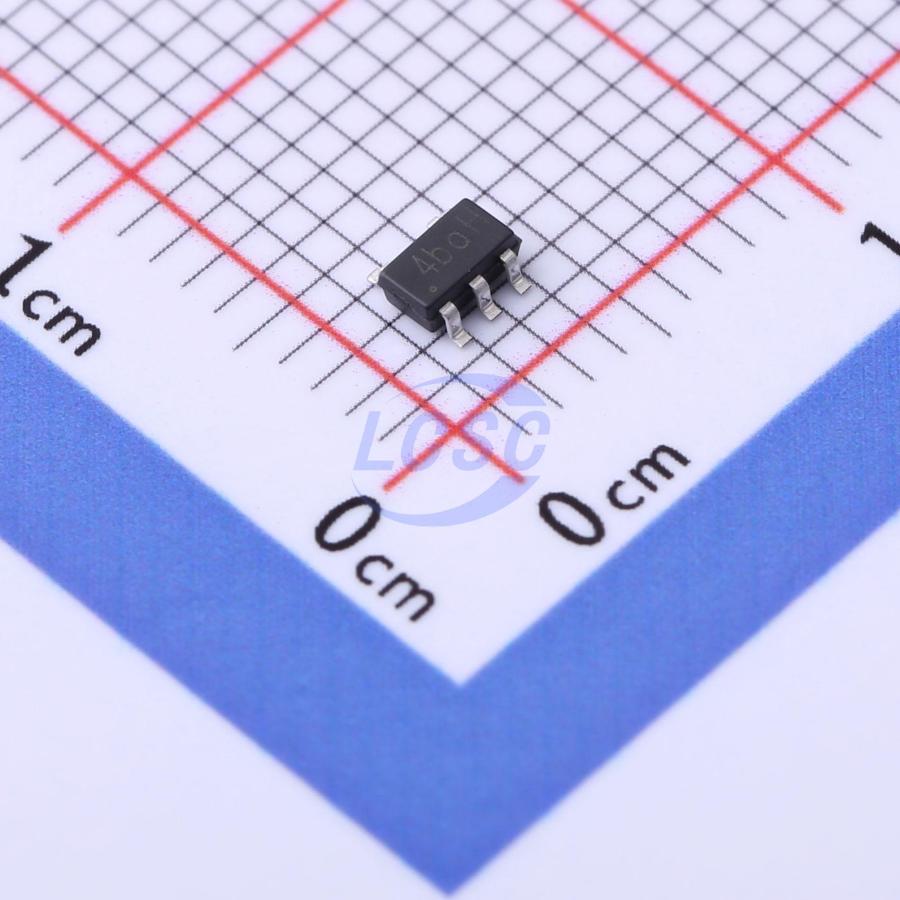

SK6015S5-ADJ
800mV~3.3V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
600mA High PSRR, Low Noise LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6015S5-ADJ
- Store part #
- C2986195
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C2986195
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.76 | ₹73.80 |
| 50+ | ₹11.67 | ₹583.50 |
| 150+ | ₹10.12 | ₹1,518.00 |
| 500+ | ₹8.97 | ₹4,485.00 |
| 3,000+ | ₹8.03 | ₹24,090.00 |
| 6,000+ | ₹7.57 | ₹45,420.00 |
5 × ₹14.76
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6015S5-ADJ
₹73.80 for 5 + GST
Specifications
- Output Voltage
- 800mV~3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 600mA
- Output Type
- Adjustable
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
The SK6015 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a standard voltage source, an error correction, current limiter and a phase compensation circuit plus a driver transistor. External output feedback, customers can easily get the required voltage. In order to make the load current does not exceed the current capacity of the output transistor, built-in overcurrent protection, over temperature protection and short circuit protection. The internal op amp with advanced structure, the output capacitor can be omitted. The SK6015 series are available in SOT23-3, SOT23-5, DFN1×1-4, DFN2×2-6 package.
Applications
- Cellular Handsets
- Battery-Powered
- Wi-Fi Router
- Hand-Held Instruments
- Portable Information Application
- Adjustable power supply
Key features
- Programmable Output: Minimum can go to 0.8V
- Low Power Consumption: 50μA (Typ.)
- Low Voltage Drops: 0.15V@50mA (ADJ)
- Standby Mode: 0.1uA
- Low Temperature Coefficient
- Active Discharge Function
- High Ripple Rejection: 70dB@100Hz (Typ.)
- High Input Voltage (ADJ up to 8V)
- Output Voltage Accuracy: Tolerance ±2%
- Build-in Enable / Output Current Limit
- SOT23-3/SOT23-5/DFN1×1-4/DFN2×2-6 Package
