SuntekDatasheet (PDF)

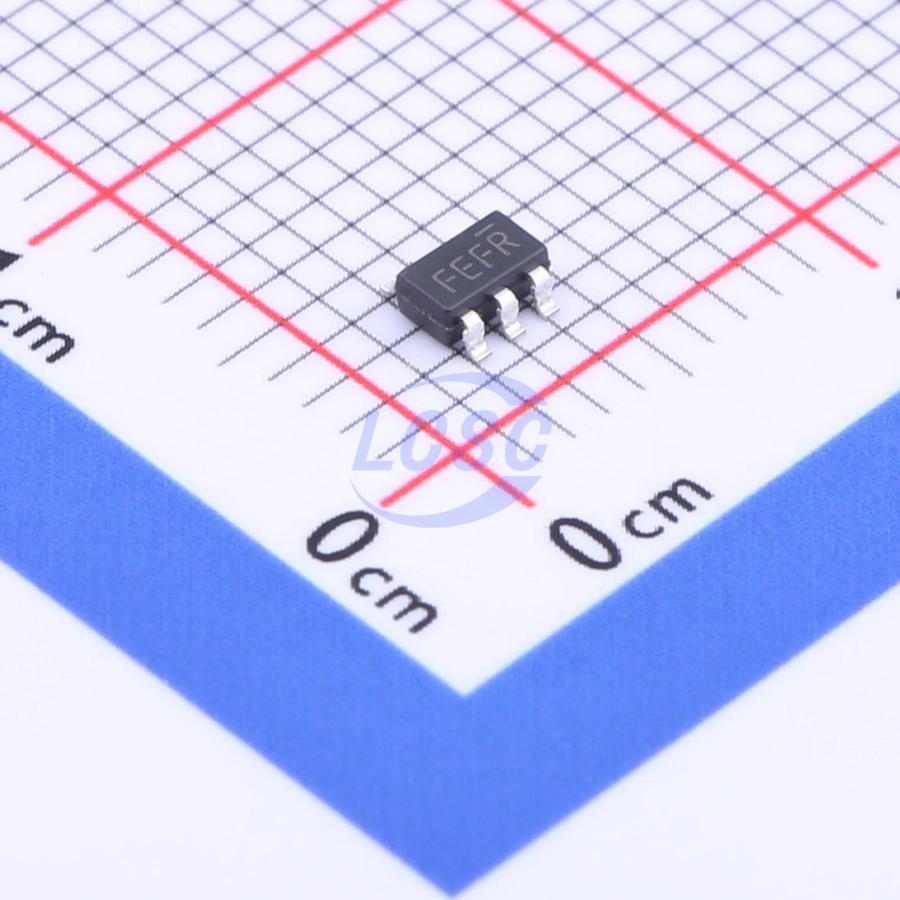

SK6017S5-30
3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5LRoHSActive
300mA,Low Consumption,CMoS LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6017S5-30
- Store part #
- C2682754
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,210 in stock
#C2682754
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.56 | ₹62.80 |
| 50+ | ₹9.98 | ₹499.00 |
| 150+ | ₹8.69 | ₹1,303.50 |
| 500+ | ₹7.73 | ₹3,865.00 |
| 3,000+ | ₹6.95 | ₹20,850.00 |
| 6,000+ | ₹6.56 | ₹39,360.00 |
5 × ₹12.56
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6017S5-30
₹62.80 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The SK6017 series are low dropout linear regulators and optimized to provide a high performance solution for battery power system to deliver low quiescent current. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The SK6017 series are designed to make use of low cost ceramic capacitors which ensure the stability of the output current, and enhance the efficiency in order to prolong the battery life of those portable devices. SK6017 can provide product selections of output value in the range of 1.2V~3.6V by every 0.1V step. The SK6017 regulators are available in SOT23-5L packages. Standard products are Pb-free and Halogen free products.
Applications
- Reference voltage source
- Toys
- Bluetooth, wireless handsets
- Others portable electronic device
Key features
- Input voltage: 2.5V~6.5V
- Output range: 1.2V~3.6V (customized by every 0.1V step)
- Output current: 300mA @ VOUT > 2V
- Dropout voltage: 100mV @ IOUT = 100mA
- Quiescent current: 1μA Typ.
- Shut-down current: <0.1μA
- Recommend capacitor: 1μF
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6013BS5-30#C2682746Suntek · SOT-23-5 | Suntek | SOT-23-5 | 20 | ₹10.82 · 20 in stock | View |
 | SK6013S5-30#C2986172Suntek · SOT-23-5L | Suntek | SOT-23-5L | 2,305 | ₹11.07 · 2,305 in stock | View |
 | SK6014AS5-30#C2986176Suntek · SOT-23-5L | Suntek | SOT-23-5L | 1,615 | ₹12.58 · 1,615 in stock | View |
