SuntekDatasheet (PDF)

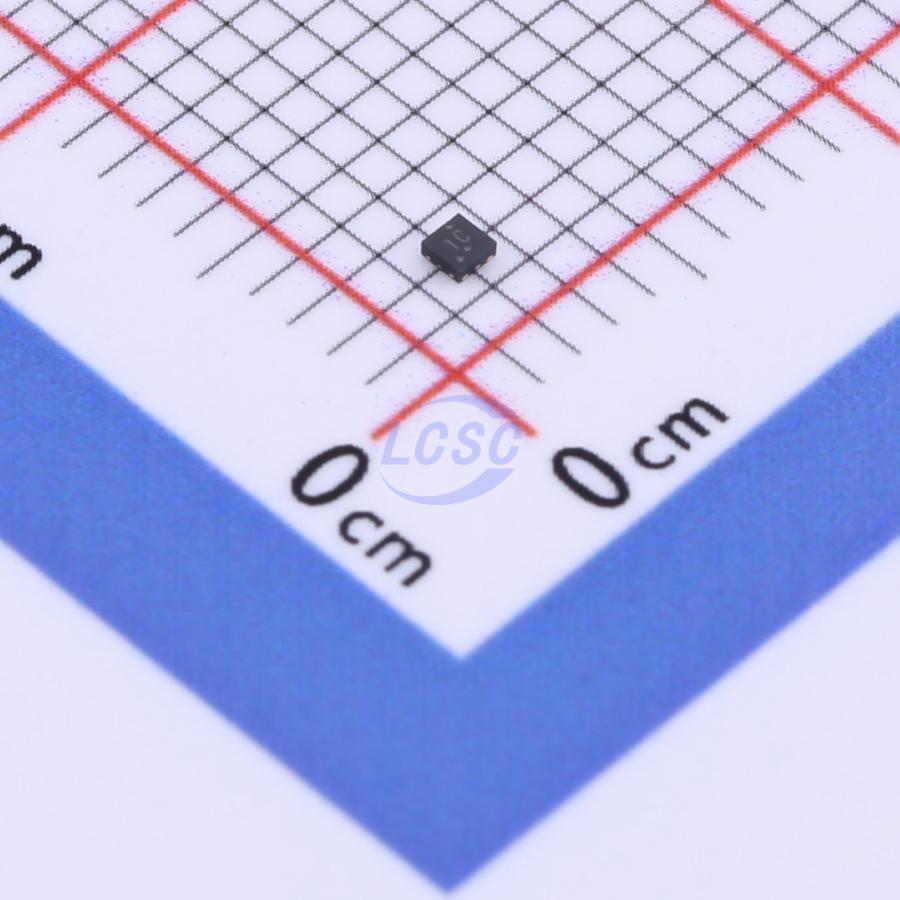

SK6018CD4-18
1.8V Positive Fixed DFN1x1-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN1x1-4RoHSActive
2uAIQ, 600mA Low-Dropout Linear Regulator
- Manufacturer
- Suntek
- Manufacturer part #
- SK6018CD4-18
- Store part #
- C2986201
- Package / case
- DFN1x1-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,263 in stock
#C2986201
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹18.43 | ₹18.43 |
| 10+ | ₹16.17 | ₹161.70 |
| 30+ | ₹15.20 | ₹456.00 |
| 100+ | ₹14.00 | ₹1,400.00 |
| 500+ | ₹13.45 | ₹6,725.00 |
| 1,000+ | ₹13.12 | ₹13,120.00 |
1 × ₹18.43
₹18.43
excl. GST
₹21.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SK6018CD4-18
₹18.43 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.009 g
Overview
SK6018C is a low quiescent current linear regulator designed especially for low external components system. The input voltage range is from 1.2V to 5.5V. The minimum required output capacitance for stable operation is 1μF effective capacitance after consideration of the temperature and voltage coefficient of the capacitor.
Applications
- Portable, Battery Powered Equipment
- Ultra Low Power Microcontrollers
- Notebook Computers
Key features
- 2μA Ground Current at no Load
- PSRR = 75dB at 1kHz
- Adjustable Output Voltage Available by Specific Application
- ±2% Output Accuracy
- 600mA (VIN ≥ 2.3V) Output Current with EN
- Low (0.1μA) Disable Current
- 1.2V to 5.5V Operating Input Voltage
- Dropout Voltage: 0.31V at 600mA when VOUT ≥ 3V
- Support Fixed Output Voltage 0.8V to 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current-Limit Protection
