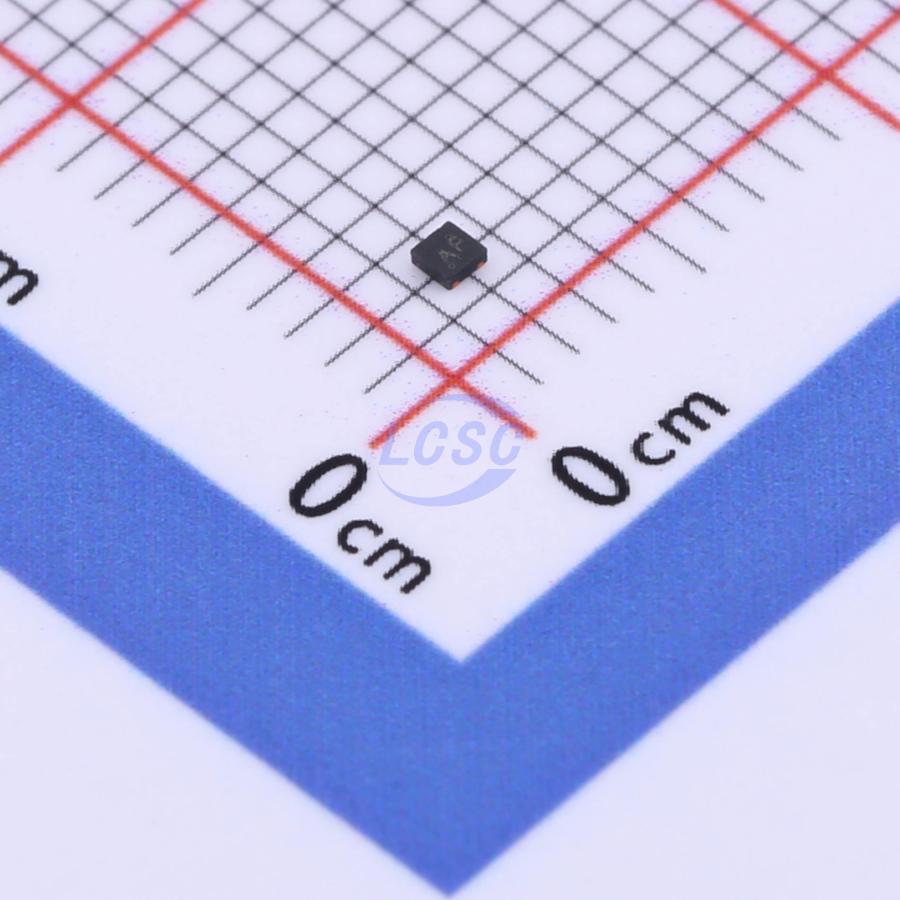

SK6018CD4-28
Positive Fixed DFN-4(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4(1x1)RoHSActive
2uAIQ,600mA Low-Dropout Linear Regulator
- Manufacturer
- Suntek
- Manufacturer part #
- SK6018CD4-28
- Store part #
- C2986202
- Package / case
- DFN-4(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,585 in stock
#C2986202
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹18.43 | ₹18.43 |
| 10+ | ₹16.17 | ₹161.70 |
| 30+ | ₹15.20 | ₹456.00 |
| 100+ | ₹14.00 | ₹1,400.00 |
| 500+ | ₹13.45 | ₹6,725.00 |
| 1,000+ | ₹13.12 | ₹13,120.00 |
1 × ₹18.43
₹18.43
excl. GST
₹21.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SK6018CD4-28
₹18.43 for 1 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.011 g
Overview
The SK6018C is a low quiescent current linear regulator designed especially for low external components system. The input voltage range is from 1.2V to 5.5V.
Applications
- Portable, Battery Powered Equipment
- Ultra Low Power Microcontrollers
- Notebook Computers
Key features
- 2μA Ground Current at no Load
- PSRR = 75dB at 1kHz
- Adjustable Output Voltage Available by Specific Application
- ±2% Output Accuracy
- 600mA (VIN ≥ 2.3V) Output Current with EN
- Low (0.1μA) Disable Current
- 1.2V to 5.5V Operating Input Voltage
- Dropout Voltage: 0.31V at 600mA when VOUT ≥ 3V
- Support Fixed Output Voltage 0.8V to 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current-Limit Protection
