SuntekDatasheet (PDF)

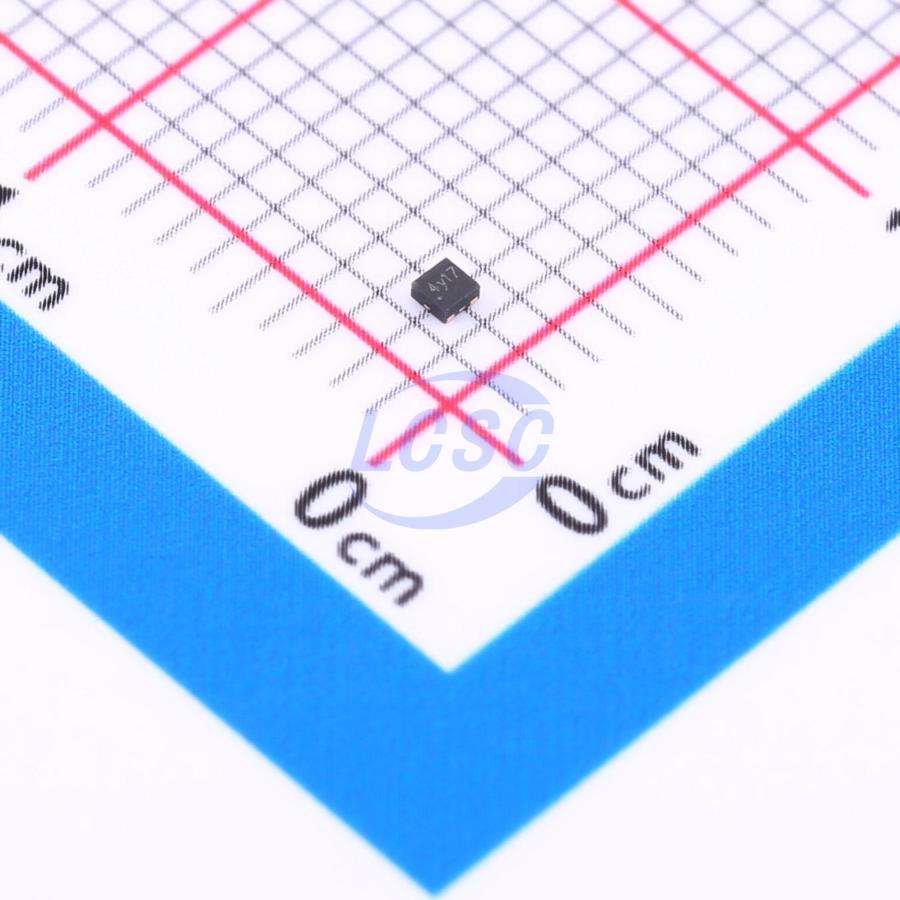

SK6021D4-33
3.3V Positive Fixed DFN1x1-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN1x1-4RoHSActive
Ultra Low Consumption 300mACMos Regulator
- Manufacturer
- Suntek
- Manufacturer part #
- SK6021D4-33
- Store part #
- C5120317
- Package / case
- DFN1x1-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,340 in stock
#C5120317
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.08 | ₹45.40 |
| 50+ | ₹7.99 | ₹399.50 |
| 150+ | ₹7.46 | ₹1,119.00 |
| 500+ | ₹7.05 | ₹3,525.00 |
| 2,500+ | ₹6.73 | ₹16,825.00 |
| 5,000+ | ₹6.58 | ₹32,900.00 |
5 × ₹9.08
₹45.40
excl. GST
₹53.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SK6021D4-33
₹45.40 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 450mA
- Operating Voltage
- 8V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
The SK6021 is a high accuracy, low noise, high speed CMOS Linear regulator with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. The SK6021 regulators are available in standard SOT23-3, SOT23-5 and DFN1x1-4 packages. Standard products are Pb-free and Halogen-free.
Applications
- Radio control systems
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable consumer equipments
Key features
- Input voltage: 1.5V~8V
- Output range: 1.2V~5.0V
- Maximum output current: 400mA @ VOUT = 3.3V
- PSRR: 60dB @ 1KHz
- Dropout voltage: 160mV @ IOUT = 100mA
- Quiescent current: 0.8μA Typ.
- Shut-down current: <1μA
- Recommend capacitor: 1μF
- Built-in Short-Circuit Protection, Current Limiter
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6019AD4-33#C2682762Suntek · XDFN-4-EP(1x1) | Suntek | XDFN-4-EP(1x1) | 18,005 | ₹16.44 · 18,005 in stock | View |
