SuntekDatasheet (PDF)

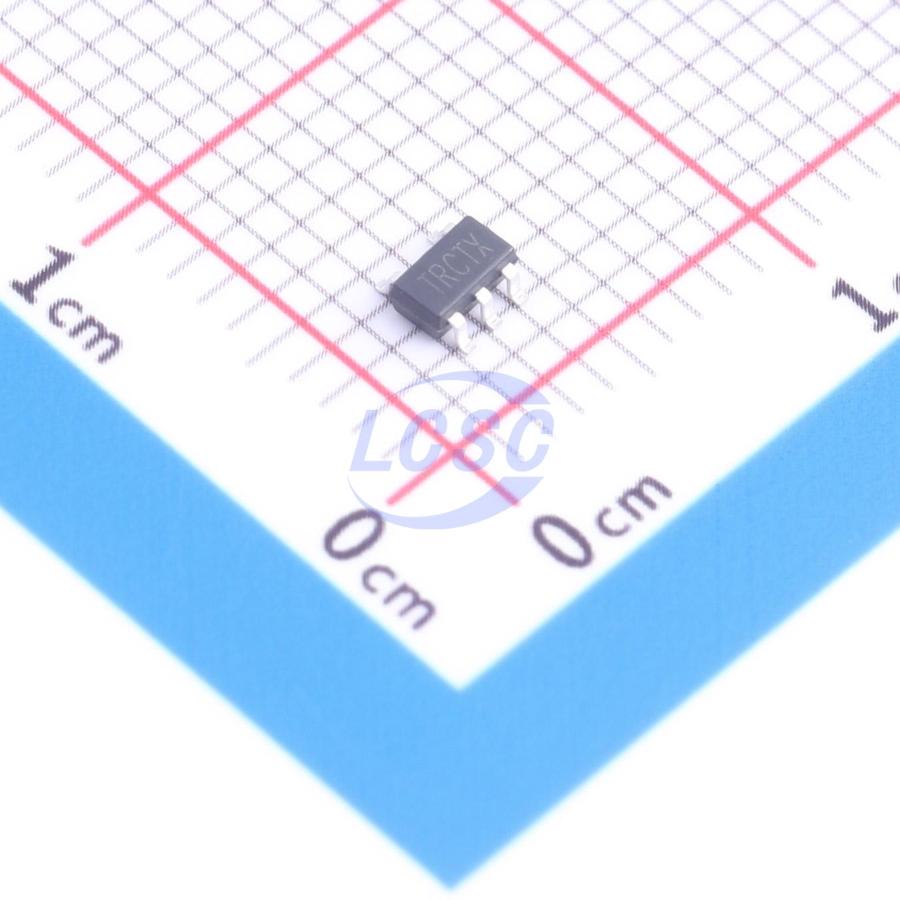

SK6052S5-ADJ
600mV~5V Positive Adjustable SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5LRoHSActive
- Manufacturer
- Suntek
- Manufacturer part #
- SK6052S5-ADJ
- Store part #
- C52034525
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C52034525
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.04 | ₹110.20 |
| 50+ | ₹17.17 | ₹858.50 |
| 150+ | ₹15.08 | ₹2,262.00 |
| 500+ | ₹12.49 | ₹6,245.00 |
| 3,000+ | ₹11.32 | ₹33,960.00 |
| 6,000+ | ₹10.62 | ₹63,720.00 |
5 × ₹22.04
₹110.20
excl. GST
₹130.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6052S5-ADJ
₹110.20 for 5 + GST
Specifications
- Output Voltage
- 600mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 75uA
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 1A
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The SK6052 series is a CMOS LDO linear regulator featuring ultra-low dropout voltage, fast transient response, high output current, and high PSRR. Across the entire input voltage range, the SK6052 maintains a typical quiescent current of 75μA, making it well-suited for consumer and networking applications that demand high output current with low quiescent power consumption. The series offers a wide output voltage range of 0.8V to 3.6V (fixed voltage versions) or 0.6V to 5.0V (adjustable version). The SK6052 series incorporates over-temperature protection and over-current protection to ensure stable operation under abnormal conditions. The device is available in DFN2x2-6L, SOT23-5L, and SOT89-5L packages. Standard products are lead-free and halogen-free.
Applications
- Portable and battery-powered devices
- Computers and graphics cards
- Network communication equipment
Key features
- Input voltage: 1.5V~6.5V
- Fixed output range: 0.8~3.6V (customizable in 0.1V steps)
- Adjustable output range: 0.6~5.0V
- Output current: up to 1A
- Ultra-low dropout voltage: 160mV @ VOUT = 1.8V, IOUT = 500mA
- Quiescent current: 75μA typical
- Power supply rejection ratio: 65dB @ VOUT = 1.8V, 1KHz, IOUT = 30mA
