SuntekDatasheet (PDF)

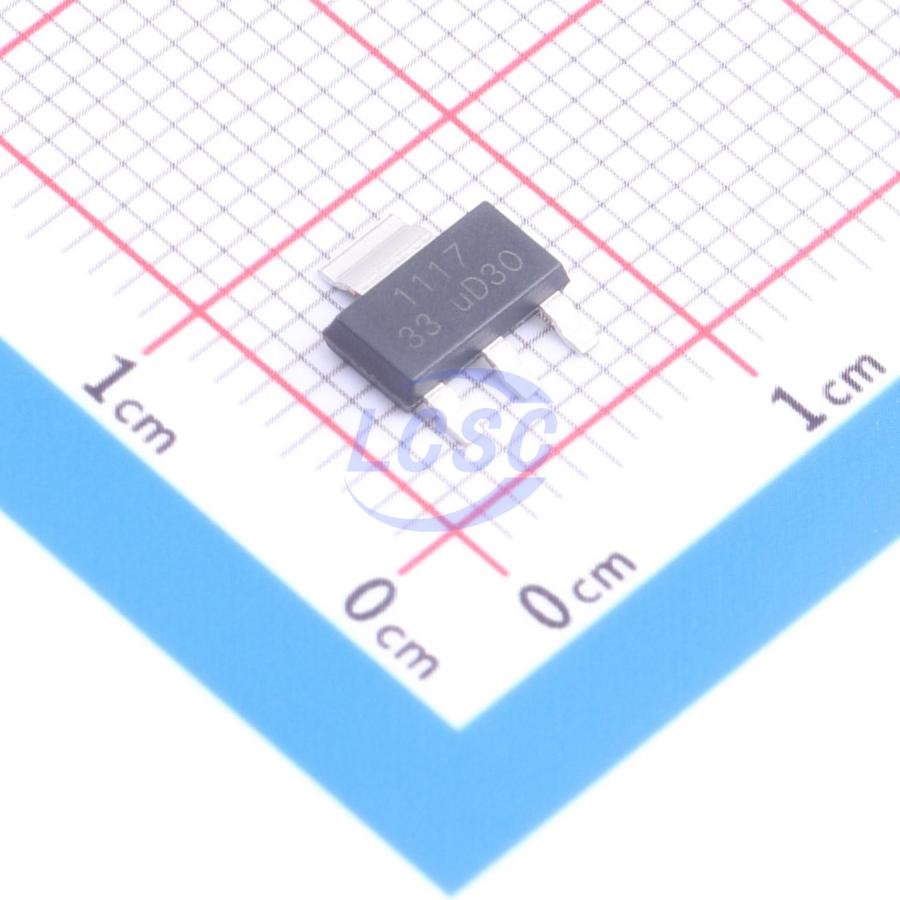

SK6117C-33LR
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
- Manufacturer
- Suntek
- Manufacturer part #
- SK6117C-33LR
- Store part #
- C52034512
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,295 in stock
#C52034512
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.42 | ₹57.10 |
| 50+ | ₹9.02 | ₹451.00 |
| 150+ | ₹7.82 | ₹1,173.00 |
| 500+ | ₹6.92 | ₹3,460.00 |
| 2,500+ | ₹6.20 | ₹15,500.00 |
| 5,000+ | ₹5.85 | ₹29,250.00 |
5 × ₹11.42
₹57.10
excl. GST
₹67.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SK6117C-33LR
₹57.10 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3.5mA
- Output Configuration
- Positive
- Output Current
- 800mA
- Operating Voltage
- 18V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.248 g
Overview
The SK6117C series are low-dropout linear regulators optimized for low-voltage applications with demanding transient response and minimum input voltage requirements. The devices provide current limiting and thermal shutdown protection. The internal circuitry incorporates a trimmed bandgap reference, ensuring output voltage accuracy within ±2%. The thermal shutdown function prevents excessive junction temperature caused by the combined effect of high current and elevated ambient temperature. The devices are available in the SOT223 package.
Applications
- USB devices
- TVs & monitors
- Add-in cards
- Motherboards
Key features
- Maximum input voltage: 18V
- Rated output current: 0.8A
- Current limit: 1A
- Output noise (10Hz to 10kHz): 0.003% × VOUT
- Power supply rejection ratio: 70dB @120Hz
- Typical quiescent current: 3.5mA
- Output voltage accuracy: ±2%
- On-chip thermal shutdown
- No external components required
- Compatible with low-ESR ceramic capacitors
