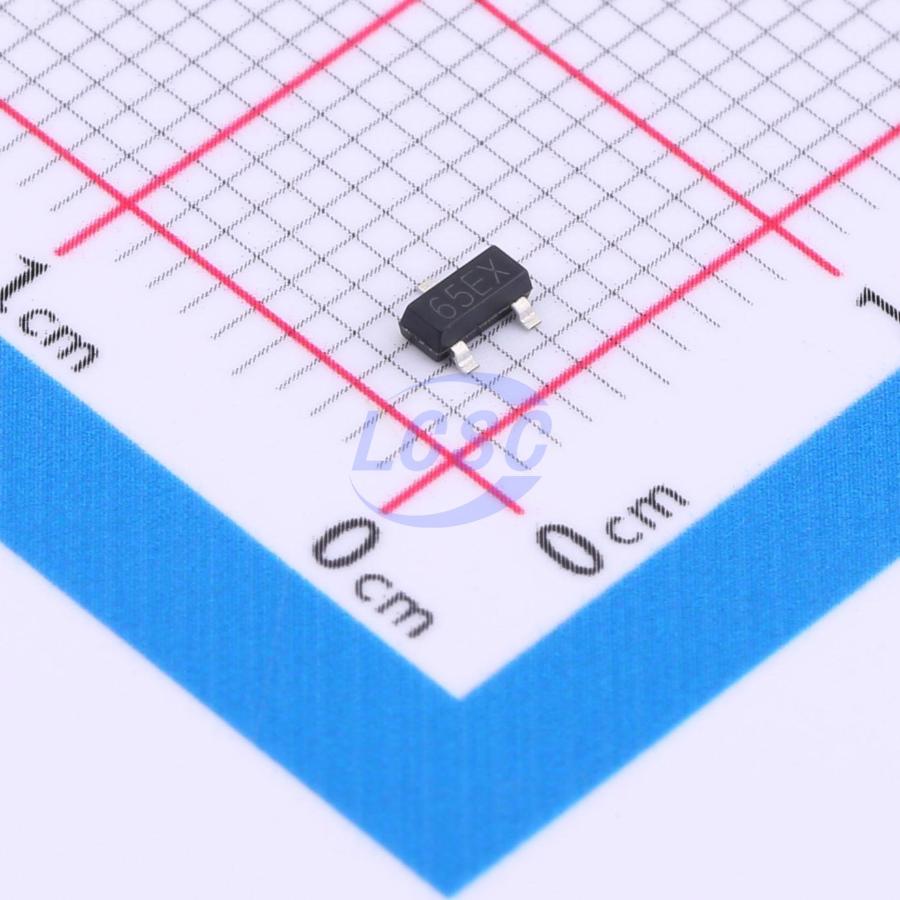

Suntek

SK6206-15NR

1.5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23RoHSActive

300mA Low Power LDO

Manufacturer: Suntek
Manufacturer part #: SK6206-15NR
Store part #: C2986166
Package / case: SOT-23
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,390 in stock

#C2986166

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
10+	₹7.05	₹70.50
100+	₹5.60	₹560.00
300+	₹4.88	₹1,464.00
3,000+	₹4.34	₹13,020.00
6,000+	₹3.90	₹23,400.00
9,000+	₹3.68	₹33,120.00

Quantity (min 10, multiples of 10)

10 × ₹7.05

₹70.50

excl. GST

₹83.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SK6206-15NR

₹70.50 for 10 + GST

Specifications

Output Voltage: 1.5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 3uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 7V
Output Type: Fixed
Features: Short Circuit Protection;Over Current Protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.039 g

Overview

SK6206 series are a highly precise, lower regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small consumption, 3 terminal, positive voltage dropout voltage. The SK6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s feedback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SK6206 series are available in SOT - 23 packages.
