SuntekDatasheet (PDF)

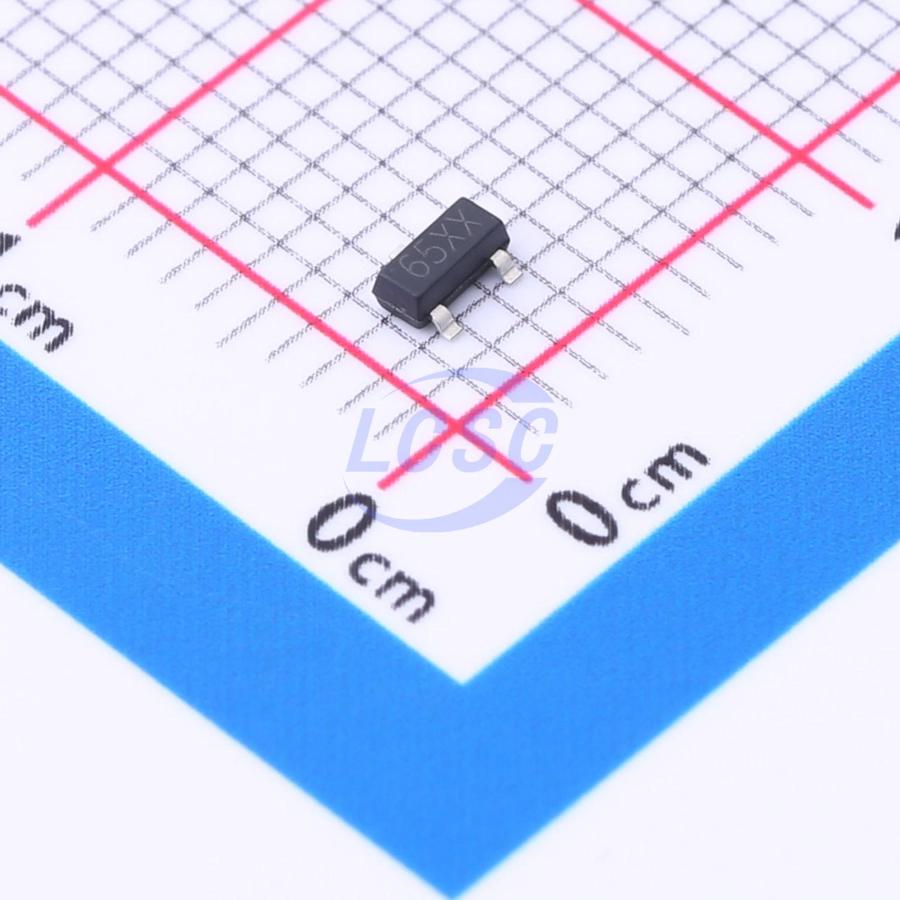

SK6206-28NR
2.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- Suntek
- Manufacturer part #
- SK6206-28NR
- Store part #
- C2682764
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C2682764
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.63 | ₹66.30 |
| 100+ | ₹5.27 | ₹527.00 |
| 300+ | ₹4.59 | ₹1,377.00 |
| 3,000+ | ₹3.96 | ₹11,880.00 |
| 6,000+ | ₹3.55 | ₹21,300.00 |
| 9,000+ | ₹3.35 | ₹30,150.00 |
10 × ₹6.63
₹66.30
excl. GST
₹78.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6206-28NR
₹66.30 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
SK6206 series are a highly precise, lower regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small consumption, 3 terminal, positive voltage dropout voltage. The SK6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s feedback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SK6206 series are available in SOT-23, SOT23-3 and SOT-89 packages.
Applications
- Battery-powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
Key features
- Input voltage : 2.5V~7V
- Output range : 1.2V~5.0V
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- Low Quiescent Current: 3uA at 6V
- PSRR: 50dB @ 1KHz
- Output voltage accuracy: tolerance ±2%
