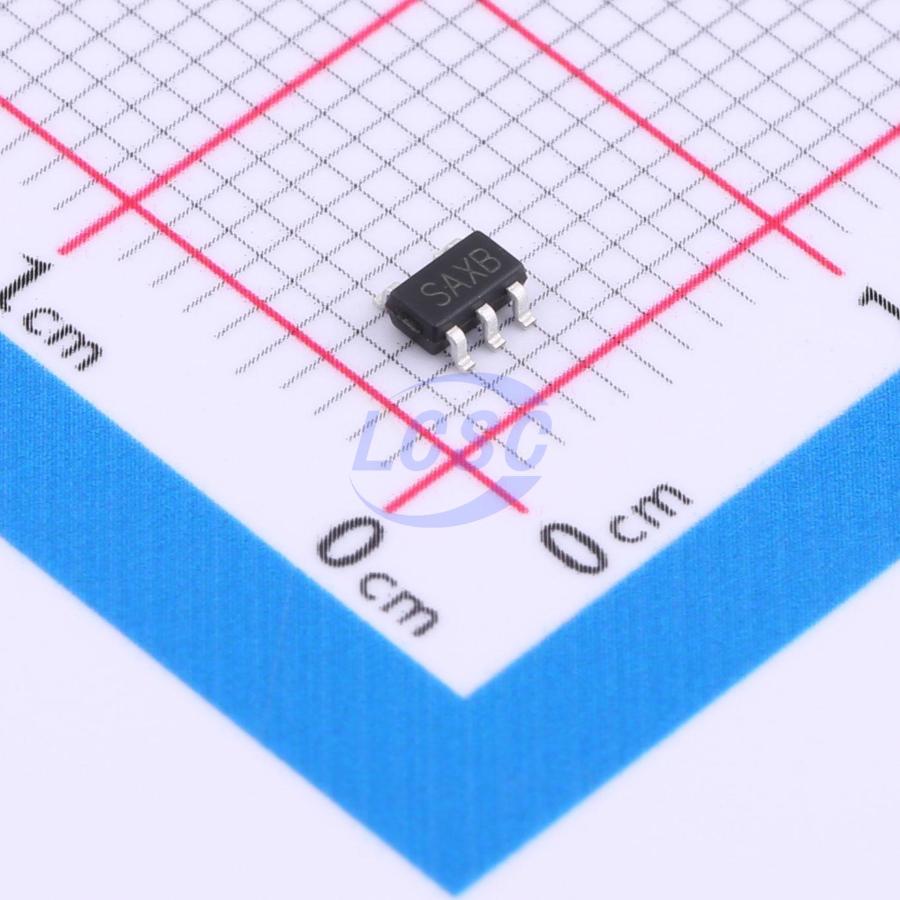

SK6216CMM5R-33
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
15V,500mA, Low Power Consumption LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6216CMM5R-33
- Store part #
- C2986204
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,520 in stock
#C2986204
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.00 | ₹75.00 |
| 50+ | ₹13.16 | ₹658.00 |
| 150+ | ₹12.37 | ₹1,855.50 |
| 500+ | ₹11.39 | ₹5,695.00 |
| 3,000+ | ₹10.95 | ₹32,850.00 |
| 6,000+ | ₹10.69 | ₹64,140.00 |
5 × ₹15.00
₹75.00
excl. GST
₹88.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6216CMM5R-33
₹75.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 15V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The SK6216C series is a group of positive voltage output, three-pin regulators, it provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SK6216C consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Load Transient response has improved in comparison to the existing series. SOT89, SOT23-3 and SOT23-5 packages are available.
Applications
- Battery-powered equipment
- Hand-Hold Equipment
- GPS Receivers
- Wireless LAN
Key features
- Low voltage drop: 0.26V@100mA&VOUT=3.3V
- High input voltage: 15V
- Low temperature coefficient
- Large Output Current: 500mA
- Low Quiescent Current: 2.0uA
- Output voltage accuracy: tolerance ±2%
- Built-in current limiter
- SOT89, SOT23-3 and SOT23-5 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SK6215ES5-33#C52034529Suntek · SOT-23-5L | Suntek | SOT-23-5L | 945 | ₹19.02 · 945 in stock | View | |
