SuntekDatasheet (PDF)

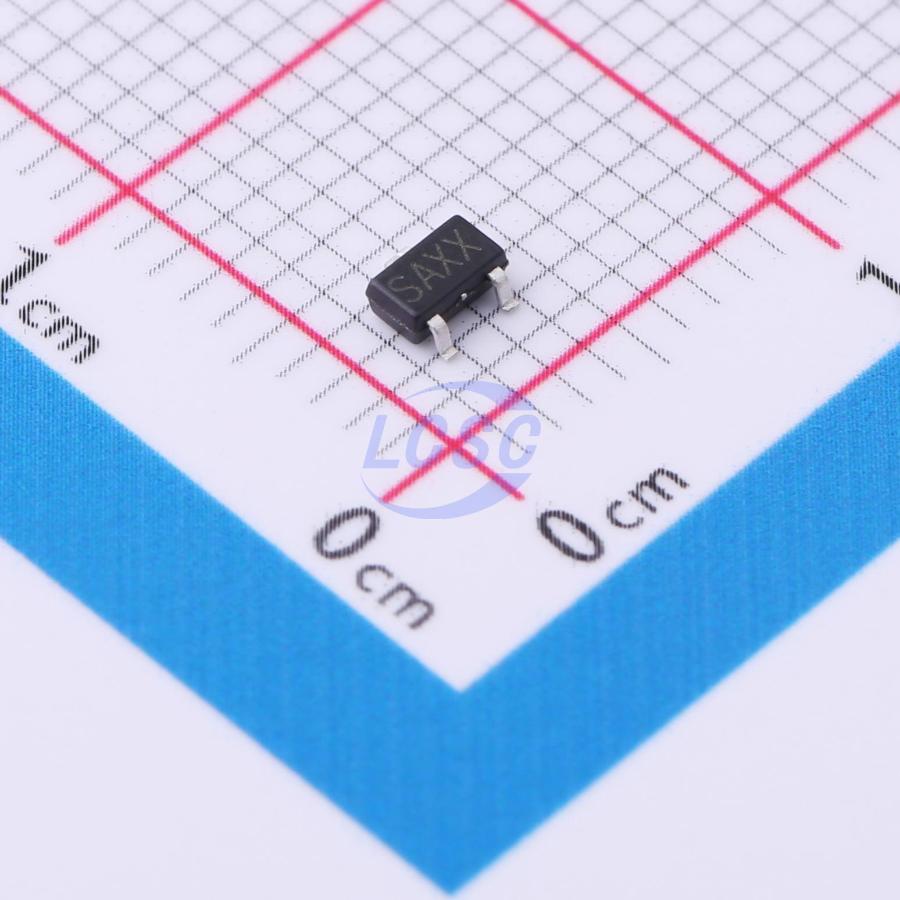

SK6216CMMR-33
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
15V,500mA, Low Power Consumption LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6216CMMR-33
- Store part #
- C2986196
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,354 in stock
#C2986196
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹24.82 | ₹24.82 |
| 10+ | ₹19.61 | ₹196.10 |
| 30+ | ₹17.38 | ₹521.40 |
| 100+ | ₹14.59 | ₹1,459.00 |
| 500+ | ₹13.35 | ₹6,675.00 |
| 1,000+ | ₹12.61 | ₹12,610.00 |
1 × ₹24.82
₹24.82
excl. GST
₹29.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6216CMMR-33
₹24.82 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 15V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The SK6216C series is a group of positive voltage output, three-pin regulators, it provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SK6216C consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Load Transient response has improved in comparison to the existing series. SOT89, SOT23-3 and SOT23-5 packages are available.
Applications
- Battery-powered equipment
- Hand-Hold Equipment
- GPS Receivers
- Wireless LAN
Key features
- Low voltage drop: 0.26V@100mA&VOUT=3.3V
- High input voltage: 15V
- Low temperature coefficient
- Large Output Current: 500mA
- Low Quiescent Current: 2.0uA
- Output voltage accuracy: tolerance ±2%
- Built-in current limiter
- SOT89, SOT23-3 and SOT23-5 packages
