SuntekDatasheet (PDF)

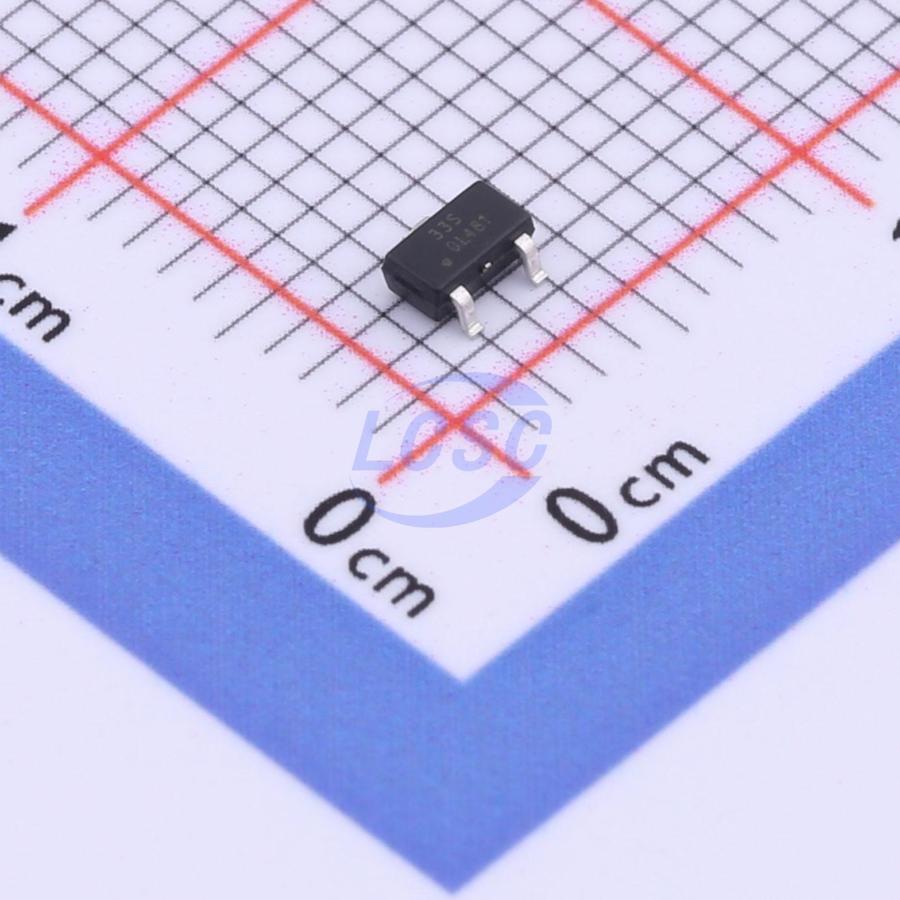

SK6512SS3-33
3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
High Voltage, Low Power LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6512SS3-33
- Store part #
- C5120323
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,525 in stock
#C5120323
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.69 | ₹103.45 |
| 50+ | ₹16.34 | ₹817.00 |
| 150+ | ₹14.49 | ₹2,173.50 |
| 500+ | ₹12.16 | ₹6,080.00 |
| 3,000+ | ₹11.13 | ₹33,390.00 |
| 6,000+ | ₹10.50 | ₹63,000.00 |
5 × ₹20.69
₹103.45
excl. GST
₹122.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6512SS3-33
₹103.45 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
The SK6512S is a high voltage, low power consumption and high performance LDO. The family uses an advanced CMOS process and a PMOSFET pass device to achieve fast start-up, with high output voltage accuracy. The SK6512S is stable with a 1.0 μF~10 μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 2% over all load, line, process, and temperature variations.
Key features
- Wide Input Voltage Range: up to 36 V
- Output Current: 200 mA
- Standard Fixed Output Voltage Options: 1.8 V, 2.5 V, 3.0 V, 3.3 V, 3.6 V, and 5.0 V
- Other Output Voltage Options Available on Request
- Low IQ: 1.5 μA
- Low Dropout Voltage
- Short current protection: 100 mA
- Excellent Load / Line Transient Response
- Line Regulation: 0.01 %/v typical
- Package: DFN1×1-4, SOT23-3, SOT23-5, SOT89-3
