SuntekDatasheet (PDF)

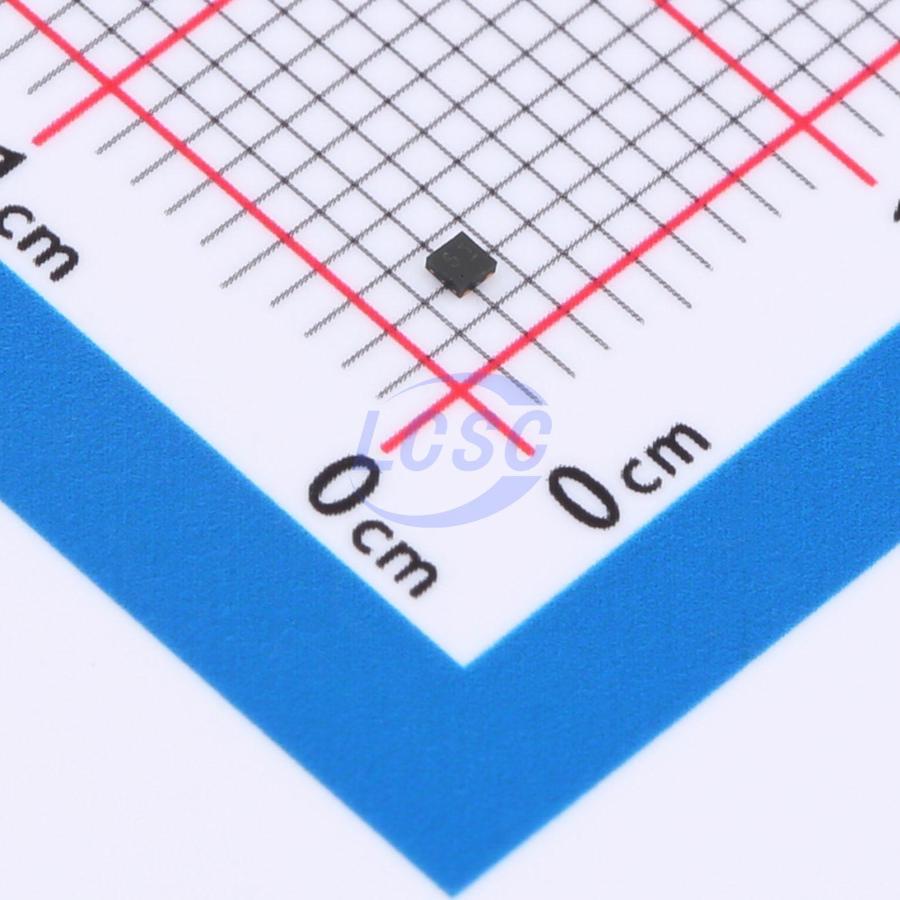

SK6513SD4-50
5V Positive Fixed DFN1x1-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN1x1-4RoHSActive
High Voltage, Low Power LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6513SD4-50
- Store part #
- C39673733
- Package / case
- DFN1x1-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,700 in stock
#C39673733
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.51 | ₹212.55 |
| 50+ | ₹33.21 | ₹1,660.50 |
| 150+ | ₹29.21 | ₹4,381.50 |
| 500+ | ₹24.24 | ₹12,120.00 |
| 2,500+ | ₹22.03 | ₹55,075.00 |
| 5,000+ | ₹20.69 | ₹1,03,450.00 |
5 × ₹42.51
₹212.55
excl. GST
₹250.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SK6513SD4-50
₹212.55 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 36V
- Features
- Enable control;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.008 g
Overview
The SK6513S is a high voltage, low power consumption and high performance LDO. The family uses an advanced CMOS process and a PMOSFET pass device to achieve fast start- up, with high output voltage accuracy. The SK6513S is stable with a 1μF ~ 10μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst- case accuracy of 2% over all load, line, process, and temperature variations. The SK6513S is available in standard DFN1×1 - 4L, SOT23 - 3L, SOT23 - 5L, and SOT89 - 3L package. Standard products are Pb - free and Halogen - free.
Applications
- Battery powered equipment
- Voltage regulator for LAN cards
- Wireless communication equipment
- Audio/Video equipment
Key features
- Wide Input Voltage Range: 2.5 ~ 36V
- Up to 300mA Load Current
- Standard Fixed Output Voltage Options: 1.8V, 2.5V, 3.0V, 3.3V, 3.6V and 5.0V
- Other Output Voltage Options Available on Request
- Low IQ: 2.5μA
- Low Dropout Voltage: 330mV@100mA, when VOUT = 3.0V
- High PSRR: 60dB@1KHz
- Excellent Load/Line Transient Response
