SuntekDatasheet (PDF)

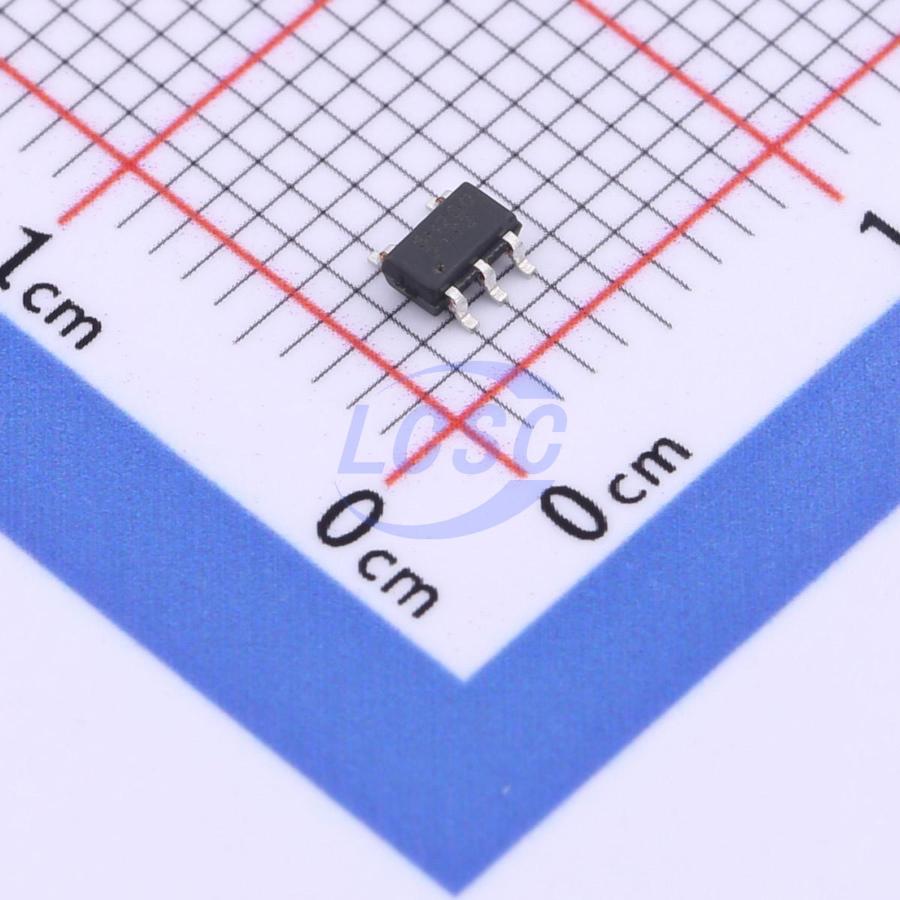

SK6513SS5E-50
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
High Voltage, Low Power LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6513SS5E-50
- Store part #
- C5120326
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,865 in stock
#C5120326
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.68 | ₹128.40 |
| 50+ | ₹20.10 | ₹1,005.00 |
| 150+ | ₹17.71 | ₹2,656.50 |
| 500+ | ₹14.72 | ₹7,360.00 |
| 3,000+ | ₹12.97 | ₹38,910.00 |
| 6,000+ | ₹12.17 | ₹73,020.00 |
5 × ₹25.68
₹128.40
excl. GST
₹151.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6513SS5E-50
₹128.40 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.6uA
- Output Configuration
- Positive
- Operating Voltage
- 45V
- Output Current
- 350mA
- Output Type
- Fixed
- Features
- Enable control;Thermal shutdown;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The SK6513S is a high voltage, low power consumption and high performance LDO. The family uses an advanced CMOS process and a PMOSFET pass device to achieve fast start- up, with high output voltage accuracy. The SK6513S is stable with a 1μF ~ 10μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst- case accuracy of 2% over all load, line, process, and temperature variations. The SK6513S is available in standard DFN1×1 - 4L, SOT23 - 3L, SOT23 - 5L, and SOT89 - 3L package. Standard products are Pb - free and Halogen - free.
Applications
- Battery powered equipment
- Voltage regulator for LAN cards
- Wireless communication equipment
- Audio/Video equipment
Key features
- Wide Input Voltage Range: 2.5 ~ 36V
- Up to 300mA Load Current
- Standard Fixed Output Voltage Options: 1.8V, 2.5V, 3.0V, 3.3V, 3.6V and 5.0V
- Other Output Voltage Options Available on Request
- Low IQ: 2.5μA
- Low Dropout Voltage: 330mV@100mA, when VOUT = 3.0V
- High PSRR: 60dB@1KHz
- Excellent Load/Line Transient Response
