SuntekDatasheet (PDF)

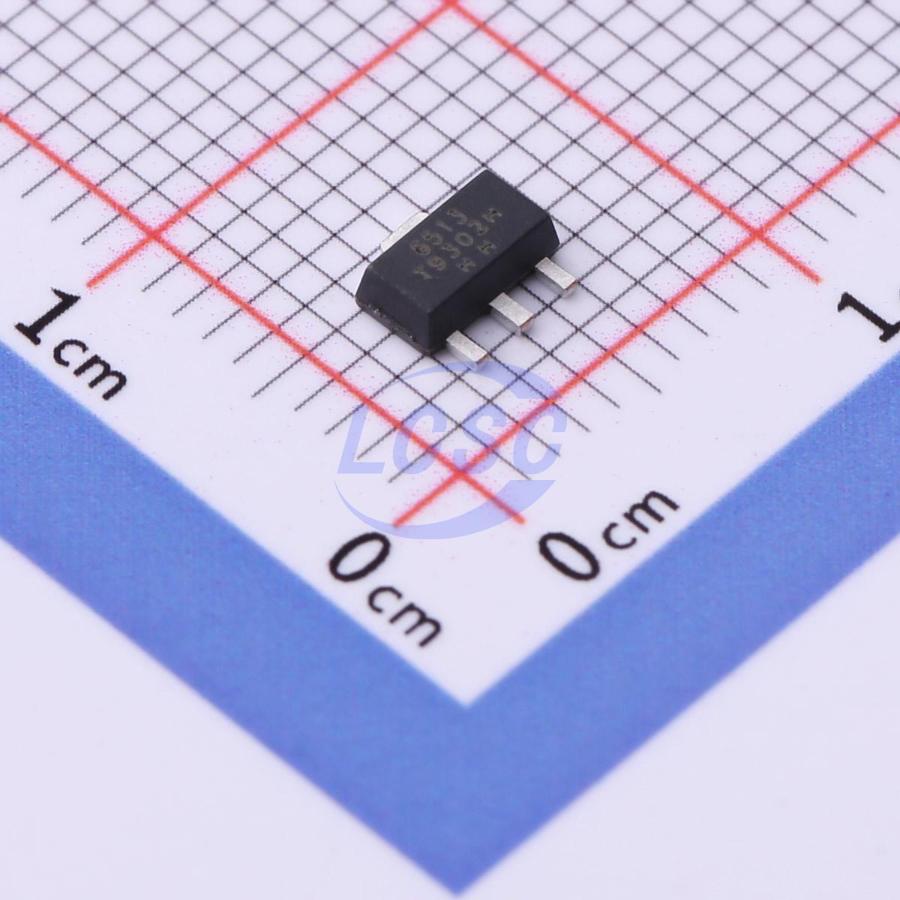

SK6513T3A-33
3.3V Positive Fixed SOT-89-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3LRoHSActive
40V, Low Quiescent Current, High Reliability LDO
- Manufacturer
- Suntek
- Manufacturer part #
- SK6513T3A-33
- Store part #
- C2986205
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,155 in stock
#C2986205
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.25 | ₹116.25 |
| 50+ | ₹17.99 | ₹899.50 |
| 150+ | ₹15.74 | ₹2,361.00 |
| 500+ | ₹12.94 | ₹6,470.00 |
| 2,500+ | ₹11.68 | ₹29,200.00 |
| 5,000+ | ₹10.94 | ₹54,700.00 |
5 × ₹23.25
₹116.25
excl. GST
₹137.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SK6513T3A-33
₹116.25 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Over Current Protection;Built-in soft-start;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
The SK6513 series is a high accuracy, high input voltage low quiescent current, high speed, and low dropout liner regulator with high ripple rejection. The input voltage is up to 40V and load current is upto 300mA at VOUT = 5V & VIN = 7V. The device is manufactured with BCD process. The SK6513 offers over-current limit, soft start and over temperature protection to ensure the device working in well conditions. The SK6513 regulators is available in standard SOT89-3L, SOT23-5L and SOT23-3L packages. Standard products are Pb-free and Halogen-free.
Applications
- Smart electric meter
- In-car entertainment
- Electric bicycle
Key features
- Input voltage: 4.75V ~ 40V
- Output voltage: 1.8V ~ 5.7V
- Output accuracy: < ±2%
- Output current: 150mA (Typ.) Up to 300mA @ VIN = 7V, VOUT = 5V, SK6513T3A
- PSRR: 60dB @ 100Hz
- Dropout voltage: < 500mV @ IOUT = 100mA
- Quiescent current: 4.2μA @ VIN = 12V (Typ.)
- ESD HBM: 8KV
- Recommend capacitor: 10μF
