Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,560 in stock
#C5155390
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.68 | ₹56.80 |
| 100+ | ₹4.52 | ₹452.00 |
| 300+ | ₹3.96 | ₹1,188.00 |
| 1,000+ | ₹3.52 | ₹3,520.00 |
| 4,000+ | ₹2.99 | ₹11,960.00 |
| 8,000+ | ₹2.82 | ₹22,560.00 |
10 × ₹5.68
₹56.80
excl. GST
₹67.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel

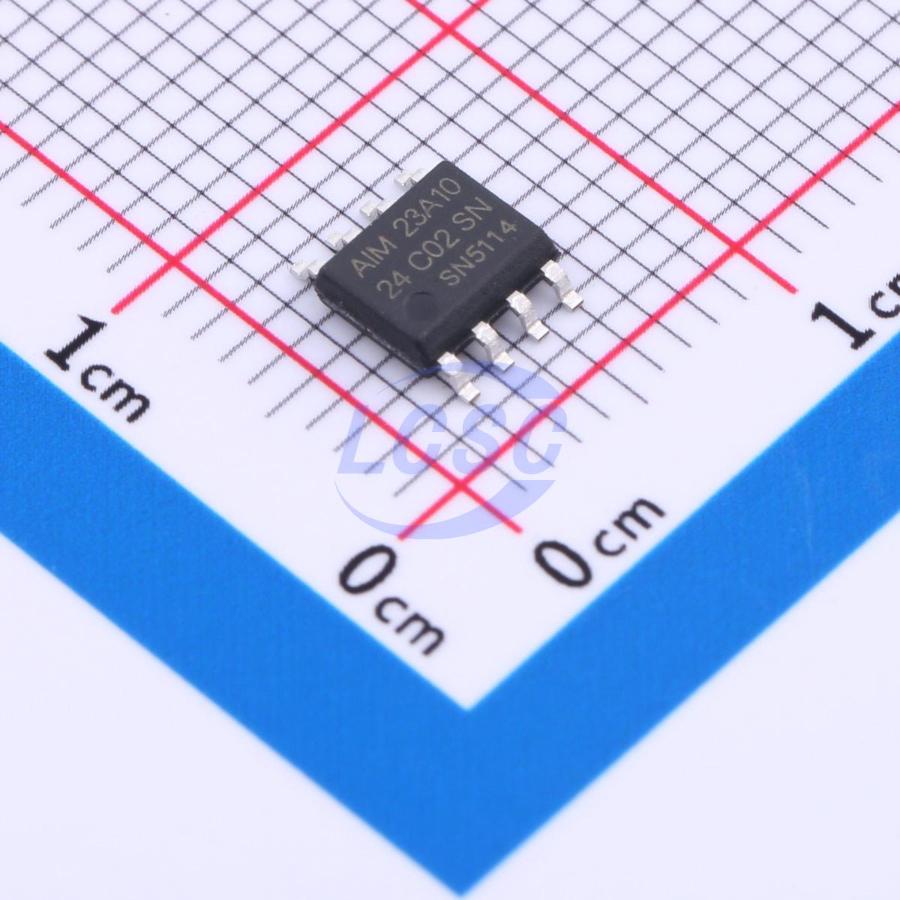

SL24C02D
₹56.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.12 g
Overview
SL24C02/04/08/16/32/64 are electrically erasable PROMs organized as 256/512/1024/2048/4096/8192 x 8-bit respectively, featuring a two-wire serial interface. Operating voltage can be as low as 1.8V, with standby and active currents of 1uA and 1mA respectively. SL24C02/04/08/16/32/64 support page write capability, with page sizes of 8/16/16/16/32/32 bytes respectively. SL24C02/04/08/16/32/64 are available in three package options: 8-pin PDIP, 8-pin SOP, and 5-pin SOT-23-5.
Applications
- Smart instrumentation
- Industrial control
- Home appliances
- Computers
- Laptops
- Automotive electronics
- Communications equipment
Key features
- Low voltage technology - 1mA typical operating current - 1µA typical standby current
- Memory organization - SL24C02, 256 X 8 (2K bits) - SL24C04, 512 X 8 (4K bits) - SL24C08, 1024 X 8 (8K bits) - SL24C16, 2048 X 8 (16K bits) - SL24C32, 4096 X 8 (32K bits) - SL24C64, 8192 X 8 (64K bits)
- 2-wire serial interface, fully compatible with I2C bus
- I2C clock frequency up to 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V)
- Schmitt trigger input noise suppression
- Hardware data write protection
- Internal write cycle (5 ms max)
- Byte write capability
- Byte, random, and sequential read capability
- Auto-increment address
- ESD protection >2.5kV
- High reliability - Endurance: 1,000,000 write/erase cycles - Data retention: 100 years
- 8-pin DIP and 8-pin SOP packages
- Lead-free process, RoHS compliant
