Slkor

SL4275

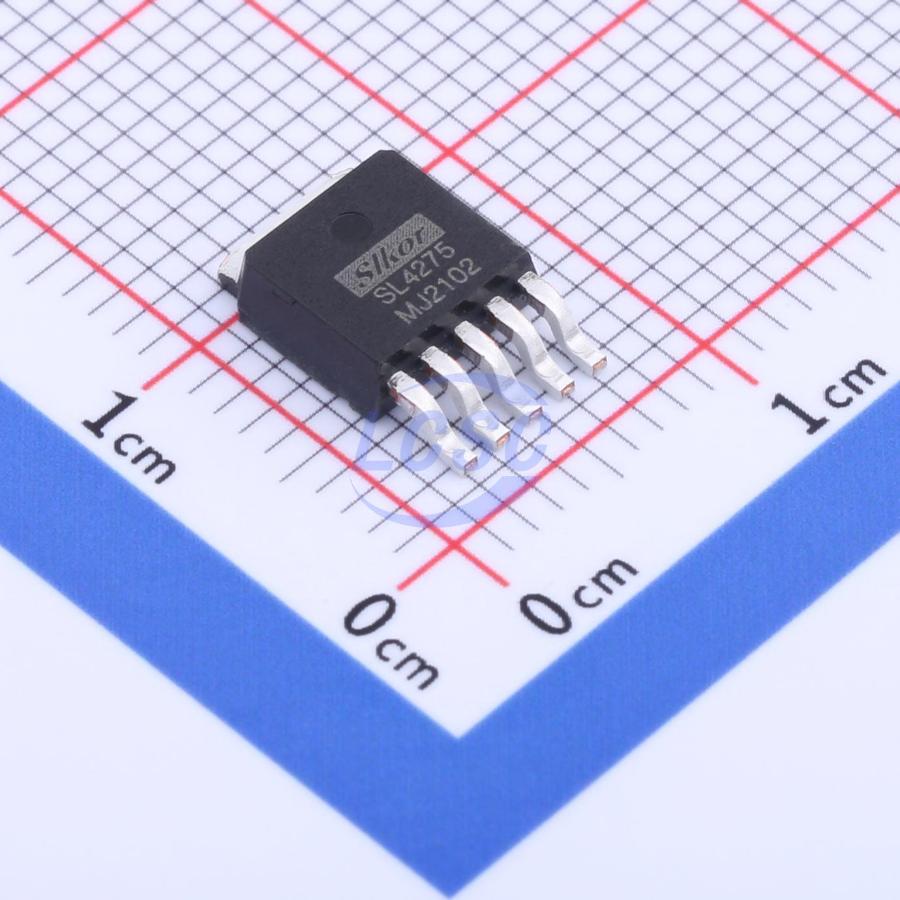

Linear Voltage Regulator IC Positive Fixed 1 Output 450mA TO-252-5

TO-252-5RoHSActive

5-pin TO package monolithic integrated low-dropout fixed-voltage regulator

Manufacturer: Slkor
Manufacturer part #: SL4275
Store part #: C2690318
Package / case: TO-252-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

804 in stock

#C2690318

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
1+	₹122.31	₹122.31
10+	₹98.85	₹988.50
30+	₹87.12	₹2,613.60
100+	₹75.40	₹7,540.00
500+	₹61.27	₹30,635.00
1,000+	₹57.58	₹57,580.00

Quantity (min 1)

1 × ₹122.31

₹122.31

excl. GST

₹144.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SL4275

₹122.31 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+150℃@(Tj)
Supply Current (Iq): 80uA
Output Configuration: Positive
Output Current: 450mA
Operating Voltage: 55V
Features: Short Circuit Protection;Thermal shutdown;Reset function
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.415 g

Overview

SL4275 is a monolithic integrated low-dropout fixed voltage regulator in a 5-pin TO package. Input voltage up to 55V is regulated to a 5.0V output voltage VQ. The device can drive a 450mA load with short-circuit protection and over-temperature protection. When the output voltage VQ falls below a typical value of 4.65V, a low-level reset signal is generated at the RQ pin, and the reset delay time can be set via the delay capacitor on the D pin.
