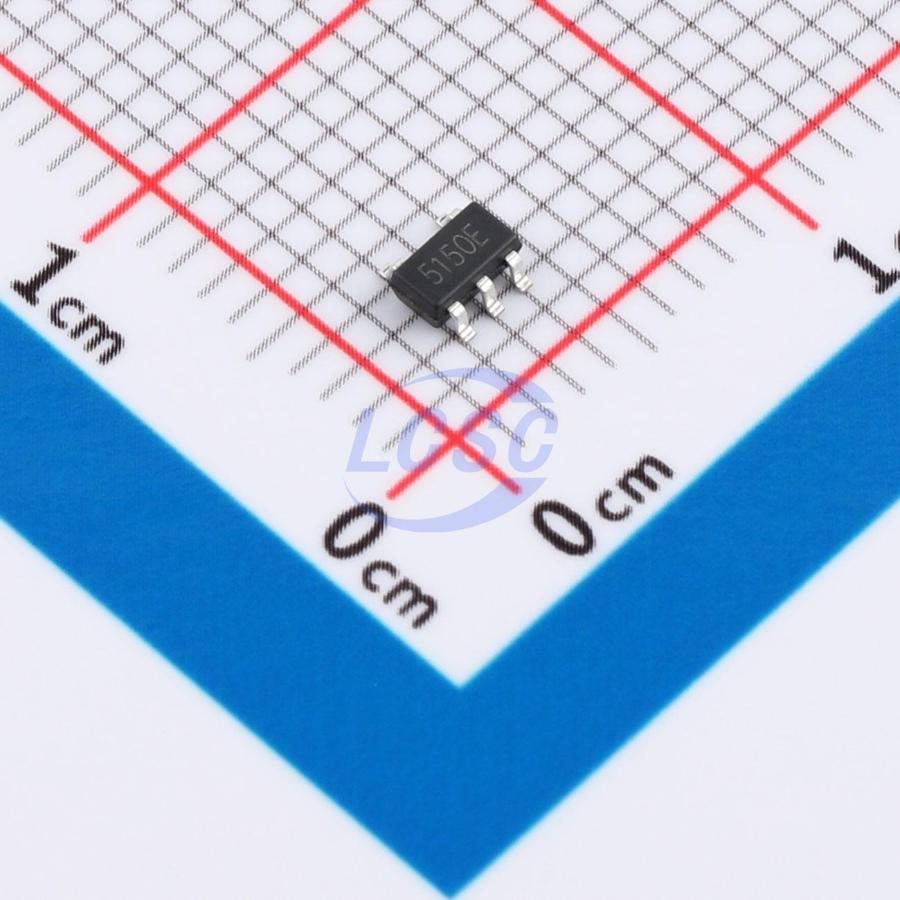

SL51M50SE
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
- Manufacturer
- Slkor
- Manufacturer part #
- SL51M50SE
- Store part #
- C53207084
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C53207084
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.24 | ₹96.20 |
| 50+ | ₹15.28 | ₹764.00 |
| 150+ | ₹13.31 | ₹1,996.50 |
| 500+ | ₹11.83 | ₹5,915.00 |
| 3,000+ | ₹10.64 | ₹31,920.00 |
| 6,000+ | ₹10.04 | ₹60,240.00 |
5 × ₹19.24
₹96.20
excl. GST
₹113.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL51M50SE
₹96.20 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 15V
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.068 g
Overview
The SL51 series is a low-dropout, ultra-low-power linear regulator with an enable function, supporting input voltages up to 15V, a quiescent current of 1μA, high PSRR, and a maximum output current of 500mA. The series responds rapidly to input voltage transients and load current transients, with guaranteed no overshoot voltage during startup and short-circuit recovery. The SL51 series provides short-circuit protection, current limiting protection, and over-temperature protection.
Applications
- Battery-powered devices
- Gas meters, electricity meters, and water meters
- Microcontroller applications
Key features
- High input voltage rating: up to 15V
- Maximum output current: 500mA
- Standard fixed output voltage options: 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, 5.0V
- Low quiescent current: 1μA
- Power supply rejection ratio: 80dB@1KHz
- Low dropout voltage: 120mV @ 100mA
- Low output voltage accuracy: ±2%
- Fast transient response
- Short-circuit protection
- Current limiting protection
- Thermal shutdown protection
- Available packages: SOT-23-3, SOT-89, SOT-23-5
