SlkorDatasheet (PDF)

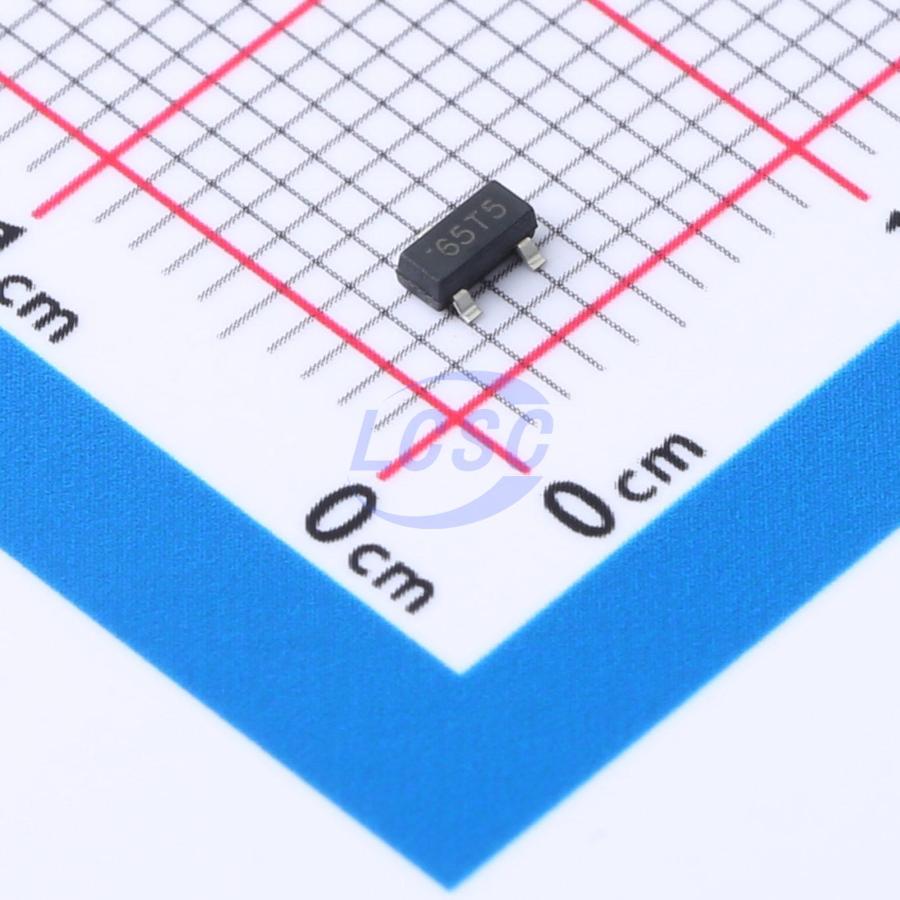

SL6206-25NR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3
SOT-23-3RoHSActive
300mA Ultra-low Noise and Ultra-fast Response LDO Linear Voltage Regulator
- Manufacturer
- Slkor
- Manufacturer part #
- SL6206-25NR
- Store part #
- C5375290
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,080 in stock
#C5375290
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.77 | ₹55.40 |
| 200+ | ₹2.16 | ₹432.00 |
| 600+ | ₹1.81 | ₹1,086.00 |
| 3,000+ | ₹1.61 | ₹4,830.00 |
| 9,000+ | ₹1.44 | ₹12,960.00 |
| 21,000+ | ₹1.35 | ₹28,350.00 |
20 × ₹2.77
₹55.40
excl. GST
₹65.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL6206-25NR
₹55.40 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.038 g
Overview
The SL6206 series are CMOS step-down voltage regulators with high ripple rejection, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices feature very low quiescent current (70μA Typ.) and can deliver 300mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and low quiescent current, these devices are ideal for battery-powered applications requiring extended battery life, such as computers, consumer electronics, and industrial equipment.
Applications
- CDMA/GSM mobile phones
- PDAs/MP3
- WLAN and Bluetooth devices
- Cordless phones
- Battery-powered systems
Key features
- Output range: 1.2V - 3.6V
- 300mA output current
- High PSRR: 70dB at 1kHz
- Ultra-low quiescent current: 70uA (typical)
- Less than 1uA in shutdown mode
- Junction temperature operating range: -40°C to +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL9193M25SA#C5155380Slkor · SOT-23 | Slkor | SOT-23 | 2,290 | ₹9.92 · 2,290 in stock | View |
 | SL9013M25SA#C5155376Slkor · SOT-23 | Slkor | SOT-23 | 2,390 | ₹9.62 · 2,390 in stock | View |
| SL9350L25SA#C7543318Slkor · SOT-23 | Slkor | SOT-23 | On request | Price on request | Quote | |
| SL9350L25SC#C7543323Slkor · SOT-23-3 | Slkor | SOT-23-3 | On request | Price on request | Quote | |
