SlkorDatasheet (PDF)

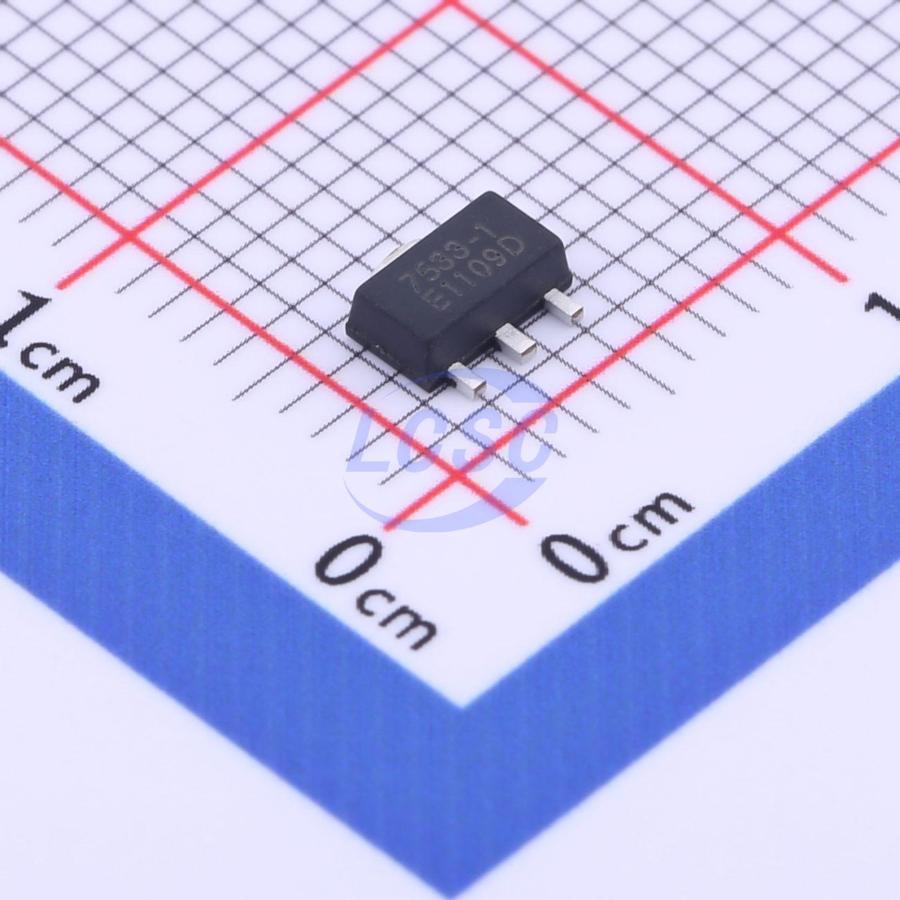

SL7533-8
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
SOT-89-3ROHS3 CompliantActive
100mA low-power consumption LDO
- Manufacturer
- Slkor
- Manufacturer part #
- SL7533-8
- Store part #
- C2826489
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C2826489
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.98 | ₹89.80 |
| 100+ | ₹7.21 | ₹721.00 |
| 300+ | ₹6.34 | ₹1,902.00 |
| 1,000+ | ₹5.60 | ₹5,600.00 |
| 5,000+ | ₹5.07 | ₹25,350.00 |
| 10,000+ | ₹4.80 | ₹48,000.00 |
10 × ₹8.98
₹89.80
excl. GST
₹105.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SL7533-8
₹89.80 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
The SL 75xx is a low-dropout linear regulator fabricated in CMOS technology. It supports a maximum output current of 100mA and a maximum input voltage of 36V. Several fixed output voltage options are available, ranging from 2.5V to 5.0V. The CMOS process ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7533-1#C22392326Slkor · SOT-89 | Slkor | SOT-89 | 50 | ₹6.48 · 50 in stock | View |
 | SL54M33SQ#C5122502Slkor · SOT-89 | Slkor | SOT-89 | 970 | ₹19.42 · 970 in stock | View |
 | SL7333-8#C2826484Slkor · SOT-89-3 | Slkor | SOT-89-3 | 5 | ₹16.51 · 5 in stock | View |
 | SL75U33#C53207118Slkor · SOT-89 | Slkor | SOT-89 | 460 | ₹14.53 · 460 in stock | View |
 | SL78L33#C5330401Slkor · SOT-89 | Slkor | SOT-89 | 875 | ₹12.32 · 875 in stock | View |
