SlkorDatasheet (PDF)

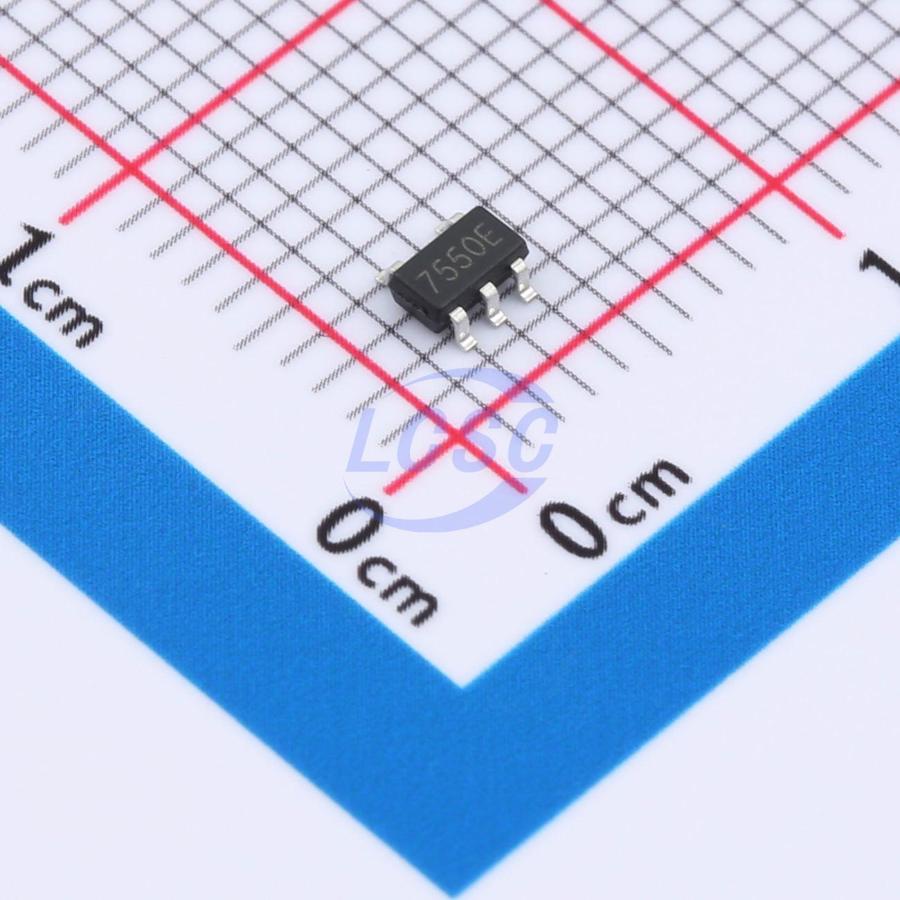

SL75BL50SE
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low Dropout Regulators
- Manufacturer
- Slkor
- Manufacturer part #
- SL75BL50SE
- Store part #
- C19188385
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C19188385
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.62 | ₹96.20 |
| 100+ | ₹7.63 | ₹763.00 |
| 300+ | ₹6.65 | ₹1,995.00 |
| 3,000+ | ₹5.91 | ₹17,730.00 |
| 6,000+ | ₹5.32 | ₹31,920.00 |
| 9,000+ | ₹5.03 | ₹45,270.00 |
10 × ₹9.62
₹96.20
excl. GST
₹113.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL75BL50SE
₹96.20 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The SL75B series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 36V. They are available with several fixed output voltages ranging from 2.8V to 5.0V. The device features integrated short-circuit and thermal shutdown protection.
Applications
- Battery-Powered Equipment
- Ultra Low Power Microcontrollers
- Security Monitoring Equipment
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 36V)
- Quiescent current: ≤2.0μA
- Output voltage tolerance: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
