SlkorDatasheet (PDF)

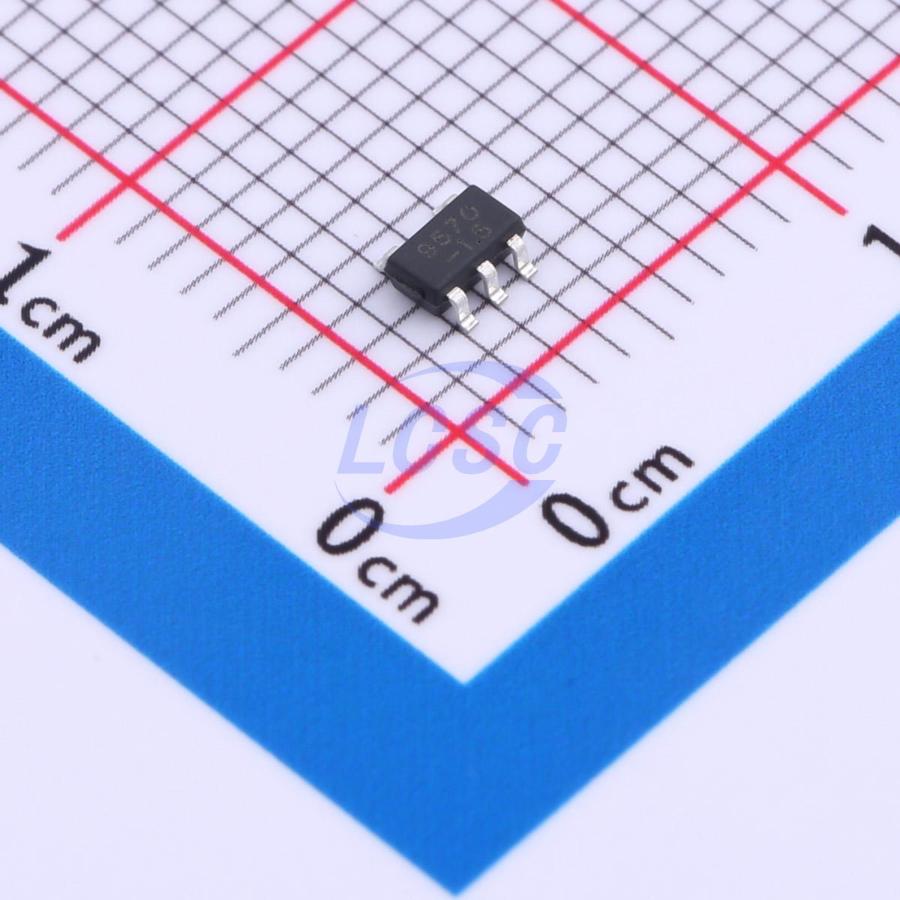

SL9013M15SE
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5RoHSActive
Positive voltage LDO regulator
- Manufacturer
- Slkor
- Manufacturer part #
- SL9013M15SE
- Store part #
- C5155370
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C5155370
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.44 | ₹422.00 |
| 150+ | ₹7.36 | ₹1,104.00 |
| 500+ | ₹6.54 | ₹3,270.00 |
| 3,000+ | ₹5.87 | ₹17,610.00 |
| 6,000+ | ₹5.56 | ₹33,360.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL9013M15SE
₹53.10 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The SL9013 Series are highly precise,low noise,positive voltage LDO regulators manufacturedusingCMOSprocesses.TheSL9013performanceisoptimizedfor battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The SL9013 Series also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The SL9013 Series consumes less than 1μA in shutdown mode and has fast turn-on time less than 50s. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- Battery-Powered Equipment
- CDMA/GSM Cellular Handsets
- Audio/Video Equipment
Key features
- Ultra Low Noise for RF Application
- Ultra Fast Response in Line/Load Transient
- Low Power Consumption: 70μA (Typ.)
- PSRR = 75dB @ 1KHz
- Maximum Output Current: 500mA
- Low Dropout: 100mV @ 100mA at Vout = 3.3V
- Operating Voltage Ranges: 2V to 6.5V
- Over Temperature and Current Limiting Protection
- Thermal Shutdown Protection
