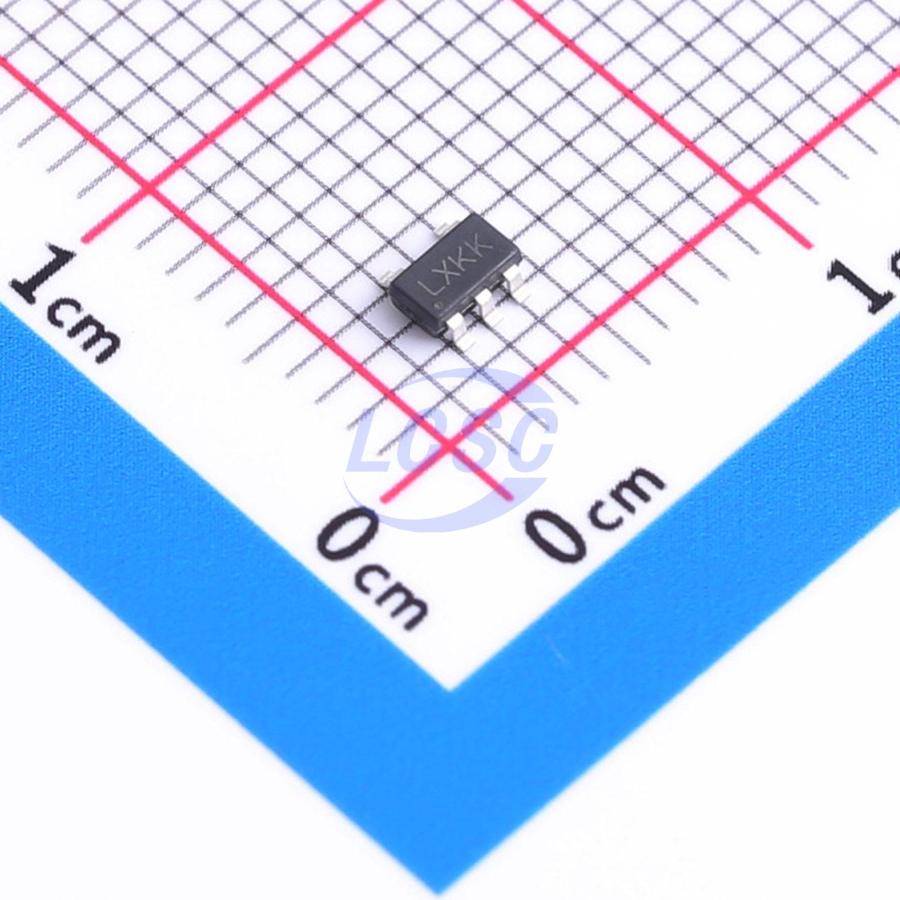

SL9193-18GB

The SL9193 series are high-accuracy, low-noise, fast-response LDO linear regulators manufactured using CMOS process. These regulators integrate a fixed reference voltage, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and fast-response low-dropout performance. The SL9193 series is compatible with ceramic capacitors, which are smaller in size than tantalum capacitors, and does not require a 0.1μF bypass capacitor, saving board space and reducing cost. With high-accuracy output stability and fast transient response to handle load current fluctuations, it is particularly suitable for handheld devices and RF products. By controlling the CE pin on the chip, the output can be shut down. The quiescent current after shutdown is only 0.1μA (typ.), significantly reducing power consumption.

Applications

• Smartphones/mobile phones
• Bluetooth and other RF products
• Digital cameras/camcorders
• Portable consumer devices
• Battery-powered equipment

Key features

• High output voltage accuracy: ±2.5%
• Strong load capability: Iout = 300mA at Vin = 4.3V and Vout = 3.3V
• Selectable output voltage: 1.8V ~ 5.0V
• Ultra-low quiescent current (Typ. = 25μA)
• Ceramic capacitor compatible
• Ultra-low shutdown current (Typ. = 0.1μA)
• Package: SOT23-5
• Good line regulation: Typ. = 0.2%/V
