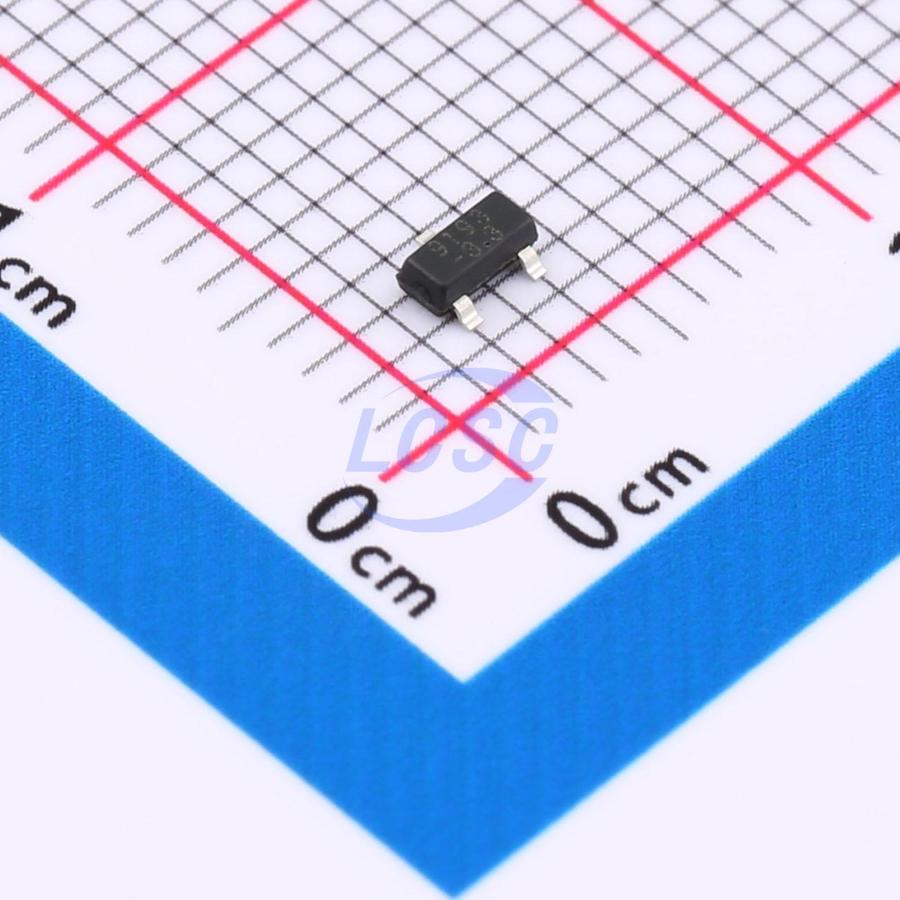

SL9193M33SA
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- Slkor
- Manufacturer part #
- SL9193M33SA
- Store part #
- C5122498
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,510 in stock
#C5122498
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.37 | ₹93.70 |
| 100+ | ₹7.44 | ₹744.00 |
| 300+ | ₹6.48 | ₹1,944.00 |
| 3,000+ | ₹5.76 | ₹17,280.00 |
| 6,000+ | ₹5.17 | ₹31,020.00 |
| 9,000+ | ₹4.90 | ₹44,100.00 |
10 × ₹9.37
₹93.70
excl. GST
₹110.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL9193M33SA
₹93.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The SL9193 Series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The SL9193 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The SL9193 Series also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The SL9193 Series consumes less than 1μA in shutdown mode and has fast turn-on time less than 50μs. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- Battery-Powered Equipment
- CDMA/GSM Cellular Handsets
- Portable Information Appliances
Key features
- Ultra Low Noise for RF Application
- Ultra Fast Response in Line/Load Transient
- Low Power Consumption: 70uA(Typ.)
- PSRR: 70dB@1KHz
- Maximum Output Current: 300mA
- Low Dropout: 130mV @ 100mA at VOUT = 3.3V
- Operating Voltage Ranges: 2V to 6.5V
- Over Temperature Protection
- Current Limiting Protection
- Thermal Shutdown Protection
