SlkorDatasheet (PDF)

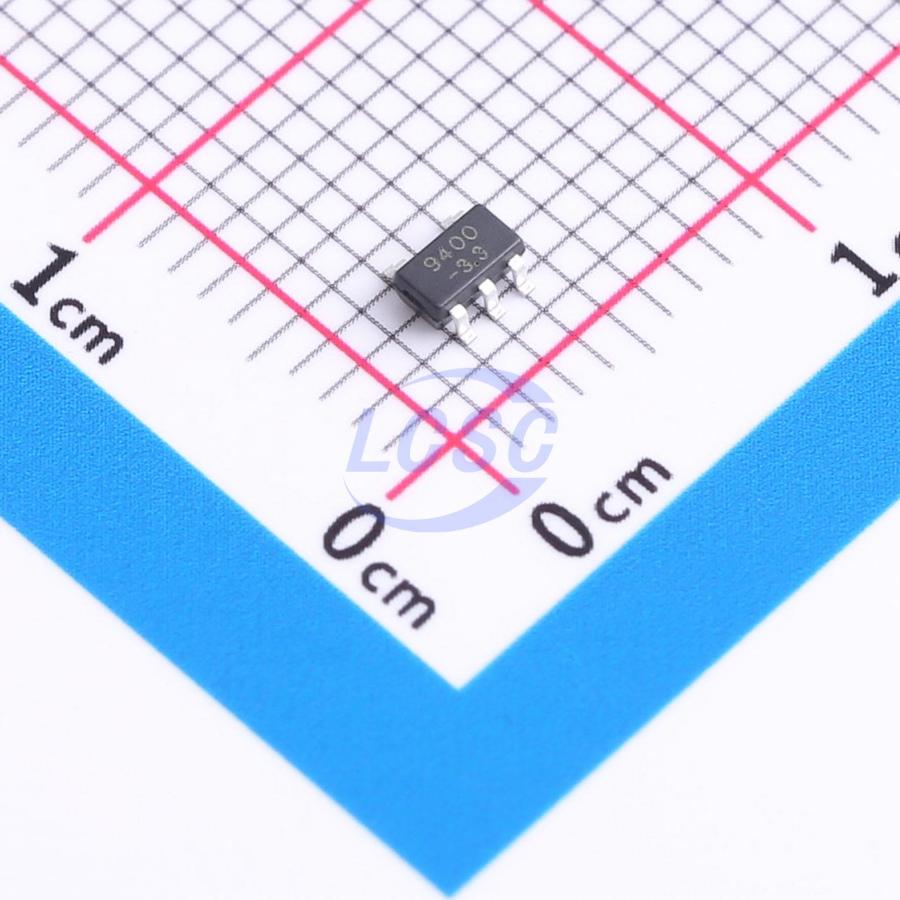

SL9400L33SE
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low Dropout Regulators
- Manufacturer
- Slkor
- Manufacturer part #
- SL9400L33SE
- Store part #
- C20539691
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,095 in stock
#C20539691
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.70 | ₹58.50 |
| 50+ | ₹9.29 | ₹464.50 |
| 150+ | ₹8.08 | ₹1,212.00 |
| 500+ | ₹7.18 | ₹3,590.00 |
| 3,000+ | ₹6.47 | ₹19,410.00 |
| 6,000+ | ₹6.11 | ₹36,660.00 |
5 × ₹11.70
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL9400L33SE
₹58.50 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 400mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The SL9400 is a high accuracy, low noise, high speed CMOS Linear regulator with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input- output voltage is small. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The current limiter's fold- back circuit also operates as a short circuit protection and an output current limiter at the output pin. Standard products are Pb- free and Halogen- free.
Applications
- Radio Control Systems
- Cellphones, Radiophone, Digital Cameras
- Bluetooth, Wireless Handsets
Key features
- Low Quiescent Current: 0.5μA (Typ.)
- Wide Input Voltage Range: 1.5V ~ 8V
- Output Voltage Range: 1.2V ~ 5V (customized by every 0.1V step)
- Maximum Output Current: 400mA @ VOUT = 3.3V
- Low Dropout: 180mV @ IOUT = 100mA
- Low Output Voltage Accuracy: ±2%
- Shut- down Current: < 1μA
- Short Circuit Protection
- Current Limiting Protection
- Available Packages: SOT- 89, SOT- 23- 3, SOT- 23- 5 and DFN1x1- 4L Packages
