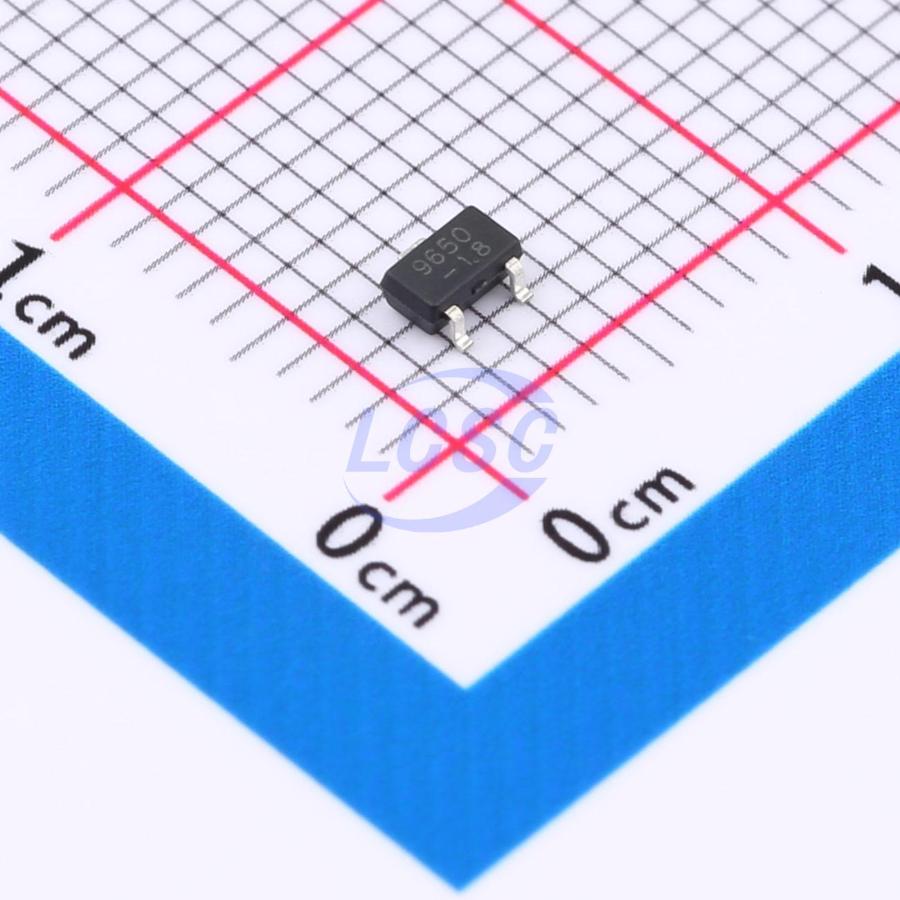

SL9650M18SC
1.8V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3ROHS CompliantActive
Low Dropout Regulators
- Manufacturer
- Slkor
- Manufacturer part #
- SL9650M18SC
- Store part #
- C7543303
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,495 in stock
#C7543303
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.27 | ₹51.35 |
| 50+ | ₹8.11 | ₹405.50 |
| 150+ | ₹7.04 | ₹1,056.00 |
| 500+ | ₹6.23 | ₹3,115.00 |
| 3,000+ | ₹5.58 | ₹16,740.00 |
| 6,000+ | ₹5.27 | ₹31,620.00 |
5 × ₹10.27
₹51.35
excl. GST
₹60.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL9650M18SC
₹51.35 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 600mA
- Operating Voltage
- 7V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The SL9650 Series is a low dropout, positive linear regulator with very low quiescent current. It can supply 600mA output current with a input range from 1.7V to 7V, which makes it suitable for all kinds of applications. SL9650 Series use advanced CMOS technology to achieve very low dropout voltage (300mV @600mA). Fast structural design achieves 75dB PSRR at 1kHz while still maintaining a small 50uA quiescent current. Trimming technique is used to guarantee output voltage accuracy within ±2% (Fixed Output); ±1% (Adjustable Output). SL9650 Series provides full fault protection including current limit, short circuit protection and thermal shutdown protection.
Applications
- portable applications requiring minimum board space and smallest components
