SlkorDatasheet (PDF)

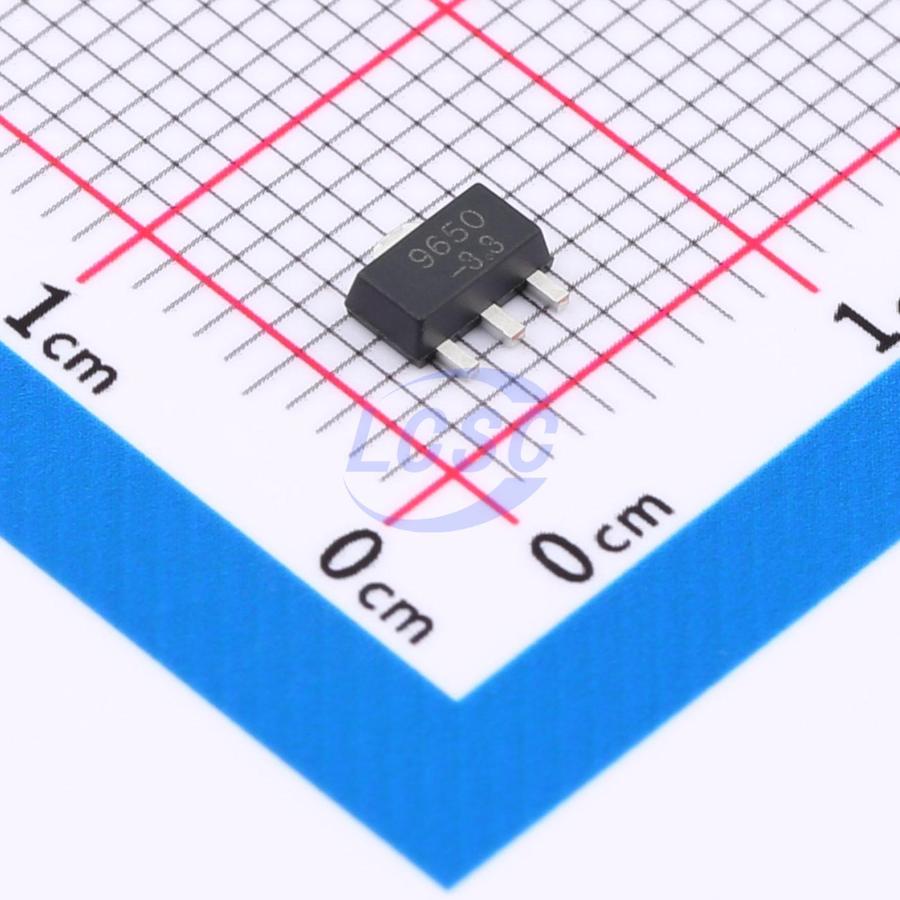

SL9650M33SQ
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS CompliantActive
Low Dropout Regulators
- Manufacturer
- Slkor
- Manufacturer part #
- SL9650M33SQ
- Store part #
- C7543310
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,535 in stock
#C7543310
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.45 | ₹62.25 |
| 50+ | ₹9.84 | ₹492.00 |
| 150+ | ₹8.55 | ₹1,282.50 |
| 1,000+ | ₹7.57 | ₹7,570.00 |
| 2,000+ | ₹6.79 | ₹13,580.00 |
| 5,000+ | ₹6.39 | ₹31,950.00 |
5 × ₹12.45
₹62.25
excl. GST
₹73.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SL9650M33SQ
₹62.25 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 600mA
- Operating Voltage
- 7V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.136 g
Overview
The SL9650 Series is a low dropout, positive linear regulator with very low quiescent current. It can supply 600mA output current with a input range from 1.7V to 7V, which makes it suitable for all kinds of applications. SL9650 Series use advanced CMOS technology to achieve very low dropout voltage (300mV @600mA). Fast structural design achieves 75dB PSRR at 1kHz while still maintaining a small 50uA quiescent current. Trimming technique is used to guarantee output voltage accuracy within ±2% (Fixed Output); ±1% (Adjustable Output). SL9650 Series provides full fault protection including current limit, short circuit protection and thermal shutdown protection.
Applications
- portable applications requiring minimum board space and smallest components
