SLD8S22A
35.5VC Clamp 197A Ipp TVS DIODE SMD
SMTO-263ROHS3 CompliantActive
TVS DIODE 22VWM 35.5VC SMD
- Manufacturer
- Littelfuse
- Manufacturer part #
- SLD8S22A
- Store part #
- C720174
- Package / case
- SMTO-263
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C720174
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹196.57 | ₹196.57 |
| 10+ | ₹192.44 | ₹1,924.40 |
| 30+ | ₹189.61 | ₹5,688.30 |
| 100+ | ₹186.57 | ₹18,657.00 |
1 × ₹196.57
₹196.57
excl. GST
₹231.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel

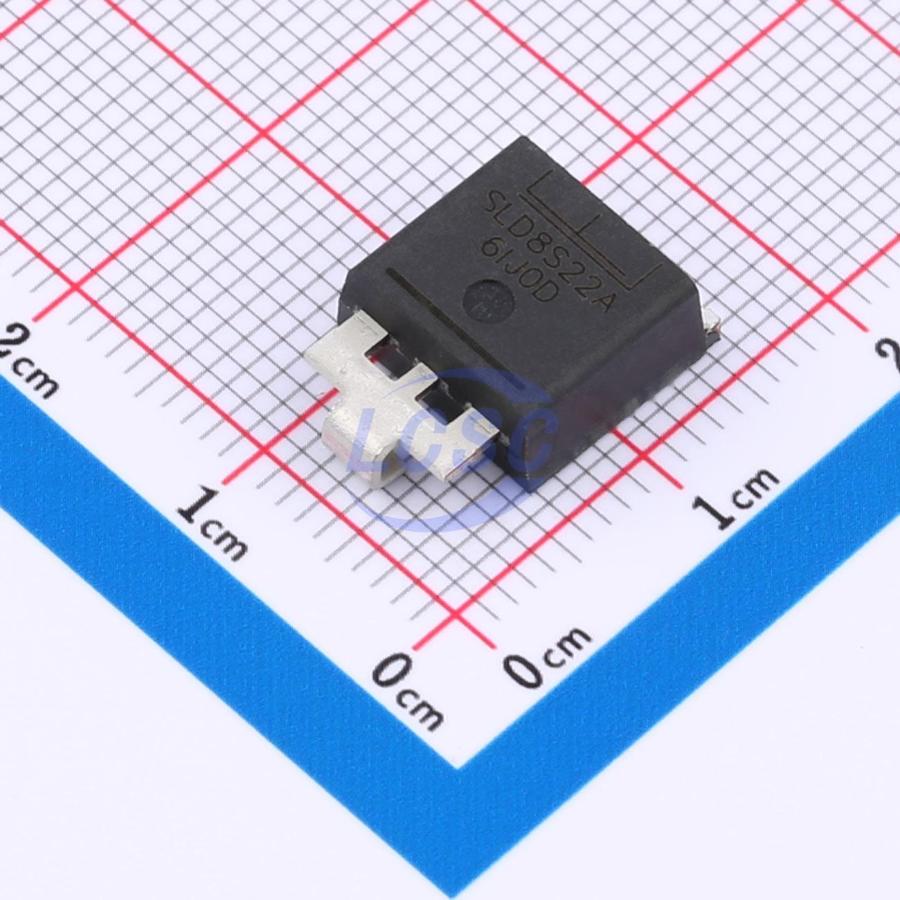

SLD8S22A
₹196.57 for 1 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 197A
- Peak Pulse Power Dissipation (Ppp)
- 7kW
- Number of Channels
- 1
- Voltage - Breakdown
- 24.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.55 g
Overview
The SLD8S Series TVS Diode is housed in a SMTO-263 package with lead modifcations. It is designed to protect sensitive electronics against lightning and inductive load switching voltage transient events for severe Automotive Load Dump applications.
Applications
- Inductive Load Switching - Alternator Load Dump
Key features
- AEC-Q101 qualifed
- SMTO-263 package, and foot print is compatible to industrial popular DO218AB package
- Meet ISO7637-2 5a/5b protection and ISO16750 load dump test (refer to APP note for details)
- Glass passivated chip junction in modifed TO263 package
- ESD protection of data lines in accordance with IEC 61000-4-2, 30kV(Air), 30kV(Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Low incremental surge resistance
- UL Recognized compound meeting fammability rating V-0
- Meets MSL level 1, per J-STD-020, LF maximun peak of 260°C
- For surface mounted applications to optimize board space
- Low profle package
- High temperature to refow soldering guaranteed: 260°C/ 10sec at terminals
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb- free and the terminal fnish material is tin (Sn) (IPC/ JEDEC J-STD-609A.01)
