LittelfuseDatasheet (PDF)

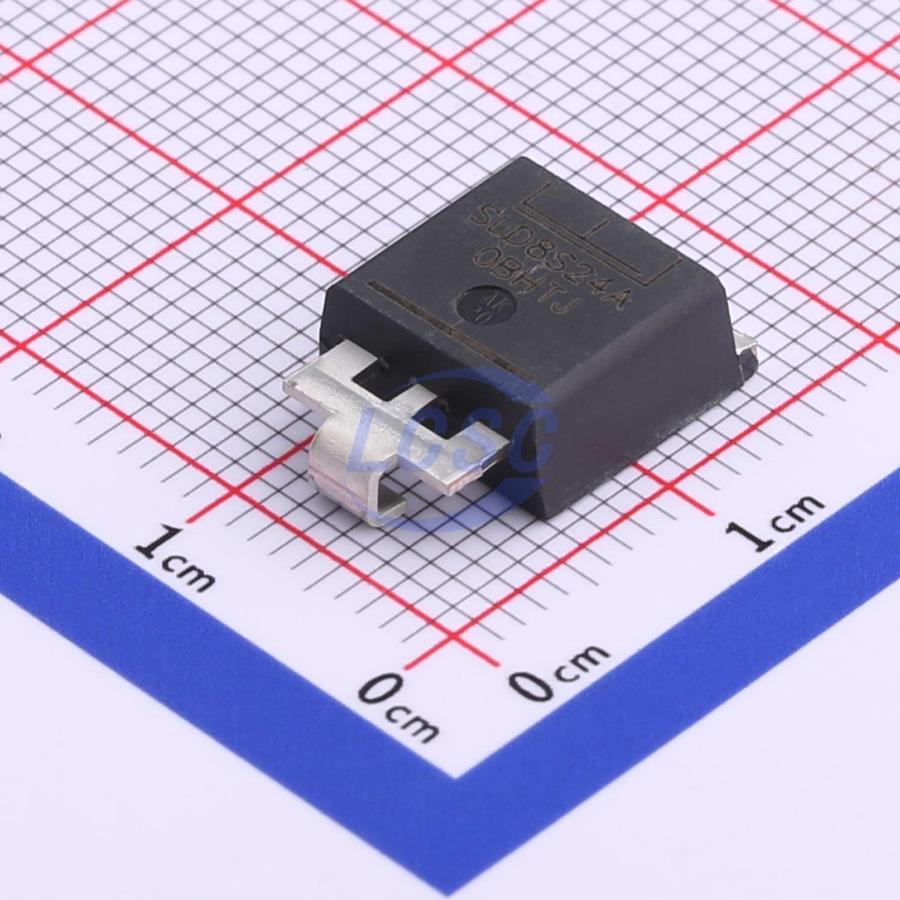

SLD8S24A
38.9VC Clamp 180A Ipp TVS DIODE SMD
SMTO-263ROHS3 CompliantActive
TVS DIODE 24VWM 38.9VC SMD
- Manufacturer
- Littelfuse
- Manufacturer part #
- SLD8S24A
- Store part #
- C720173
- Package / case
- SMTO-263
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C720173
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹135.63 | ₹678.15 |
| 50+ | ₹132.37 | ₹6,618.50 |
| 150+ | ₹130.41 | ₹19,561.50 |
| 500+ | ₹128.45 | ₹64,225.00 |
5 × ₹135.63
₹678.15
excl. GST
₹800.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
SLD8S24A
₹678.15 for 5 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 180A
- Peak Pulse Power Dissipation (Ppp)
- 7kW
- Number of Channels
- 1
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.614 g
Overview
The SLD8S Series TVS Diode is housed in a SMTO-263 package with lead modifcations. It is designed to protect sensitive electronics against lightning and inductive load switching voltage transient events for severe Automotive Load Dump applications.
Applications
- Inductive Load Switching - Alternator Load Dump
Key features
- AEC-Q101 qualifed
- SMTO-263 package, and foot print is compatible to industrial popular DO218AB package
- Meet ISO7637-2 5a/5b protection and ISO16750 load dump test (refer to APP note for details)
- Glass passivated chip junction in modifed TO263 package
- ESD protection of data lines in accordance with IEC 61000-4-2, 30kV(Air), 30kV(Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Low incremental surge resistance
- UL Recognized compound meeting fammability rating V-0
- Meets MSL level 1, per J-STD-020, LF maximun peak of 260°C
- For surface mounted applications to optimize board space
- Low profle package
- High temperature to refow soldering guaranteed: 260°C/ 10sec at terminals
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb- free and the terminal fnish material is tin (Sn) (IPC/ JEDEC J-STD-609A.01)
